No Engine Braking In 2nd

Check 2nd coast modulator valve and 2nd coast brake.

CLUTCH & BRAKE APPLICATION

Selector Lever Position

Elements In Use

"D" (Drive)

1st Gear

Forward Clutch, OD Direct Clutch, OD One-Way Clutch & No. 2 One-Way Clutch

2nd Gear

Forward Clutch, OD Direct Clutch, OD One-Way Clutch, No. 1 One-Way Clutch & 2nd Brake

3rd Gear

Forward Clutch, Direct Clutch, OD Direct Clutch, OD One-Way Clutch & 2nd Brake

Overdrive

Direct Clutch, Forward Clutch, OD Brake & 2nd Brake

"2" (Second)

1st Gear

Forward Clutch, OD One-Way Clutch, OD Direct Clutch & No. 2 One-Way Clutch

2nd Gear

Forward Clutch, OD Direct Clutch, OD One-Way Clutch, 2nd Brake, 2nd Coast Brake & No. 1 One-Way Clutch

3rd Gear ⁽¹⁾

Forward Clutch, Direct Clutch, Direct Clutch, OD One-Way Clutch & 2nd Brake

"L" (Low)

1st Gear

Forward Clutch, OD Direct Clutch, OD One-Way Clutch, & 1st & Reverse Brake & No. 2 One-Way Clutch

2nd Gear ⁽²⁾

Forward Clutch, OD Direct Clutch, OD One-Way Clutch, No. 1 One-Way Clutch, 2nd Brake & 2nd Coast Brake

"R" (Reverse)

Direct Clutch, OD Direct Clutch & 1st & Reverse Brake

"N" (Neutral)

OD Direct Clutch

"P" (Park)

OD Direct Clutch

⁽¹⁾	Downshift only in 3rd gear for "2" position.

⁽²⁾	Downshift only in 2nd gear for "L" position. Upshift does not occur.

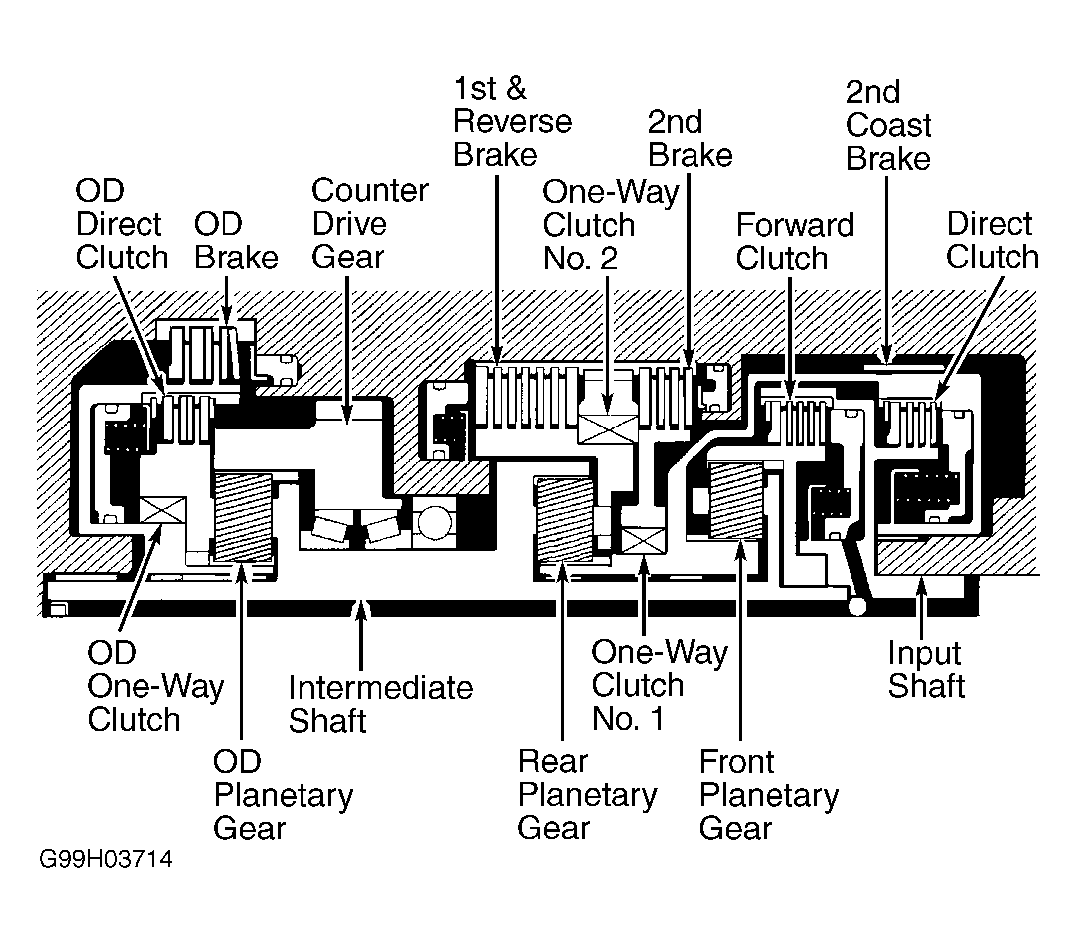

Fig 1: Identifying Transaxle Component Locations
