Oil Pump Disassembly & Reassembly: Reassembly

Install NEW oil seal. Seal is properly installed when it is flush with outer edge of pump body. Install driven gear and drive gear. Ensure identifying marks are facing upward. Install stator shaft on pump body. Align bolt holes. Install stator shaft-to-oil pump body bolts. Tighten bolts to specification. See TORQUE SPECIFICATIONS .
Align tab of washer with hollow of pump body. Install thrust washer. Install 2 oil seal rings on oil pump. DO NOT spread ring ends more than required for installation. Ensure oil seal rings move freely. Turn drive gear with screwdriver to ensure smooth rotation.

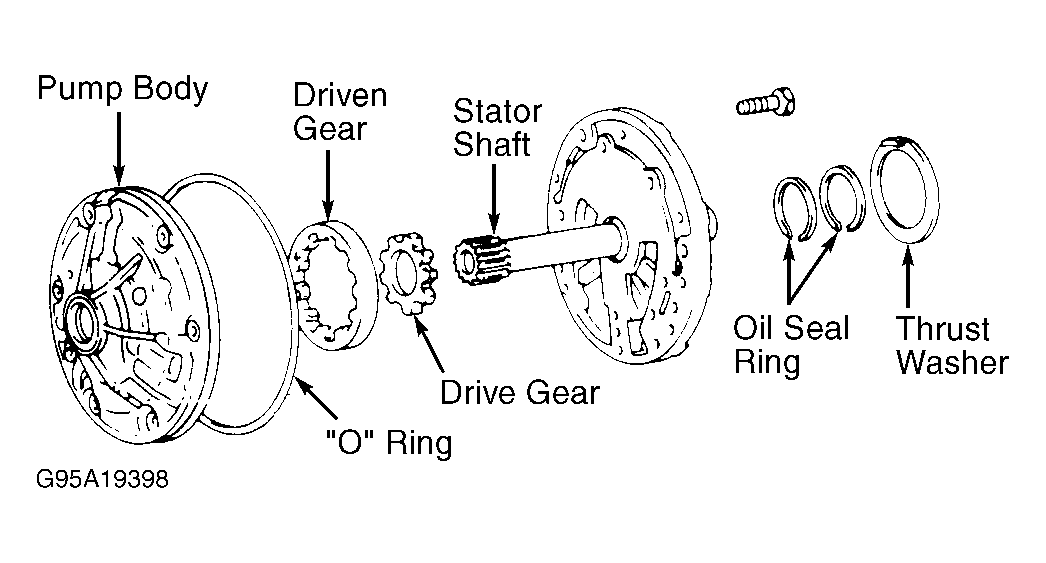

Fig 1: Exploded View Of Oil Pump

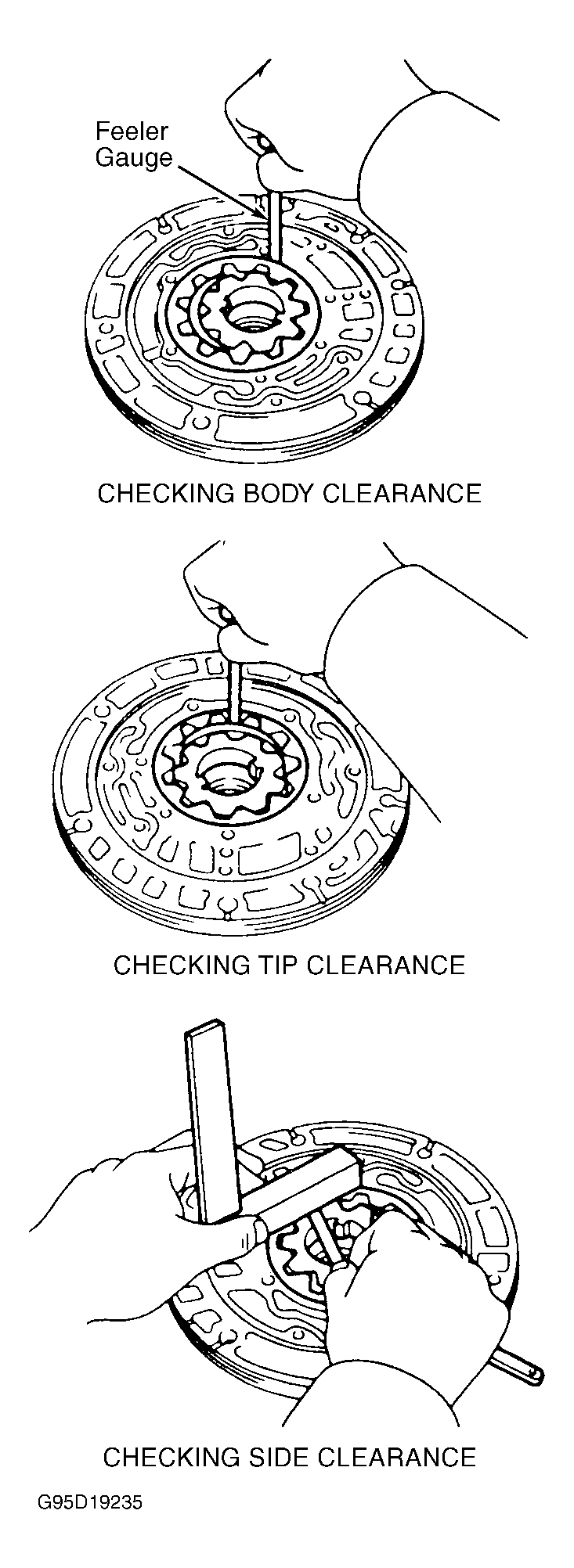

Fig 2: Measuring Oil Pump Clearances
