Front Planetary Gear Disassembly & Reassembly: Reassembly

Position flange into ring gear. Using a screwdriver, install snap ring. See Fig 2. Install shaft snap ring on sun gear. Install sun gear input drum on sun gear. Install shaft snap ring. Install thrust washer on sun gear input drum. While turning hub clockwise, slide one-way clutch on sun gear. Recheck operation of one-way clutch.

Fig 1: Checking No. 1 One-Way Clutch Operation

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

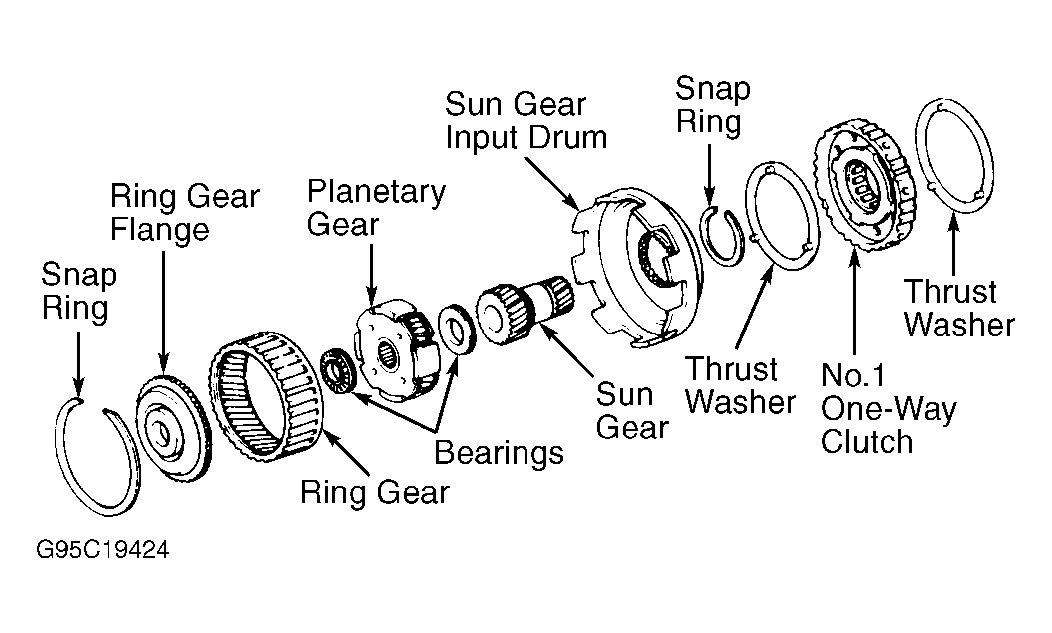

Fig 2: Exploded View Of Front Planetary Gear

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Measuring Planetary Pinion Gear Thrust Clearance

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
