SLN Solenoid

ECT ECU determines optimum operating pressure according to signals from throttle position sensor, vehicle speed sensor and direct clutch speed sensor. ECT ECU controls current flow to SLN solenoid to control hydraulic pressure acting on accumulator control valve. SLN solenoid is located on transaxle valve body. See Figure.

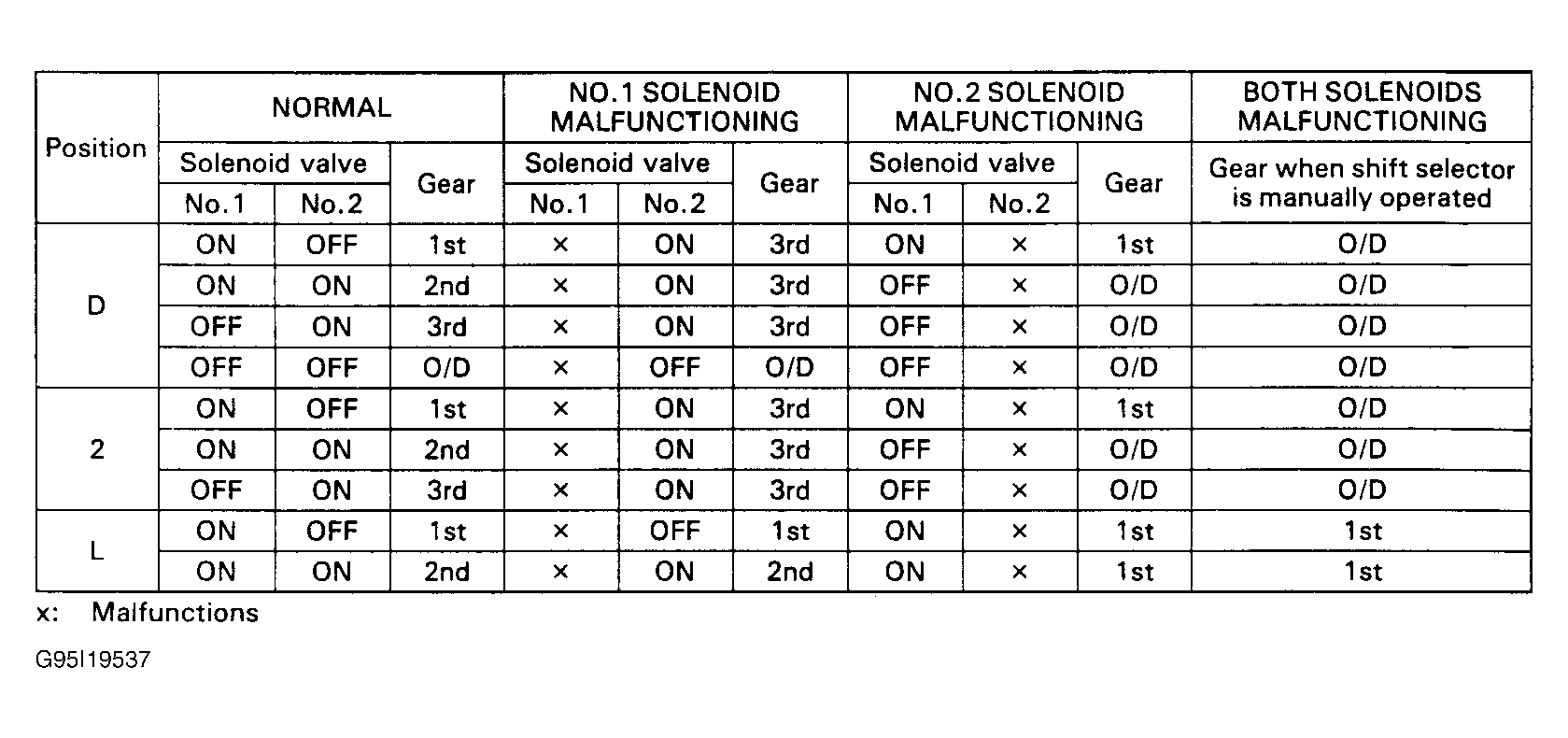

Fig 1: Checking No. 1 & No. 2 Solenoid Operation
G95I19537Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
