Rear Suspension (Supra)

Check tires for wear and improper inflation. Ensure lengths of left and right No. 1 and No. 2 lower suspension arms are equal. See Fig 1. Check camber of both rear wheels. See ALIGNMENT SPECIFICATIONS . If camber is not within specification, adjust camber by rotating adjuster cams.

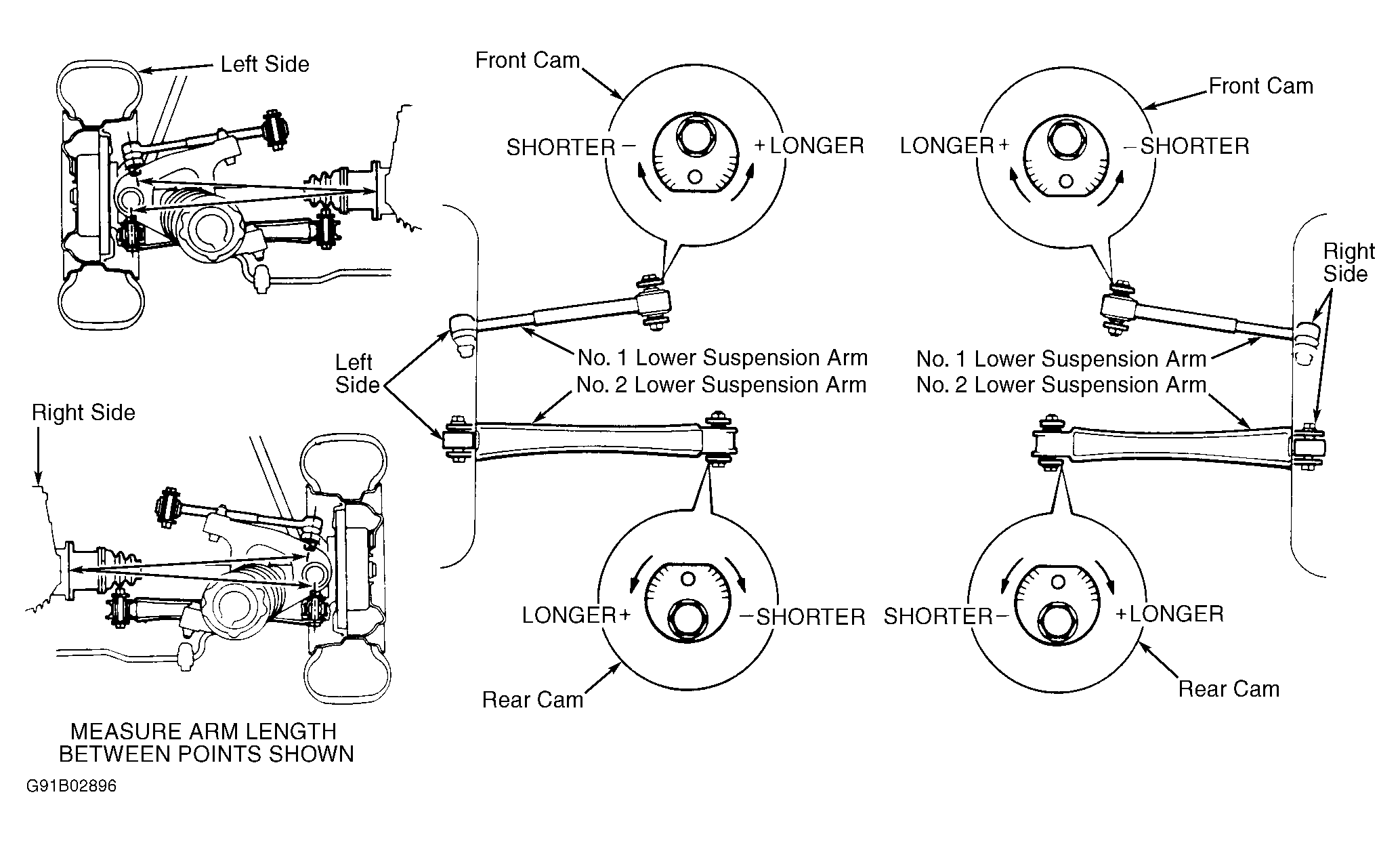

Fig 1: Identifying Rear Camber & Toe Adjuster Cams (Supra)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
