Side Air Bag Sensor Assembly: Removal

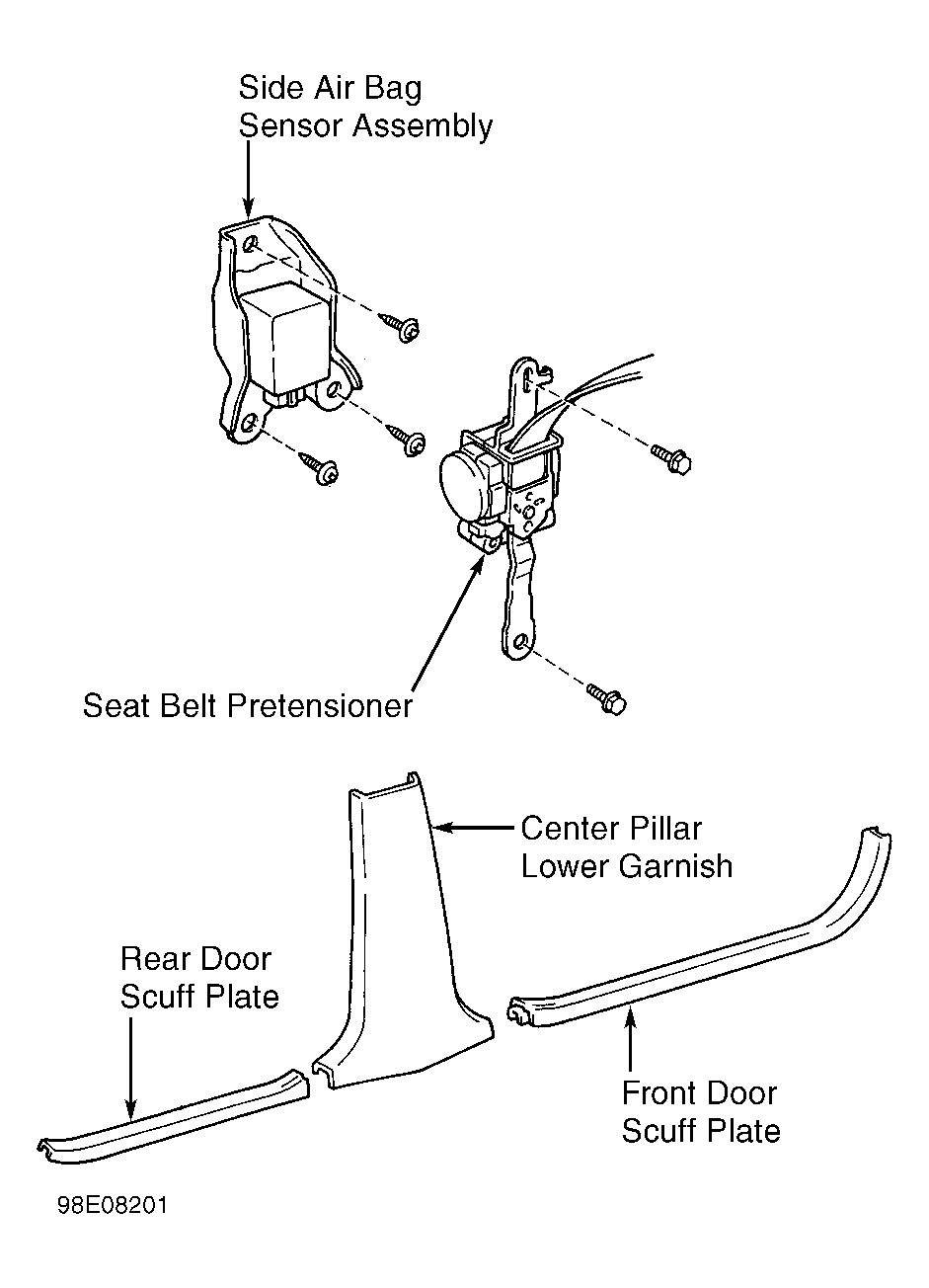

- Before proceeding, see SERVICE PRECAUTIONS . Turn ignition switch to LOCK position. Disconnect and shield negative battery cable. Wait at least 90 seconds. Remove front and read door scuff plates. See Fig 1. Remove center pillar lower garnish. Disconnect pretensioner connector and retractor switch connectors.
- Remove 2 bolts and pretensioner/retractor assembly. Disconnect side air bag sensor assembly connector. Using Torx wrench (T40), remove 3 screws and side air bag sensor assembly.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
