Removal (Floor Shift)

Before proceeding, see SERVICE PRECAUTIONS . Turn ignition switch to LOCK position. Disconnect and shield negative battery cable. Wait at least 90 seconds. Air bag sensor is located on floor under rear console box. See Fig 1. Remove front seat, upper console panel and rear console panel.
Remove center cluster finish panel, lower finish panel assembly and lower No. 2 finish panel. Remove glove box door and glove box. Remove front console box. Disconnect air bag sensor electrical connector. Lift up carpet and remove 4 Torx screws and air bag sensor assembly.

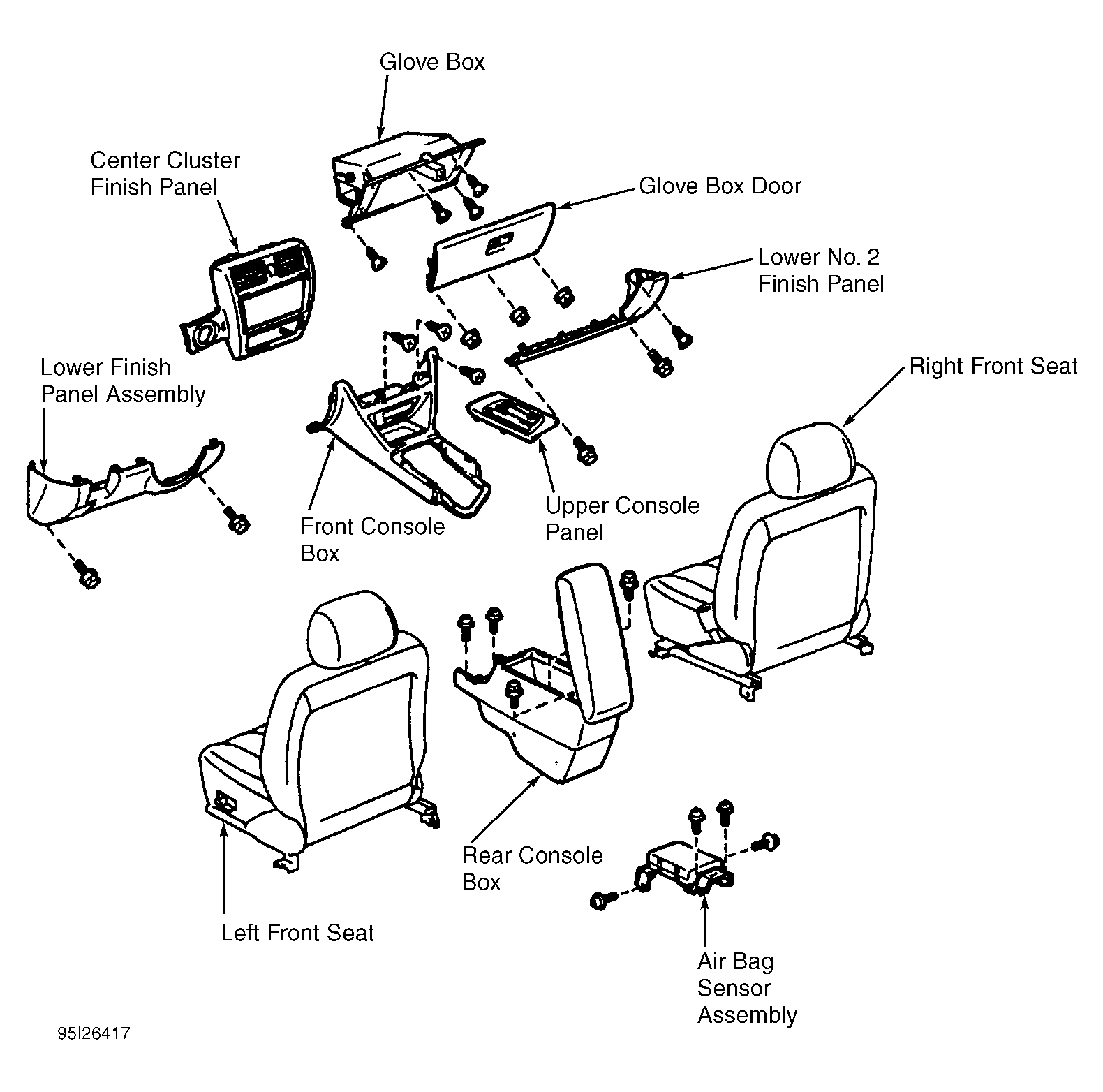

Fig 1: Removing Air Bag Sensor Assembly (With Floor Shift)
