Removal (Column Shift)

Before proceeding, see SERVICE PRECAUTIONS . Turn ignition switch to LOCK position. Disconnect and shield negative battery cable. Wait at least 90 seconds. Air bag sensor is located under on floor below finish panel. See Fig 1.
Remove front seat and center seat belt. Remove center cluster finish panel, lower finish panel assembly and lower No. 2 finish panel. Remove glove box door and glove box.
Remove finish panel, center pillar garnish and cowl side trim. Remove front door inside scuff plate. Remove protector. Peel back carpet and disconnect air bag sensor electrical connector. Remove 4 Torx screws and air bag sensor assembly. Remove air bag sensor.

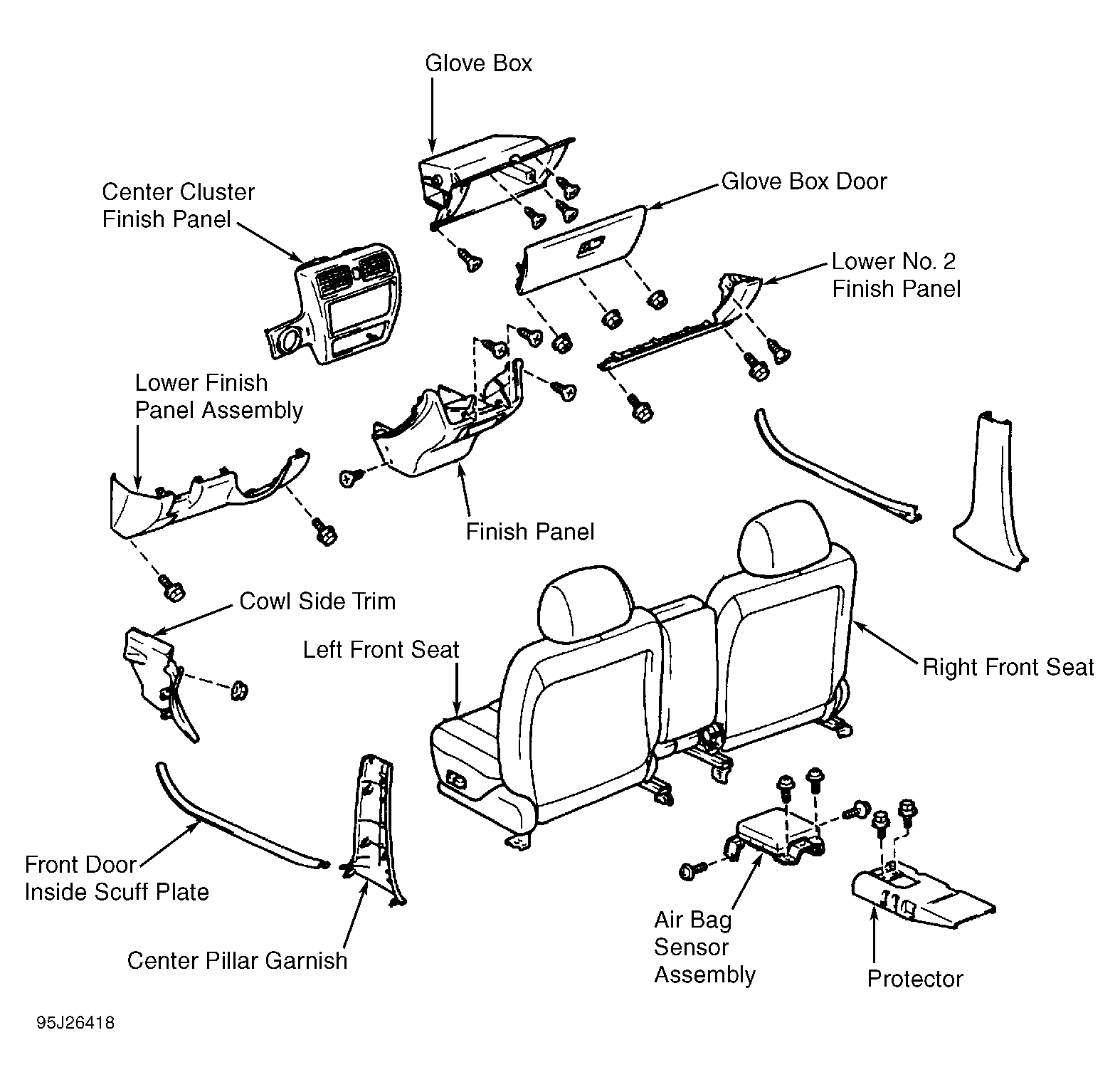

Fig 1: Removing Air Bag Sensor Assembly (With Column Shift)
