Heated Oxygen Sensor: Sienna

  1. Three heated oxygen sensors are used, one on each exhaust manifold, and one on exhaust pipe, behind catalytic converter. Heated oxygen sensor on rear (firewall side) exhaust manifold may be referred to as bank No. 1 sensor No. 1. Heated oxygen sensor on front (radiator side) exhaust manifold may be referred to as bank No. 2 sensor No. 1. Heated oxygen sensor on exhaust pipe behind catalytic converter may be referred to as bank No. 1 sensor No. 2.
  2. To test the heater on the heated oxygen sensor, disconnect electrical connector from appropriate heated oxygen sensor and note heated oxygen sensor terminals. See Fig 1 and Fig 2.
    NOTE: Electrical connector for heated oxygen sensor on exhaust pipe behind catalytic converter is located below passenger's side front seat, underneath the carpet and contains a Dark Gray 4-pin electrical connector.
  3. Using ohmmeter, check resistance between +B and HT terminals on electrical connector. See Fig 1 and Fig 2. Replace heated oxygen sensor if resistance is not 11-16 ohms at 68°F (20°C).
  4. If problem exists in heated oxygen sensor, heater or wiring circuit, a Diagnostic Trouble Code (DTC) may be stored in the Engine Control Module (ECM). For diagnosis of DTC, see appropriate TESTS W/CODES article.

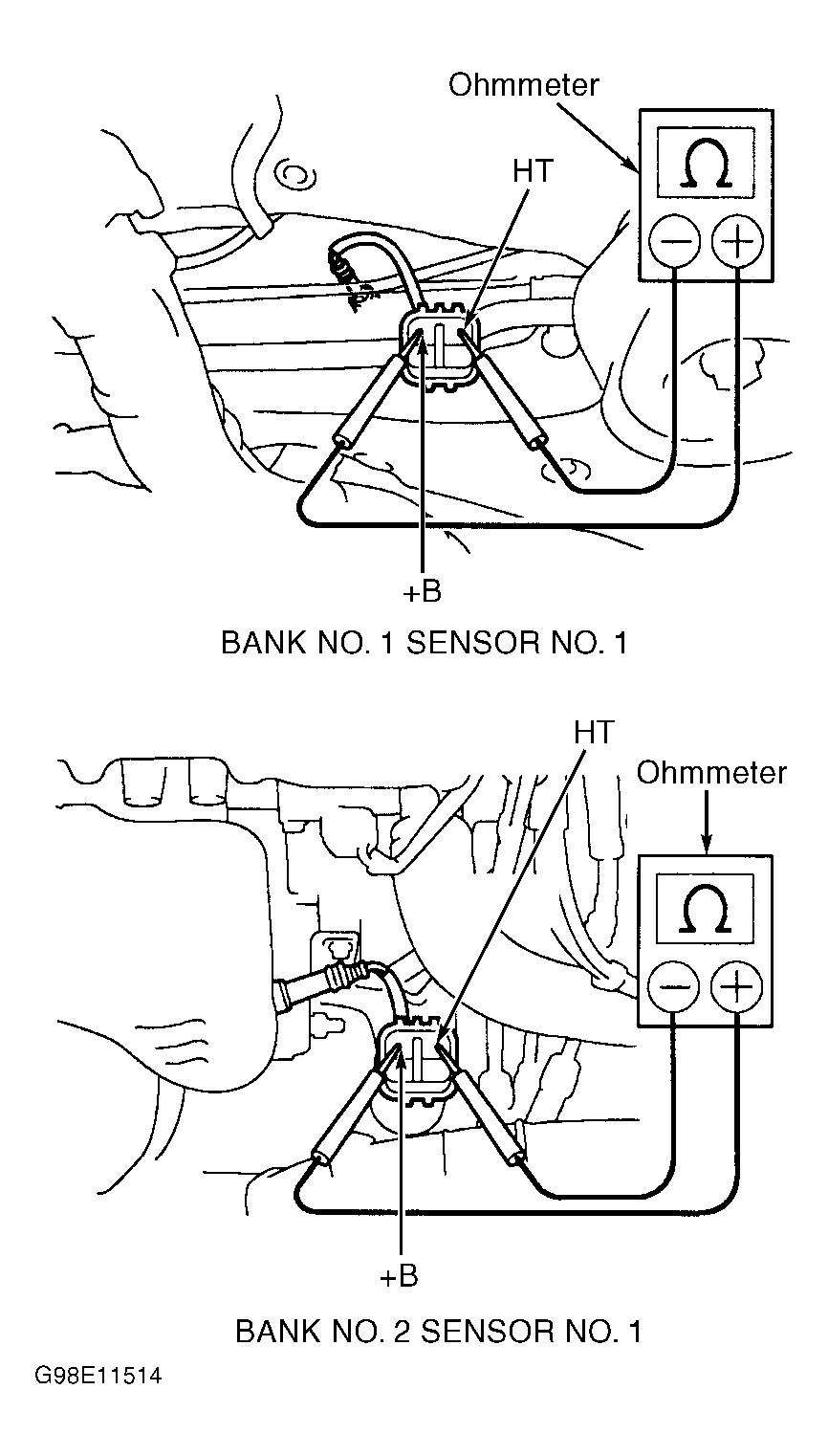

Fig 1: Heater On Heated Oxygen Sensor At Exhaust Manifold (Sienna) Test
G98E11514Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

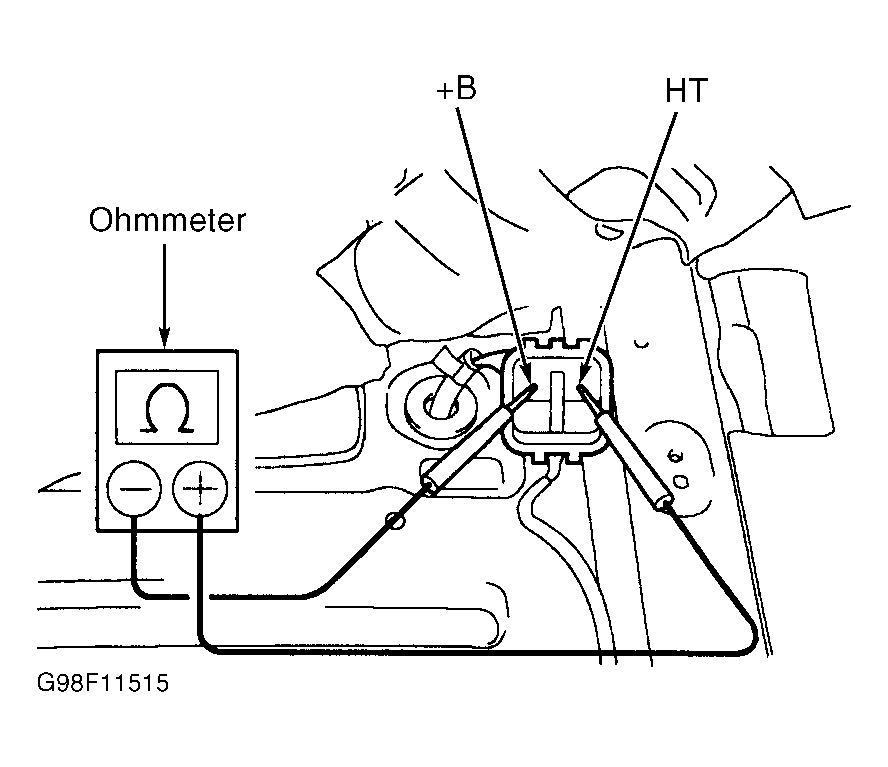

Fig 2: Heater On Heated Oxygen Sensor At Exhaust Pipe (Sienna) Test
G98F11515Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
