Removal & Installation (Avalon, Camry & Sienna)

1. Remove "V" bank cover. See Fig 1-50. Intake air control valve VSV is the front outside VSV on emission control valve set. See Fig 1-50.
2. Disconnect electrical connectors and vacuum lines from vacuum switching valves on emission control valve set. Remove emission control valve set.
3. Remove intake air control valve VSV from emission control valve set. To install, reverse removal procedure.

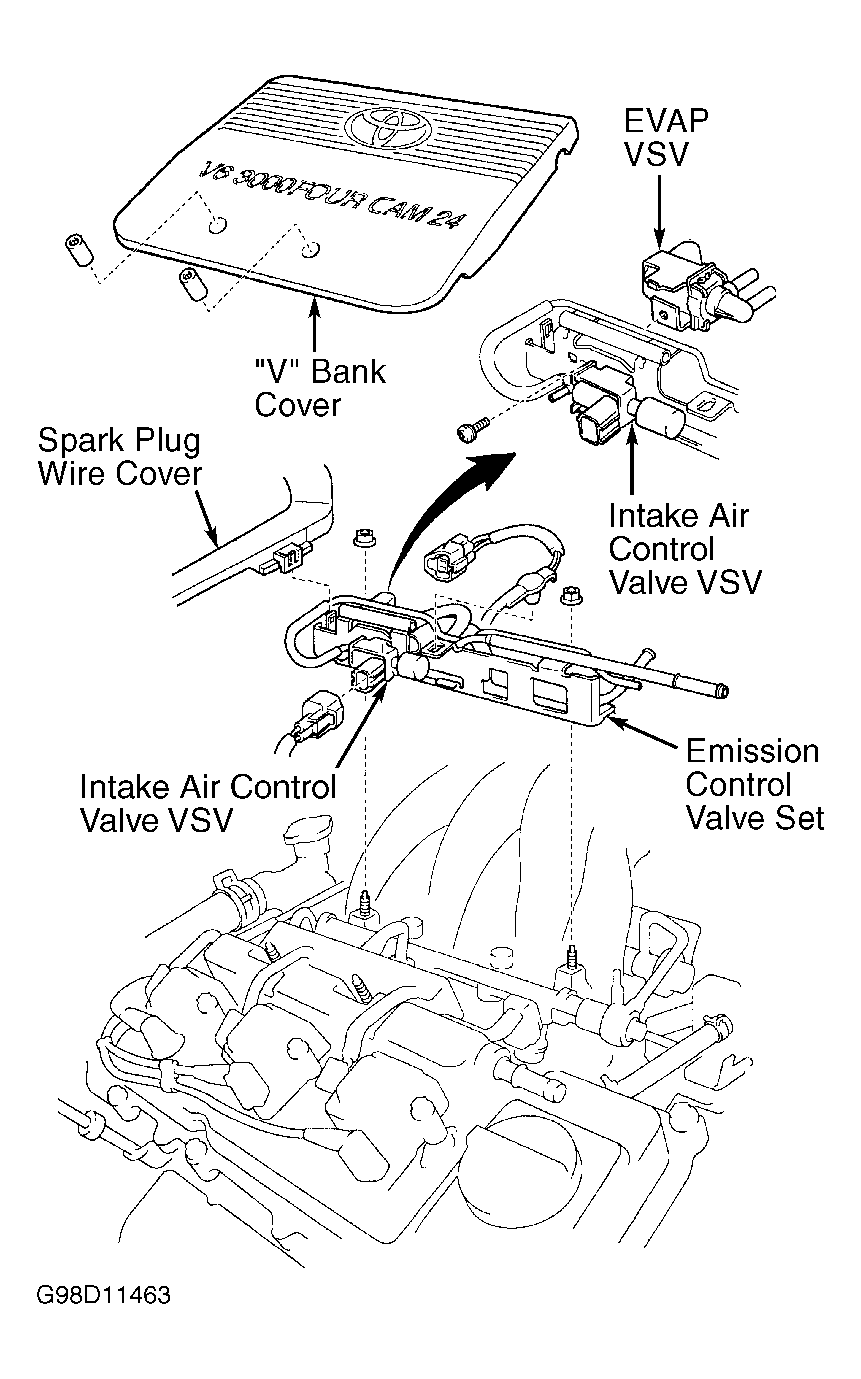

Fig 1: Locating "V" Bank Cover & Various Vacuum (Avalon & Camry) Switching Valves

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Locating "V" Bank Cover & Various Vacuum (Sienna) Switching Valves

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
