Cooling Fan Relay No. 3 (Avalon, Camry, Celica, 1998 Corolla, Paseo, Sienna & Tercel)

Disconnect negative battery cable. Remove cooling fan relay No. 3 from fuse/relay box. See Figure-Figure . Using an ohmmeter, ensure continuity is as specified between specified terminals. See Fig 1 or Fig 2.
To check relay operation, connect battery voltage and ground to specified terminals of cooling fan relay No. 3. Using an ohmmeter, ensure continuity exists between specified terminals. See Fig 1 or Fig 2 . Replace cooling fan relay No. 3 if defective.

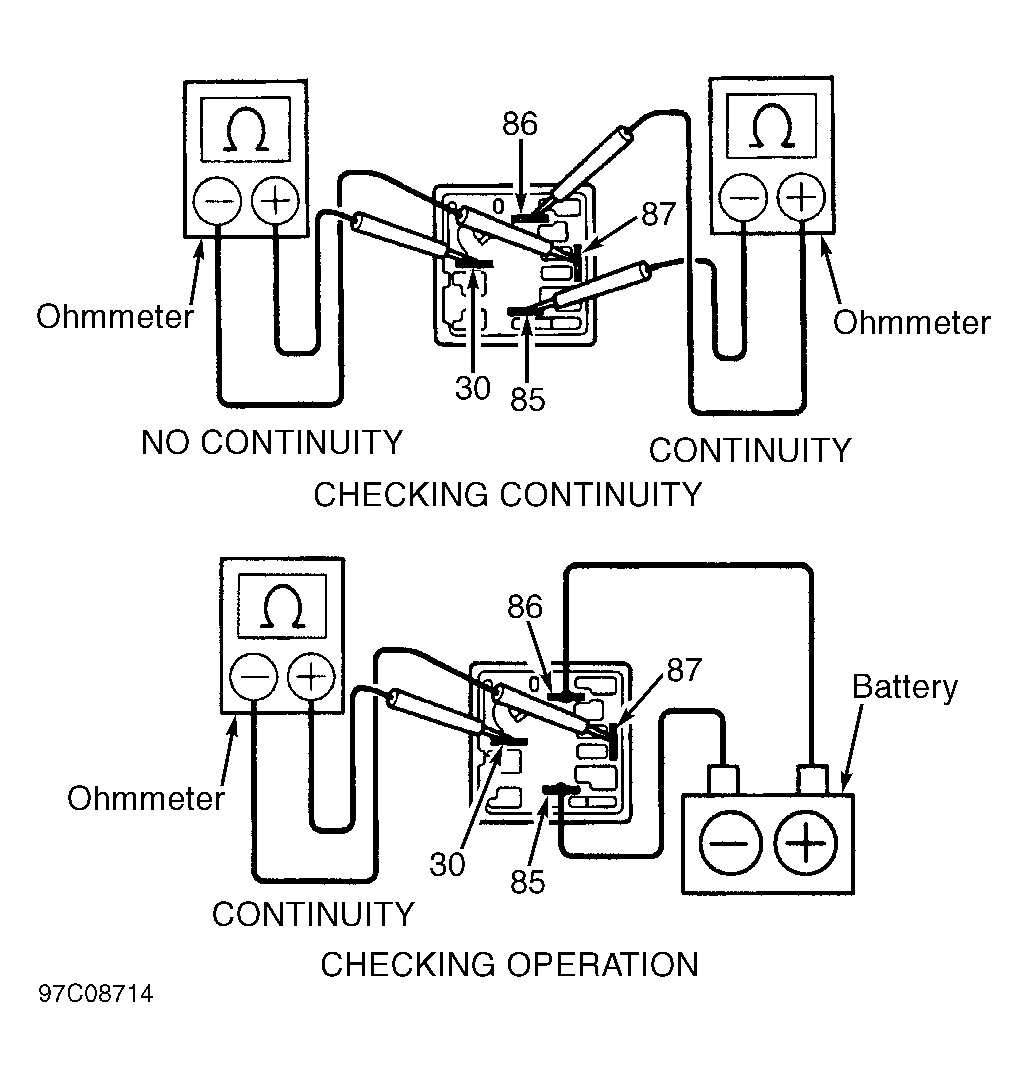

Fig 1: Testing Cooling Fan Relay No. 3 (Avalon, Celica, Paseo & Tercel)

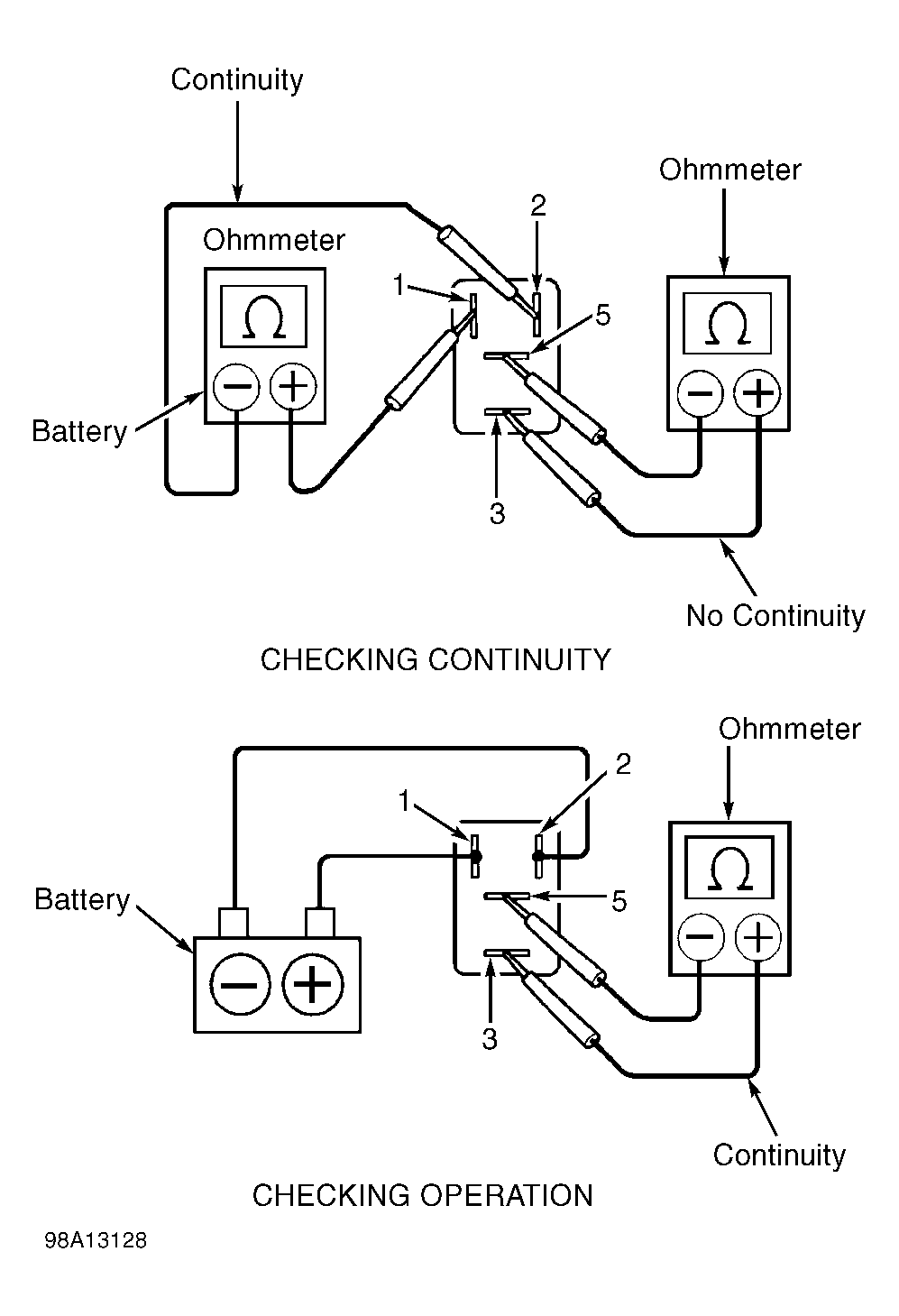

Fig 2: Testing Cooling Fan Relay No. 3 (Camry, 1998 Corolla, & Sienna)
