Cooling Fan Relay No. 2 (Supra Turbo)

  1. Disconnect negative battery cable. Remove cooling fan relay No. 2 from driver's side front corner of engine compartment. See Figure.
    NOTE: Cooling fan relay No. 2 may also be referred to as ABS TRAC relay.
  2. Using an ohmmeter, ensure continuity is as specified between specified terminals. See Fig 1.
  3. To check relay operation, connect battery voltage and ground to specified terminals of cooling fan relay No. 2. Using an ohmmeter, ensure continuity is as specified between specified terminals. See Fig 1. Replace cooling fan relay No. 2 if defective.

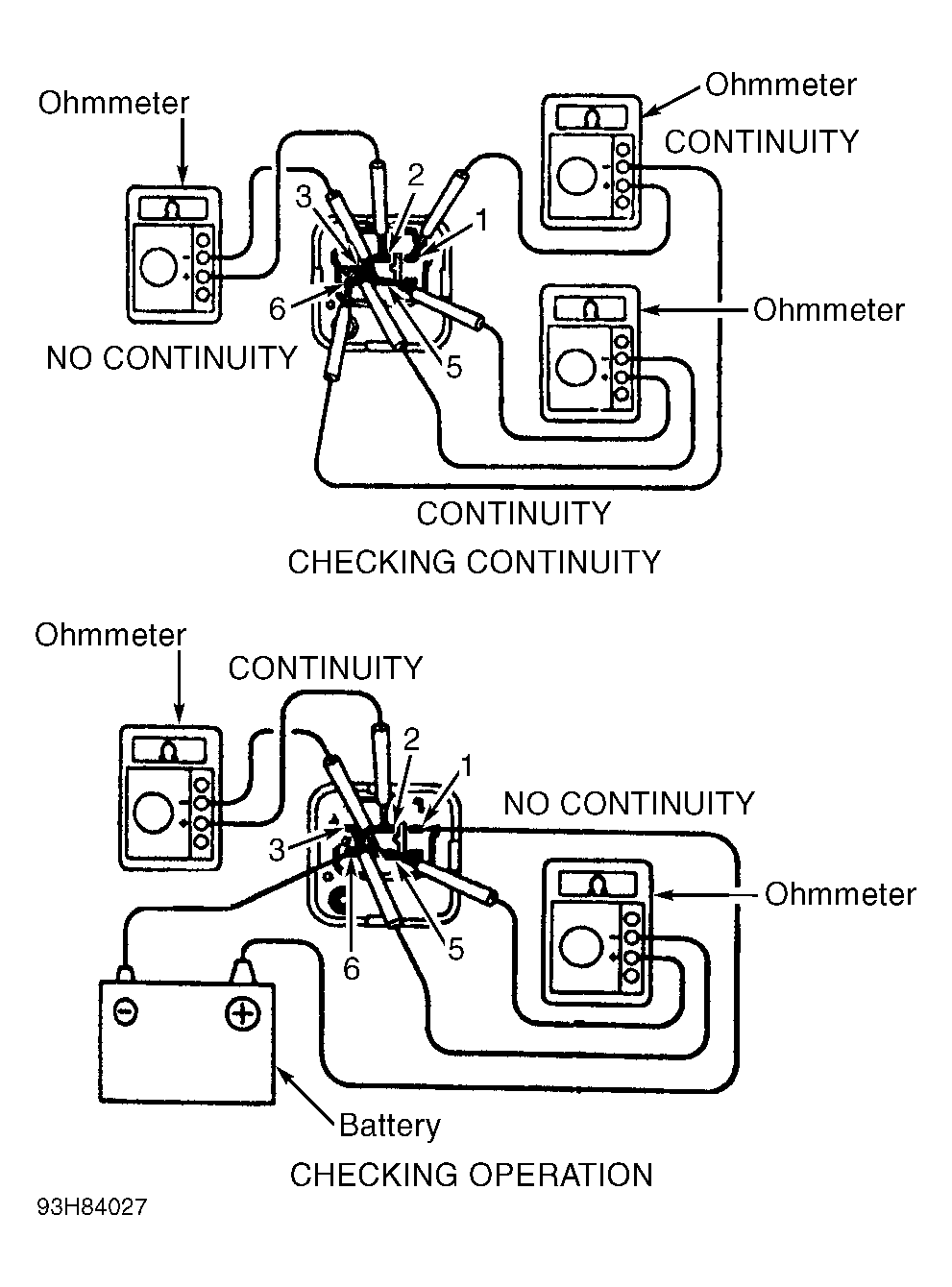

Fig 1: Testing Cooling Fan Relay No. 2 (Supra Turbo)
G93H84027Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
