Cooling Fan Relay No. 2 (Except Supra Turbo)

Disconnect negative battery cable. Remove cooling fan relay No. 2 from fuse/relay box. See Figure-Figure . Using an ohmmeter, ensure continuity is as specified between specified terminals. See Fig 1 or Fig 2 .
To check relay operation, connect battery voltage and ground to specified terminals of cooling fan relay No. 2. Using an ohmmeter, ensure continuity is as specified between specified terminals. See Fig 1 or Fig 2 . Replace cooling fan relay No. 2 if defective.

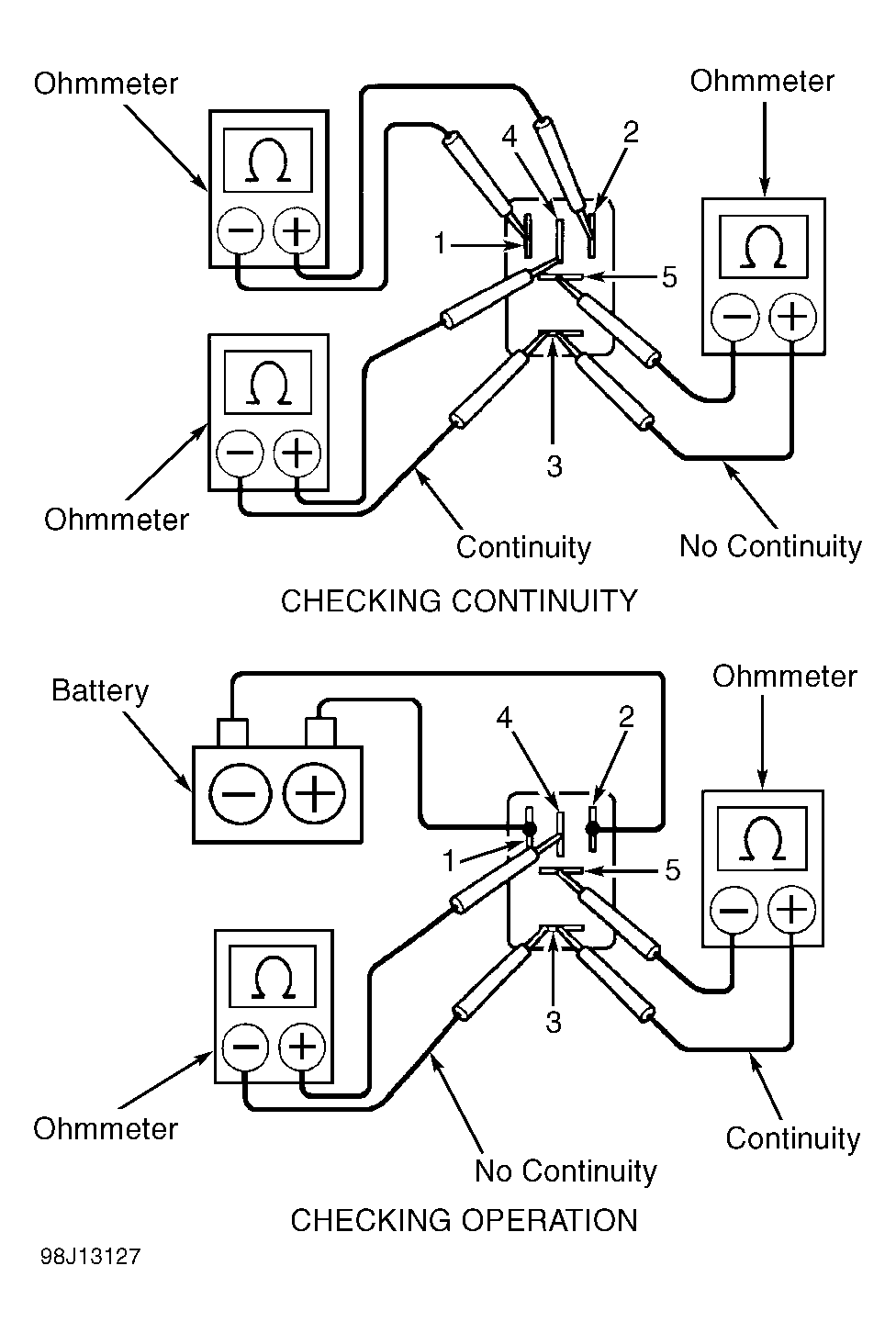

Fig 1: Testing Cooling Fan Relay No. 2 (Except Camry, 1998 Corolla, Sienna & Supra Turbo)

Fig 2: Testing Cooling Fan Relay No. 2 (Camry, 1998 Corolla & Sienna)
