Removal & Installation (Tercel)

Disable air bag system, remove driver's air bag and steering wheel. See AIR BAG RESTRAINT SYSTEMS article. If necessary, remove combination switch from steering column. Remove screws from instrument cluster finish panel. Pull cluster finish panel away clips just enough to disconnect electrical connectors on rear of panel. Remove panel.
Remove instrument cluster retaining screws. Pull cluster outward enough to disconnect wiring harness connectors. Remove instrument cluster. To install, reverse removal procedure. Before installing steering wheel, center spiral cable (if removed). See AIR BAG RESTRAINT SYSTEMS article.

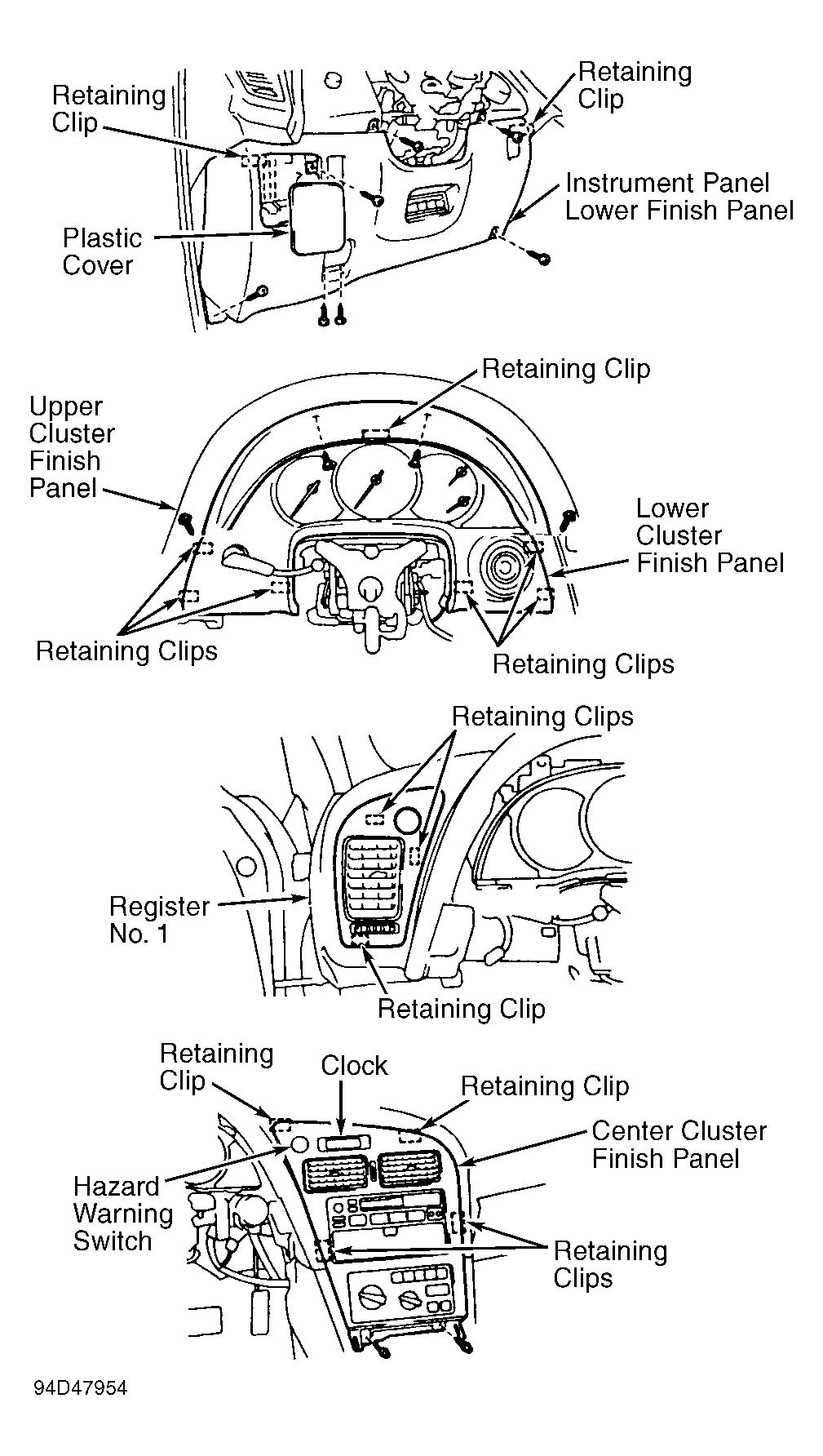

Fig 1: Removing Instrument Cluster (Celica)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Removing Instrument Cluster (Corolla)

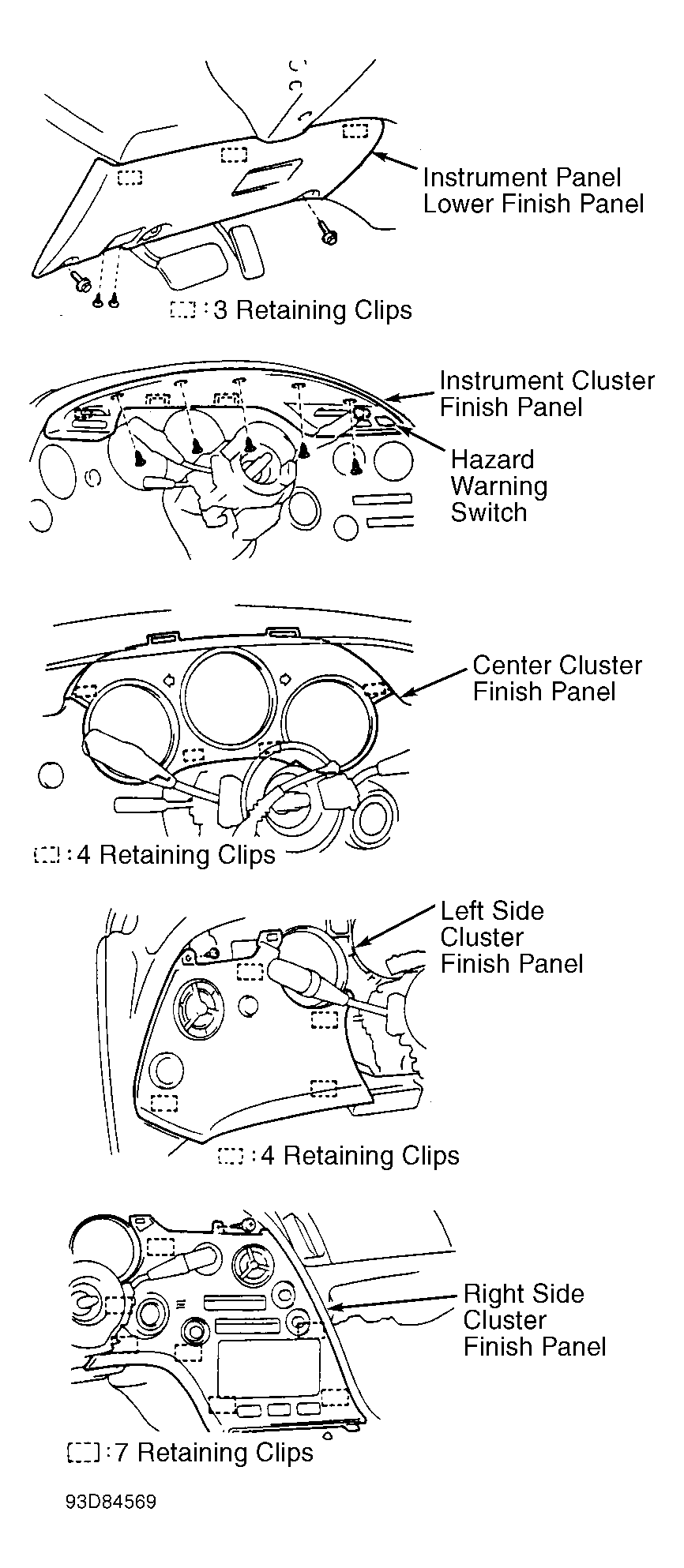

Fig 3: Removing Instrument Cluster (Supra)
