Removal (RAV4)

  1. Close sun roof. Turn ignition off. Remove rear seat. Remove rear floor finish plate. See Figure. Remove rear door scuff plates (4-door only). Remove front and rear interior lights. Remove assist grips. Remove front door scuff plates. Remove sun visors and holders.
  2. Remove rear view mirror. Remove rear outer seat belt floor anchor bolt. Remove rear quarter trim panels. Remove rear seat outer seat belt shoulder anchor bolt. Remove roof side trim panels. Remove roof headliner rear trim. Remove front seat outer seat belt should anchor bolt.

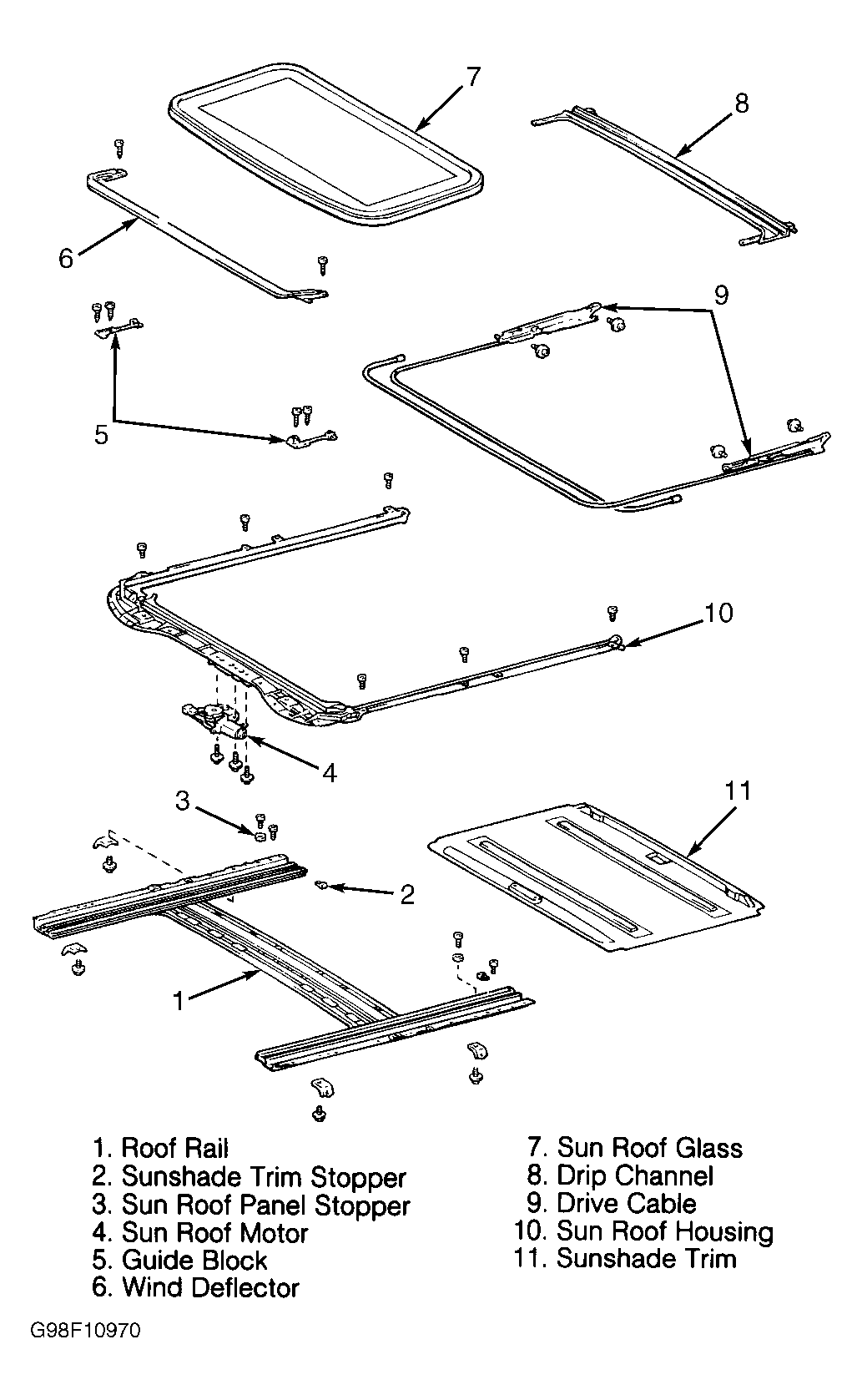

  3. Remove center pillar upper and lower trim panels. Remove front pillar trim panels. Remove headliner. Remove sun roof trim panels. Pull upward on sun roof glass to remove. Remove control relay. Remove sun roof motor. See Figure or Figure . Remove drip channel. Remove wind deflector. Remove sun roof housing.
