Installation (Camry Toyota Motor Mfg. U.S.A.)

NOTE: To ensure proper operation of sun roof, ensure drive cable is in closed position and sun roof drive motor marks are aligned.

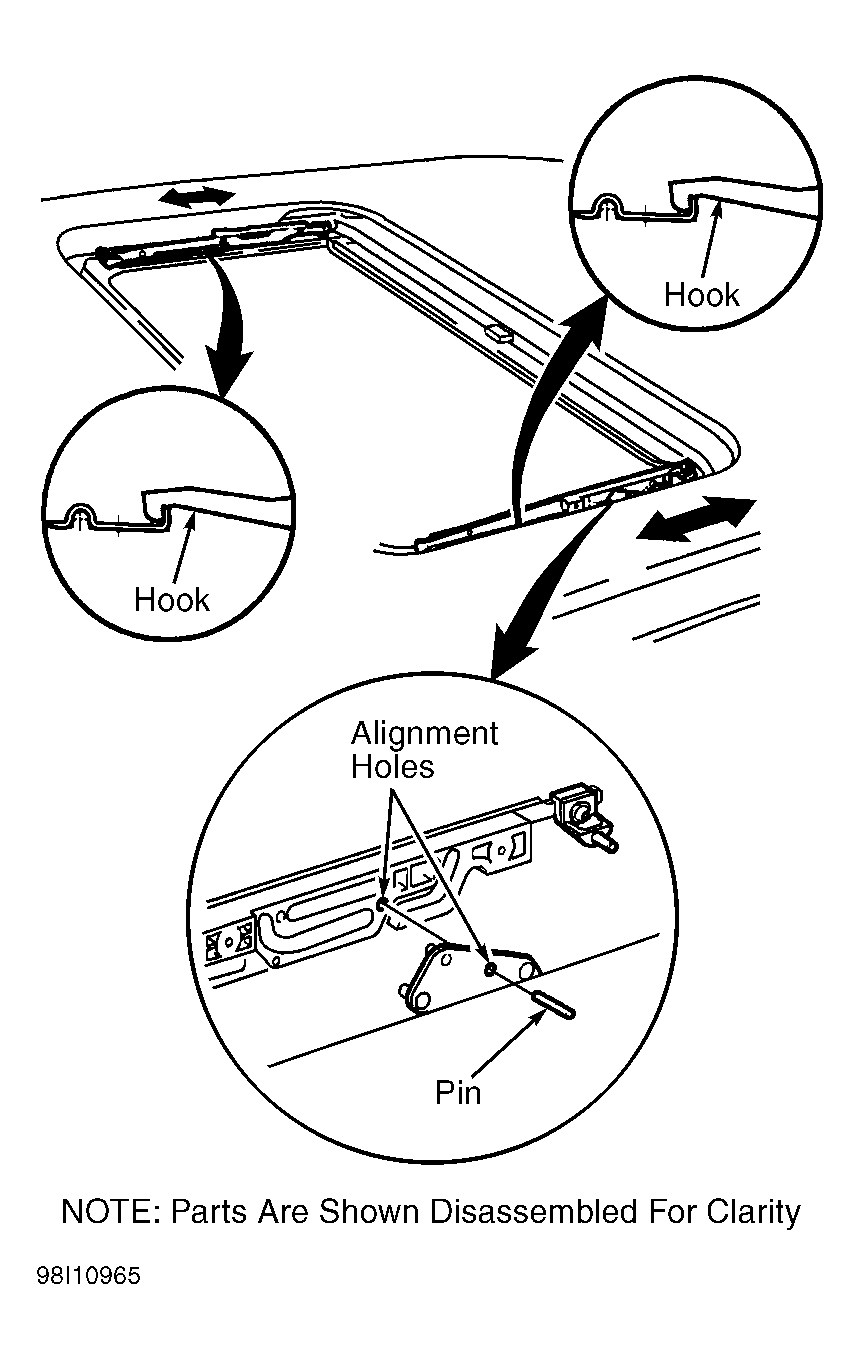

  1. If sun roof housing was disassembled, adjust drive cable to a fully closed and tilted down position. Using a screwdriver, slide left and right cable assemblies forward or backwards to align holes in cable arm and lift arm. Insert a .12" (3 mm) pin to ensure holes are aligned. Ensure hook is positioned as shown. See Figure.
  2. Remove alignment pin. Prior to installing drive motor, use an Allen wrench and align motor housing pointer to gear pointer. See Figure. With motor and sun roof housing installed, cycle assembly once (vent position closed, slide open and slide completely closed).
  3. After cycling assembly closed, ensure alignment holes align. See Figure. If holes are not aligned, repeat procedure. To complete installation, reverse removal procedure.
