Removal (T100)

  1. Disconnect negative battery cable. To access combination switch connector, remove instrument panel lower finish panel under steering column. See INSTRUMENT PANELS article. Remove steering column upper and lower covers. Remove steering wheel. See STEERING WHEEL .

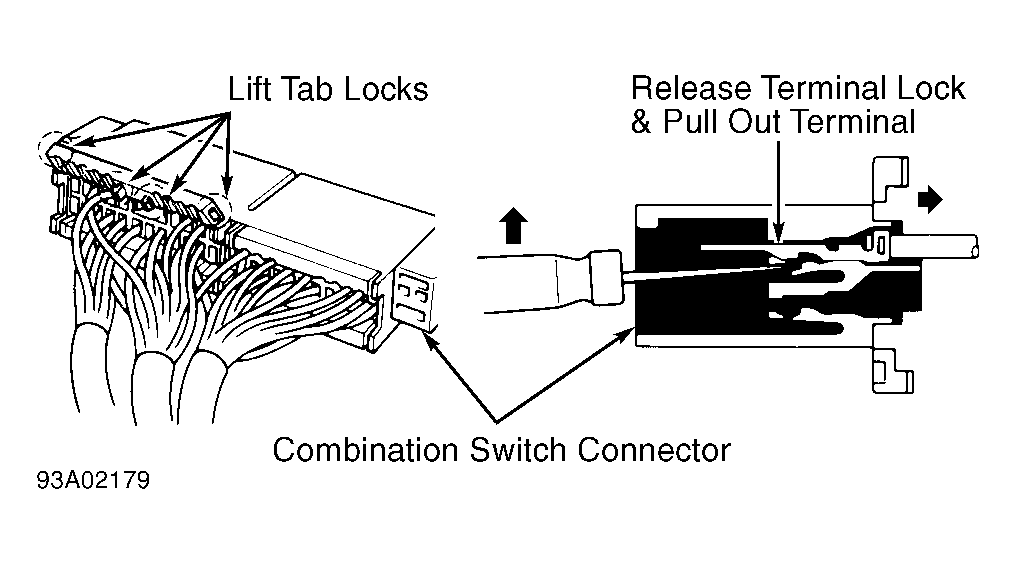

  2. Locate wiper/washer switch wire terminal positions installed into combination switch harness connector. See Figure. Lift tab locks on combination switch connector. See Figure.

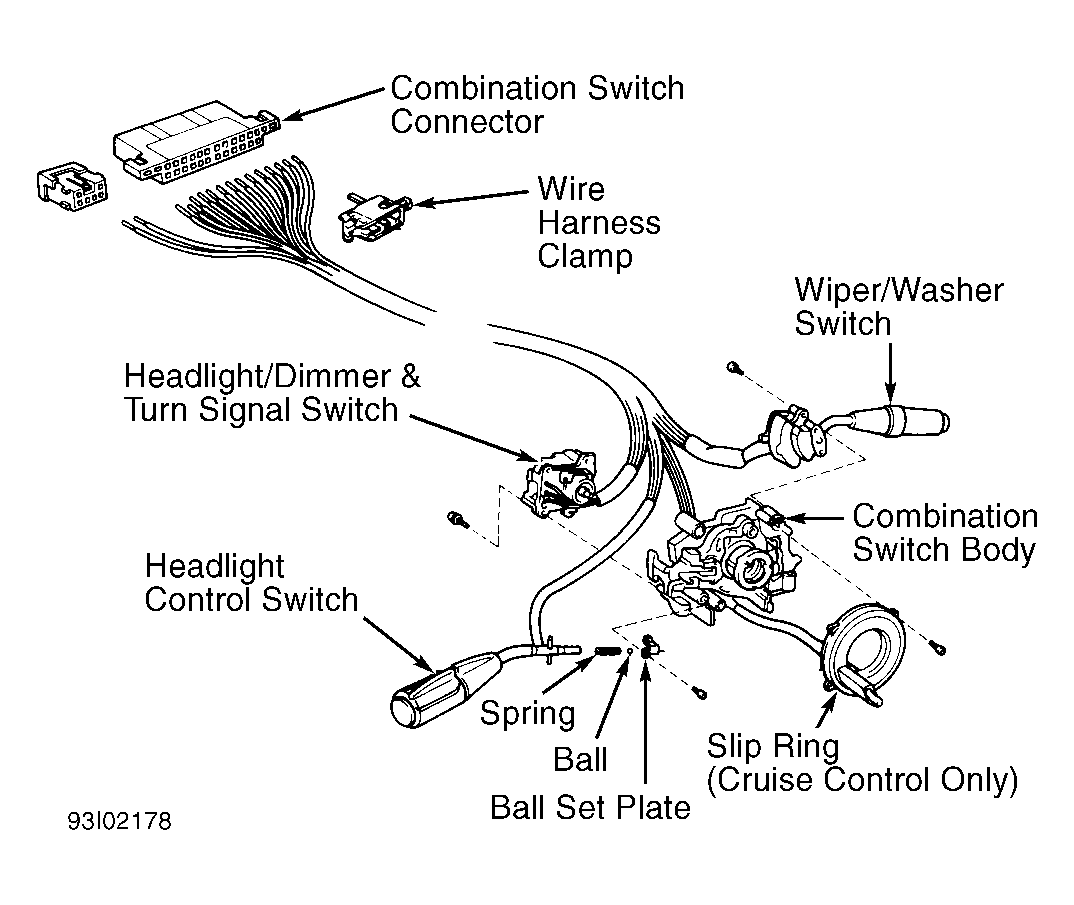

  3. Using miniature screwdriver, release wire terminal securing tab inside connector. See Figure. Pull wire(s) from connector and through harness jacket tubing. Remove wiper switch retaining screws from rear of combination switch body and remove switch. See Figure.
