Description & Operation: 4RUNNER

Driver's seat moves 4 ways (rear up and down, and slide forward and backward). Passenger's seat slides forward and backward. Driver's seat is also equipped with an adjustable lumbar (lower back) support. See Fig 6. Both seat backs recline forward and backward. Switch controls power and ground circuits of power seat motors. Circuit breaker in power seat motor protects circuit.

Fig 1: Locating Power Seat Components (Avalon)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Locating Power Seat Components (Camry)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Locating Power Seat Components (Land Cruiser & Lexus LX470)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Locating Power Seat Components (Sienna)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 5: Locating Power Seat Components (Supra)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

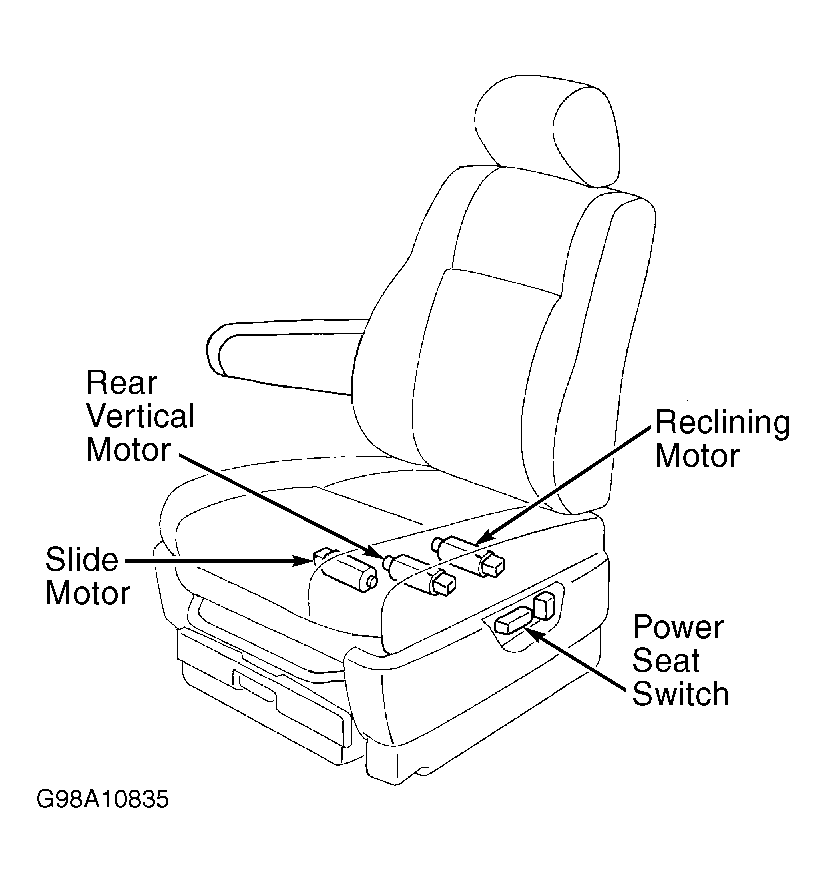

Fig 6: Locating Power Seat Components (4Runner)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
