Removal & Installation (Land Cruiser & Lexus LX470)

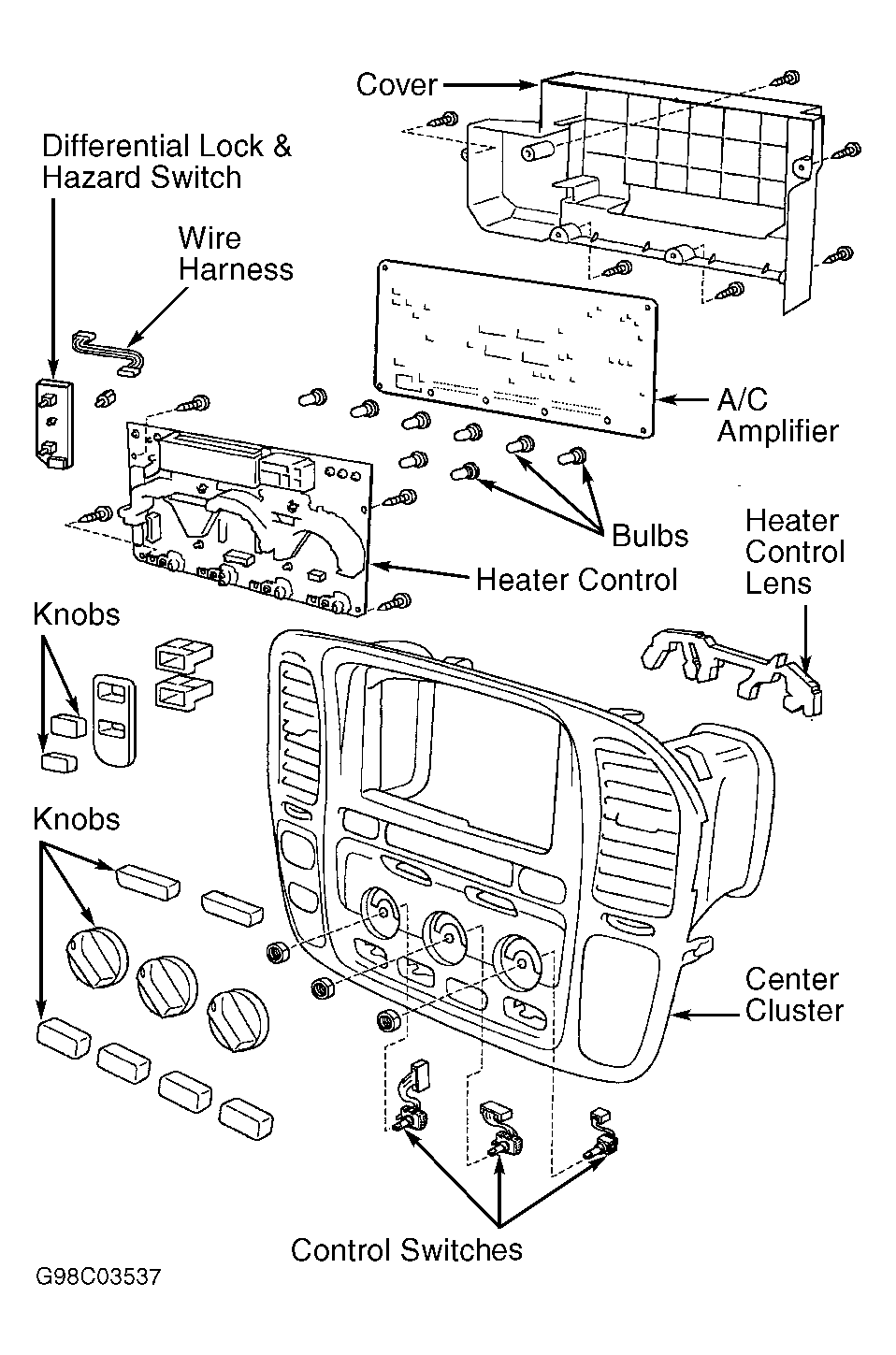

Disconnect negative battery cable. Using a trim stick, gently pry left side, right side and top of center cluster containing A/C-heater control assembly. Pull panel out far enough to disconnect electrical connectors and cables. To replace A/C amplifier, refer to illustration. See Fig 1. To install, reverse removal procedure.
