Removal & Installation

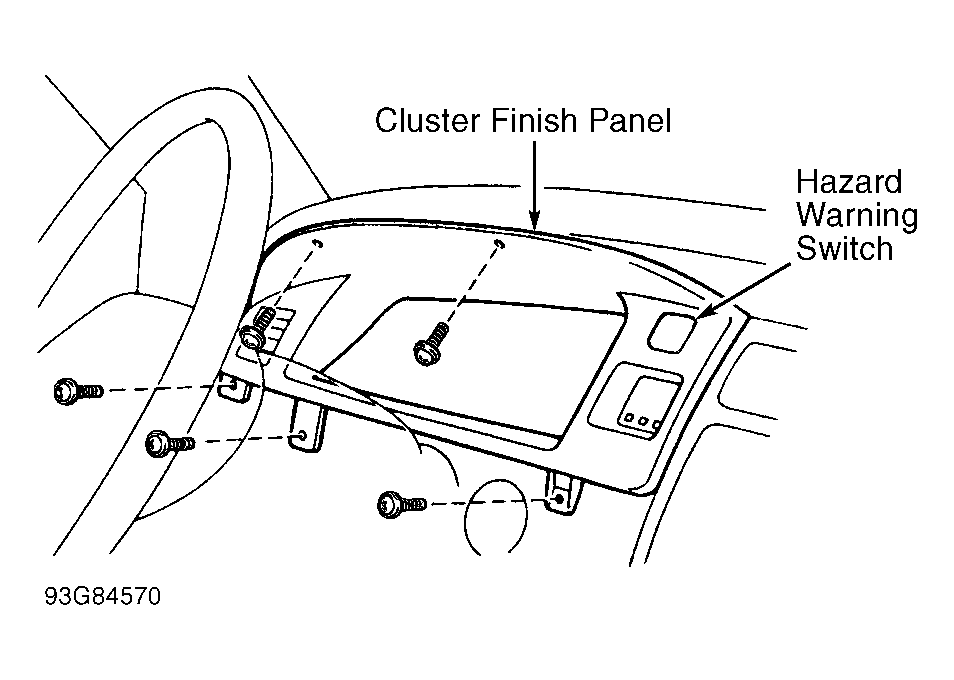

- Ensure front wheels are in straight-ahead position. Turn ignition switch to LOCK position. Disconnect and shield negative battery cable. Wait at least 90 seconds before continuing. Remove 5 screws and cluster finish panel. See Fig 1. Remove instrument cluster retaining screws.
- Pull instrument cluster out far enough to disconnect harness connectors and speedometer cable. Remove instrument cluster. To install, reverse removal procedure. Before installing steering wheel, center spiral cable.
