Center Air Bag Sensor: Removal
WARNING: This page is about a different car, the 1995 Toyota Tercel. However, it is still accessible from the selected car via links, so may be relevant.

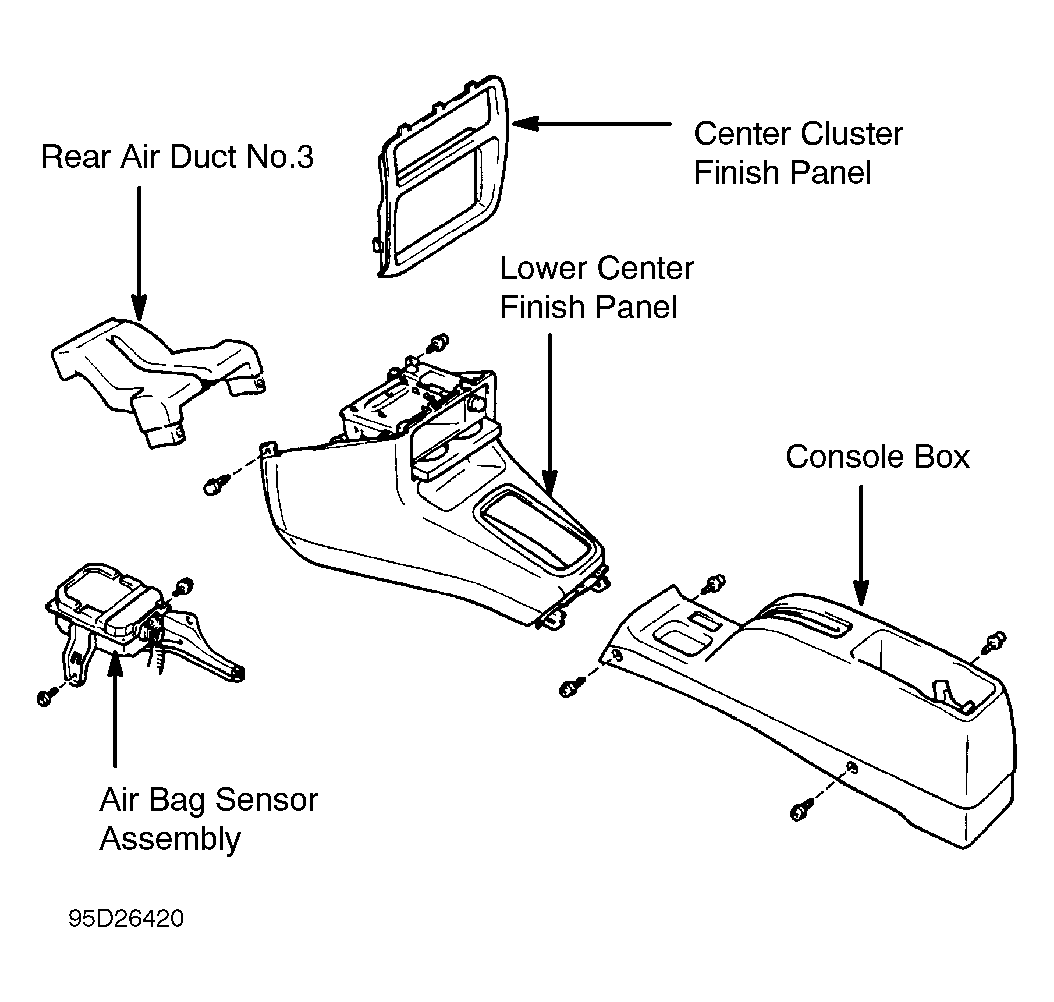

Before proceeding, see SERVICE PRECAUTIONS . Disable SRS. See DISABLING & ACTIVATING AIR BAG SYSTEM . Center air bag sensor is located under floor console. See Fig 1. Remove floor console components as necessary. Disconnect center air bag sensor electrical connector. Remove center air bag sensor retaining screws. Remove center air bag sensor.
