Passenger-Side Air Bag

WARNING: This page is about a different car, the 1995 Toyota Tercel. However, it is still accessible from the selected car via links, so may be relevant.
  1. Before proceeding, see SERVICE PRECAUTIONS . Disable SRS. See DISABLING & ACTIVATING AIR BAG SYSTEM . Remove passenger-side air bag. See PASSENGER-SIDE AIR BAG  under REMOVAL & INSTALLATION.
  2. Position passenger-side air bag inside a scrap tire with air bag trim cover facing inside. See Fig 1 and Fig 2. Secure passenger-side air bag to tire with wire. Place this tire between 4 other tires (top tire should have wheel installed). Securely tie all tires together with wire.

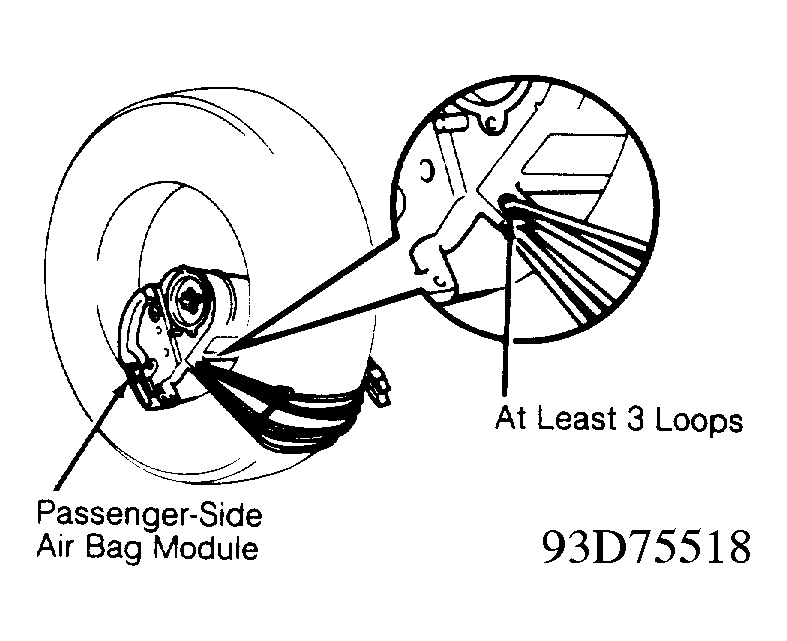

    Fig 1: Installing Passenger-Side Air Bag Onto Tire (1 of 2)
    G93D75518Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

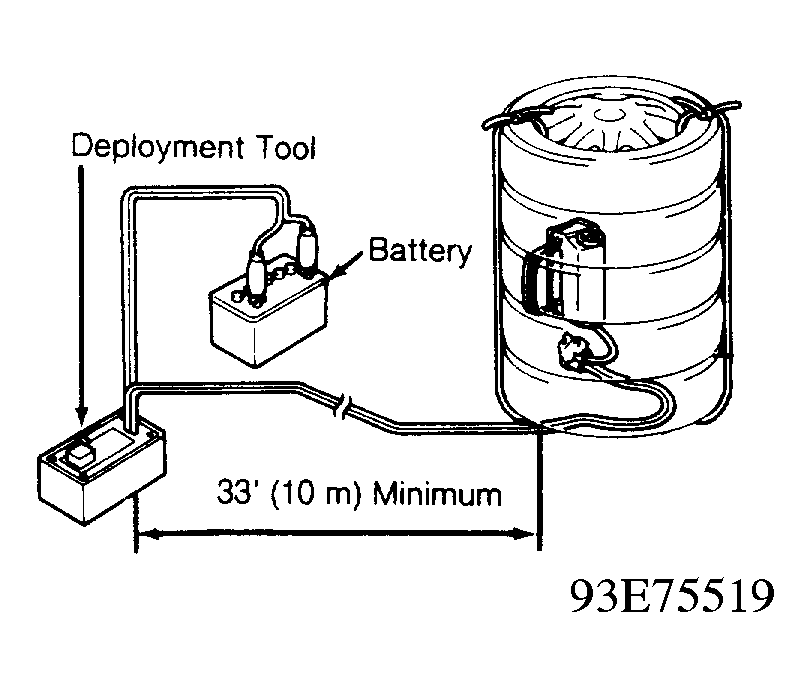

    Fig 2: Installing Passenger-Side Air Bag Onto Tire (2 of 2)
    G93E75519Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. Connect Deployment Tool (09082-00700) to passenger-side air bag connector. Position deployment tool at least 33 feet away from passenger-side air bag. Press activation switch to deploy passenger-side air bag. Because of heat, wait 30 minutes before handling passenger-side air bag.
