Code 24

WARNING: This page is about a different car, the 1995 Toyota Paseo. However, it is still accessible from the selected car via links, so may be relevant.
  1. Check for partially disconnected center air bag sensor connector. Reconnect as necessary. If connector is securely connected, disconnect negative battery cable. Wait at least 90 seconds. Disconnect center air bag sensor connector.

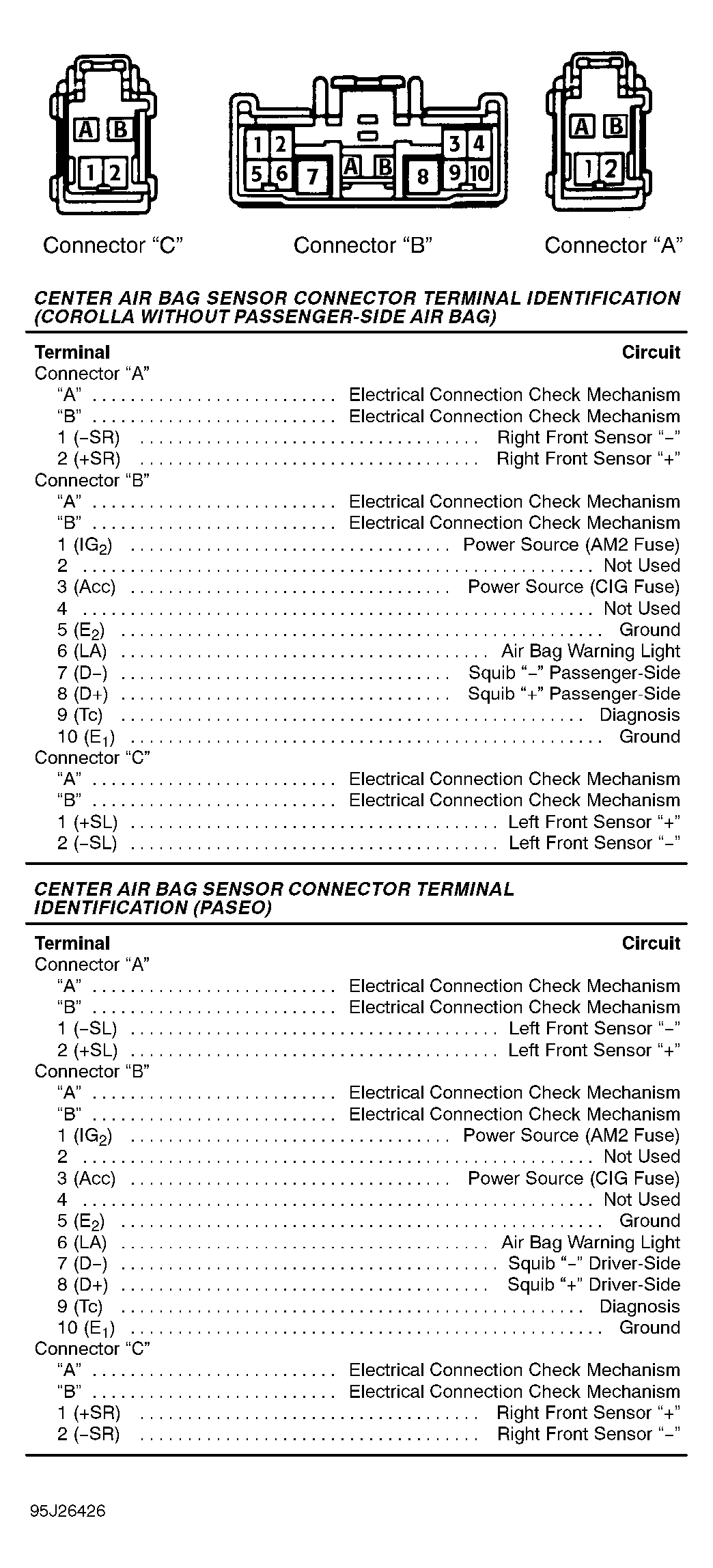

  2. Check for deformed electrical connection check mechanism in center air bag sensor connector. See Figure. If mechanism is deformed, replace harness. If mechanism looks okay, check continuity across mechanism pin. If there is no continuity, replace harness. If there is continuity, reconnect center air bag sensor connector.
  3. Reconnect negative battery cable. Wait at least 2 seconds. Turn ignition switch to ACC or ON position. Wait at least 20 seconds. Clear codes. See CLEARING CODES  under SELF-DIAGNOSTIC SYSTEM. Turn ignition switch to LOCK position. Wait at least 20 seconds.
  4. Turn ignition switch to ACC or ON position. Wait at least 20 seconds. Use Wiring Check Harness (09843-18020) to connect terminals Tc and E1 of DLC. See Figure. If Code 24 is displayed, replace center air bag sensor. If Code 24 is not displayed, check for intermittent fault. See AIR BAG WARNING LIGHT INTERMITTENT  under DIAGNOSIS & TESTING.
