Front Air Bag Sensors: Removal
WARNING: This page is about a different car, the 1995 Toyota Paseo. However, it is still accessible from the selected car via links, so may be relevant.
- Before proceeding, follow air bag service precautions. Refer to SERVICE PRECAUTIONS . Disable air bag system. Refer to DISABLING & ACTIVATING AIR BAG SYSTEM .
- Remove the following components and then go to next step:

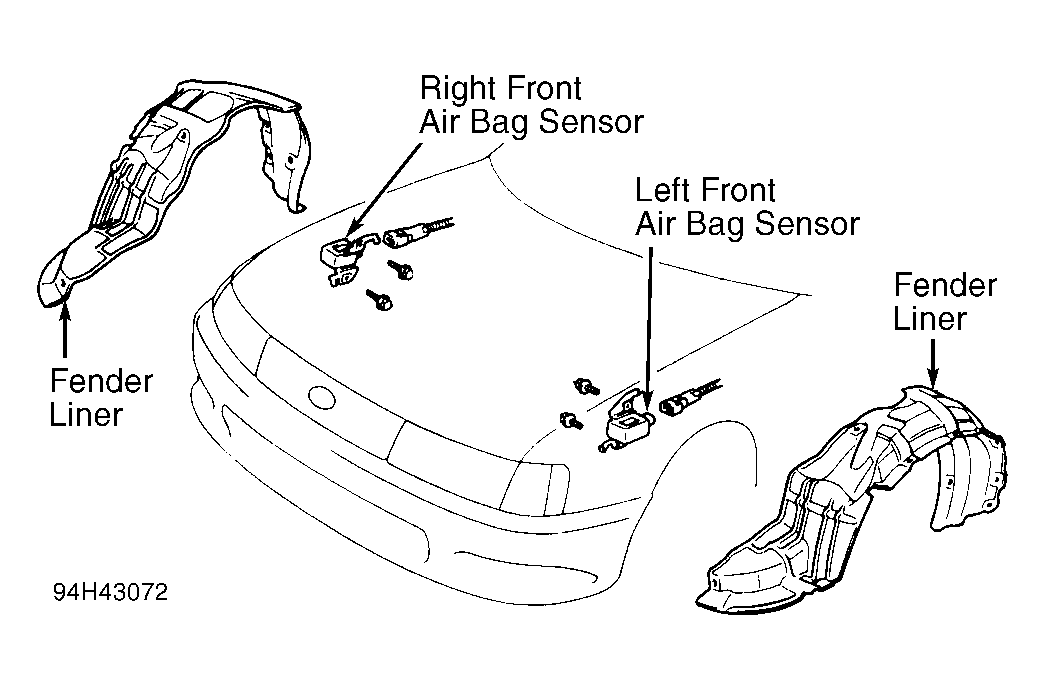

- Front fender liner. See Fig 1.
- Disconnect front air bag sensor electrical connector. Remove front air bag sensor mounting bolts and/or nuts. Remove front air bag sensor.
