Reassembly (A-242L)

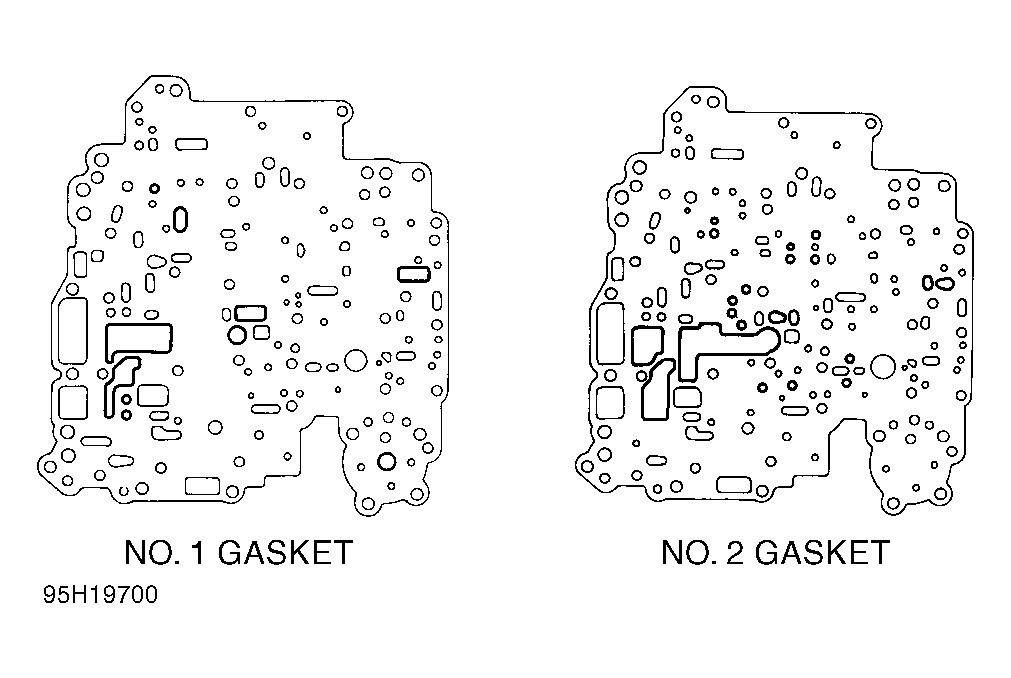

- Coat all components with ATF. Position NEW No. 2 gasket, plate and NEW No. 1 gasket on lower valve body. Ensure gaskets are installed in correct locations. See Fig 1.
- Place lower valve body with plate and gaskets on upper valve body. DO NOT
let components separate. Align each bolt hole in valve bodies with gaskets and plate.
- Install and finger tighten bolts in lower valve body to secure upper valve body. See Figure. Install lower valve body cover over NEW gasket. Install and finger tighten cover bolts. See Figure. Install and finger tighten bolts in upper valve body. See Figure.
- Tighten upper and lower valve body bolts to 58 INCH lbs. (6.5 N.m). Install NEW "O" ring on solenoid. Lubricate "O" ring with ATF and install solenoid. Tighten bolts for single solenoid to 58 INCH lbs. (6.5 N.m).
