| Accessory Drive Belt Pulley Bolt |
14 (19) |
| A/C Compressor Bolt |
18 (24) |
| A/C Compressor Mounting Bracket Bolt |
20 (27) |
| A/C Idler Pulley Bolt |
| 12-mm Bolt |
20 (27) |
| 14-mm Bolt |
27 (37) |
| Axle Shaft Nut |
159 (216) |
| Ball Joint-To-Lower Control Arm Bolt/Nut |
59 (80) |
| Camshaft Sprocket Bolt |
37 (51) |
| Connecting Rod Nut |
29 (39) |
| Coolant Housing Bolt/Nut |
13 (18) |
| Crankshaft Pulley Bolt |
114 (155) |
| Cylinder Head Bolt |
| Step 1 |
33 (45) |
| Step 2 |
Additional 90° |
| Delivery Pipe-To-Cylinder Head Bolt |
14 (19) |
| EGR Pipe |
| Nut |
22 (30) |
| Union Nut |
29 (39) |
| EGR Valve Nut |
22 (30) |
| Exhaust Manifold Nut |
35 (47) |
| Exhaust Manifold-To-Cylinder Block Support Brace Bolt/Nut |
.29 (39) |
| Exhaust Pipe-To-Cylinder Block Support Bracket Bolt |
14 (19) |
| Exhaust Pipe-To-Exhaust Manifold Bolt/Nut |
46 (62) |
| Flywheel/Drive Plate Bolt |
66 (90) |
| Fuel Line-To-Delivery Pipe Union Bolt |
22 (30) |
| Fuel Line-To-Fuel Filter Union Bolt |
22 (30) |
| Intake Manifold Bolt/Nut |
14 (19) |
| Intake Manifold Brace Bolt/Nut |
15 (20) |
| Knock Sensor |
33 (45) |
| Left (Transaxle Side) Engine Mount Bracket-To-Mount Bolt |
35 (47) |
| Left (Transaxle Side) Engine Mount Bracket-To-Transaxle Bolt |
47 (64) |

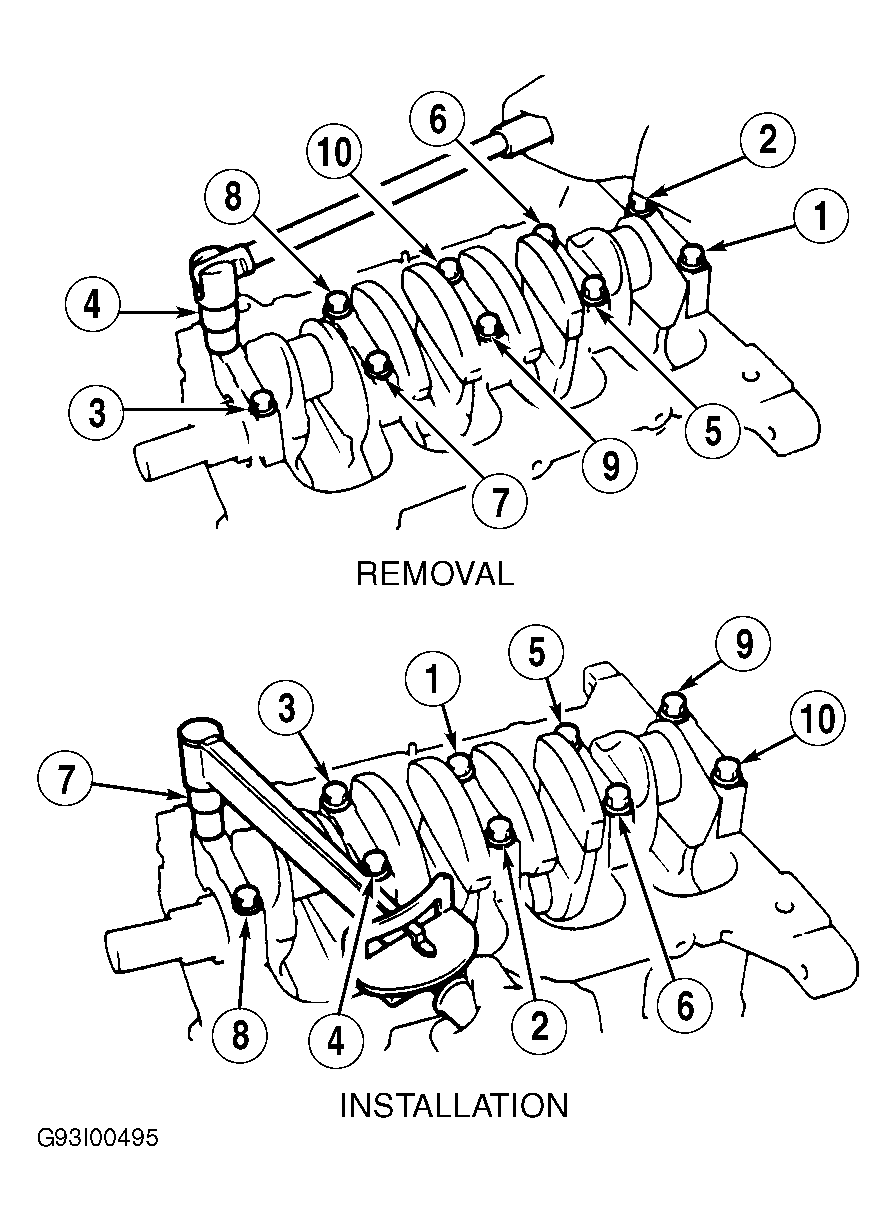

| Main Bearing Cap Bolt |
42 (57) |
| No. 1 Idler Pulley Bolt |
13 (18) |
| No. 2 Idler Pulley Bolt |
20 (27) |
| Oil Pump Drive Sprocket Nut |
27 (37) |
| Power Steering Pump Adjusting Bracket Bolt |
15 (20) |
| Power Steering Pump Mounting Bracket-To-Cylinder Head Bolt |
32 (43) |
| Pressure Regulator Valve |
22 (30) |
| Rear (Firewall Side) Engine Mount Through-Bolt |
47 (64) |
| Right (Timing Belt Side) Engine Mount Through-Bolt |
54 (73) |
| Right (Timing Belt Side) Engine Mount-To-Bracket On Cylinder Block Bolt |
47 (64) |
| Right (Timing Belt Side) Engine Mount-To-Cylinder Block Bolt/Nut |
43 (58) |
| Spark Plug |
13 (18) |
| Throttle Body Bolt/Nut |
14 (19) |
| Tie Rod Nut |
36 (49) |
| Torque Converter Bolt-To-Drive Plate Bolt |
20 (27) |
| Water Pump Bolt/Nut |
13 (18) |
| Wheel Lug Nut |
76 (103) |
| INCH Lbs. (N.m) |
| ABS Speed Sensor Bolt |
| 1995 |
69 (7.8) |
| 1996 |
71 (8.0) |
| Camshaft Bearing Cap Bolt |
115 (13.0) |
| Camshaft Position Sensor Retaining Bolt |
71 (8.0) |
| Clutch Release Cylinder Bolt |
106 (12.0) |
| Coolant Inlet Pipe Bolt |
66 (7.5) |
| Oil Pan Bolt |
115 (13.0) |
| Oil Pump Bolt |
66 (7.5) |
| Oil Pump Pick-Up Tube Bolt |
89 (10.1) |
| Rear Oil Seal Retainer-To-Cylinder Block Bolt |
66 (7.5) |
| Rear Plate-To-Cylinder Block Bolt |
89 (10.1) |
| Valve Cover Nut |
62 (7.0) |
