Description & Operation

Tercel models are equipped with a solid axle beam with wheel bearings mounted on the axle shaft. The axle is supported by struts and retained by a lateral control rod. See Fig 1.

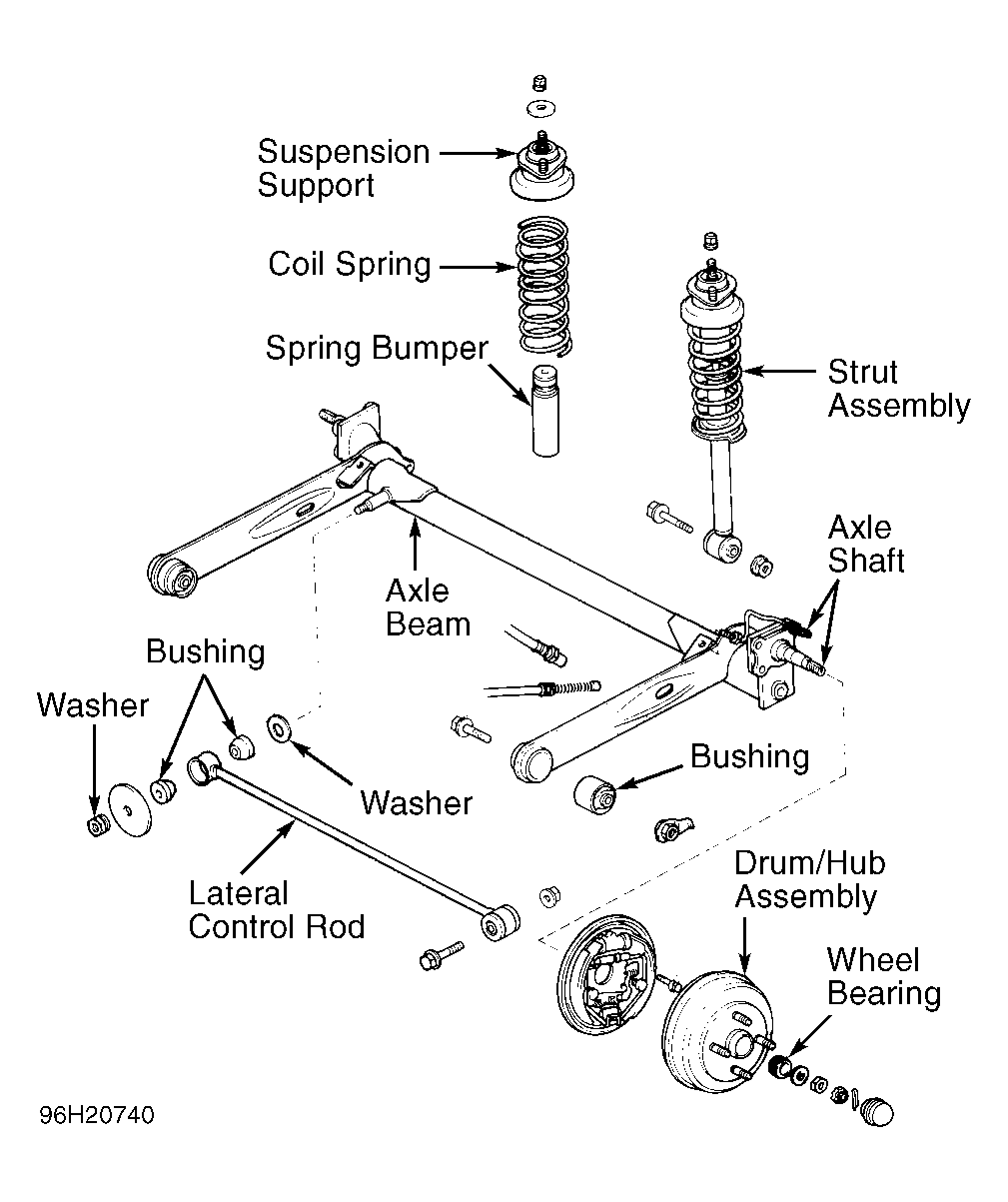

Fig 1: Rear Axle Components (Paseo Shown; Tercel Is Similar)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
