Drive Belt Routing (Tacoma, 4Runner & T100 1995-96)

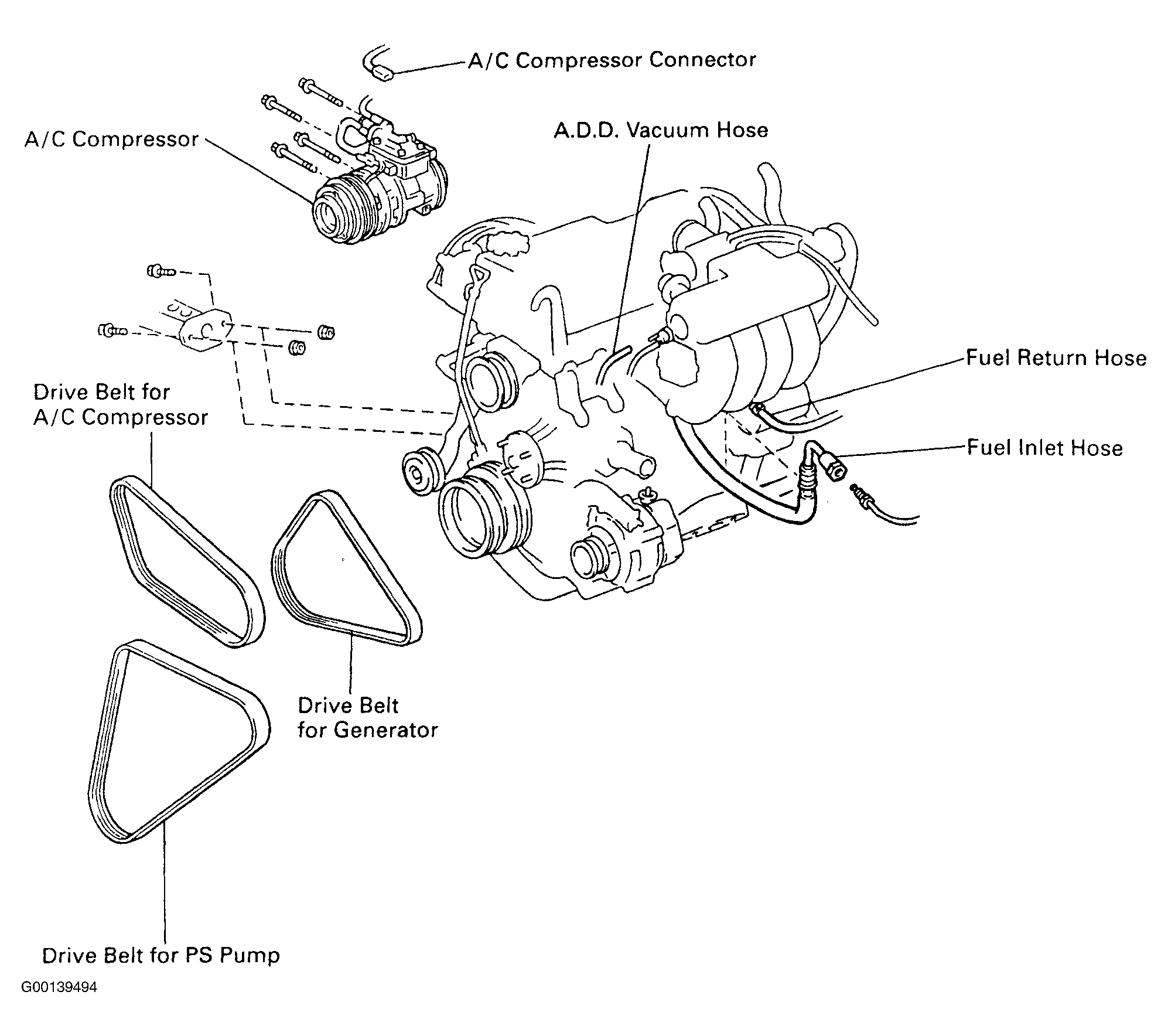

Fig 1: Identifying Tacoma, 4Runner & T100 2RZ-FE & 3RZ-FE A/C, Alternator & P/S Drive Belt Routing (1995-96)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

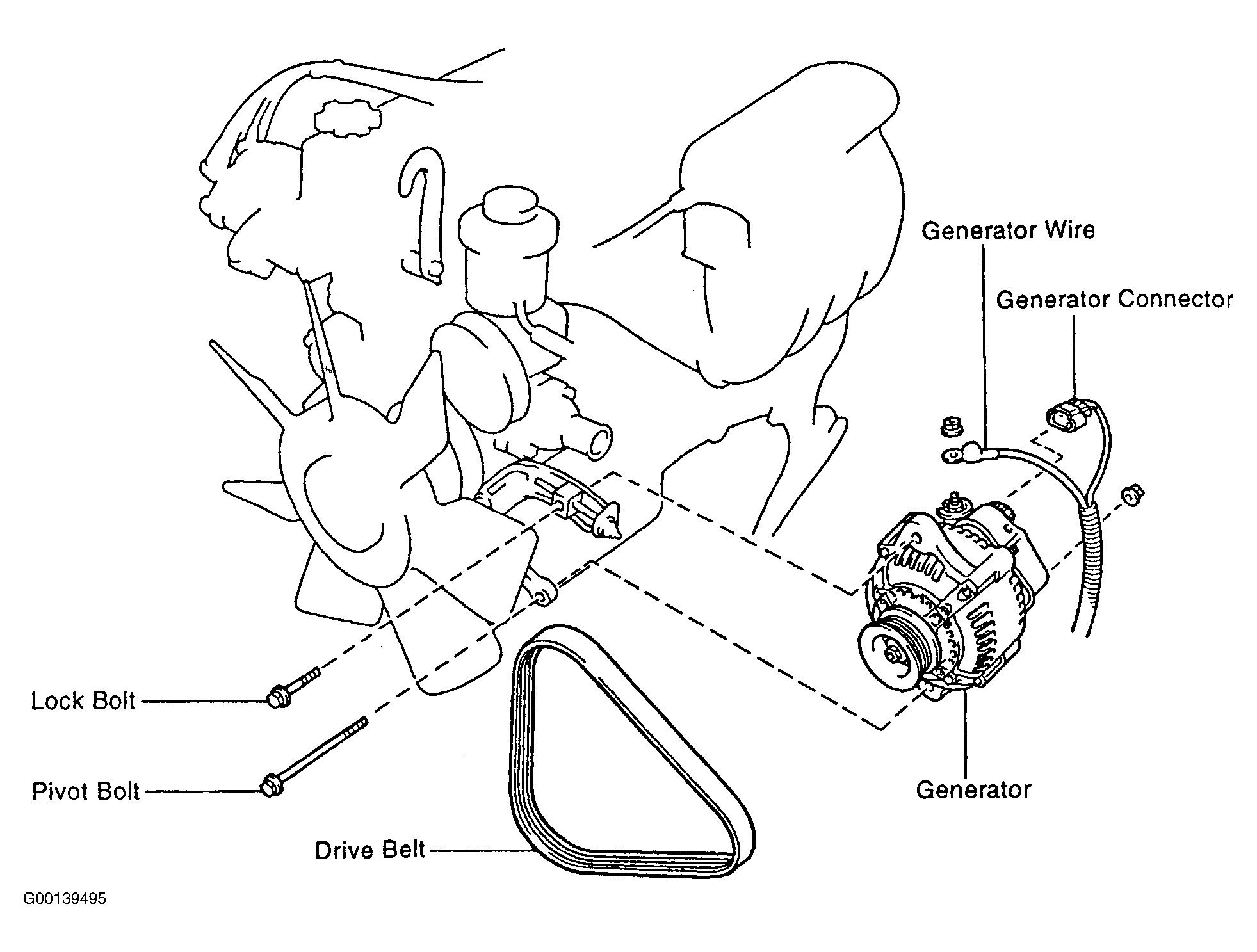

Fig 2: Identifying Tacoma, 4Runner & T100 2RZ-FE & 3RZ-FE Alternator Drive Belt Routing (1995-96)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

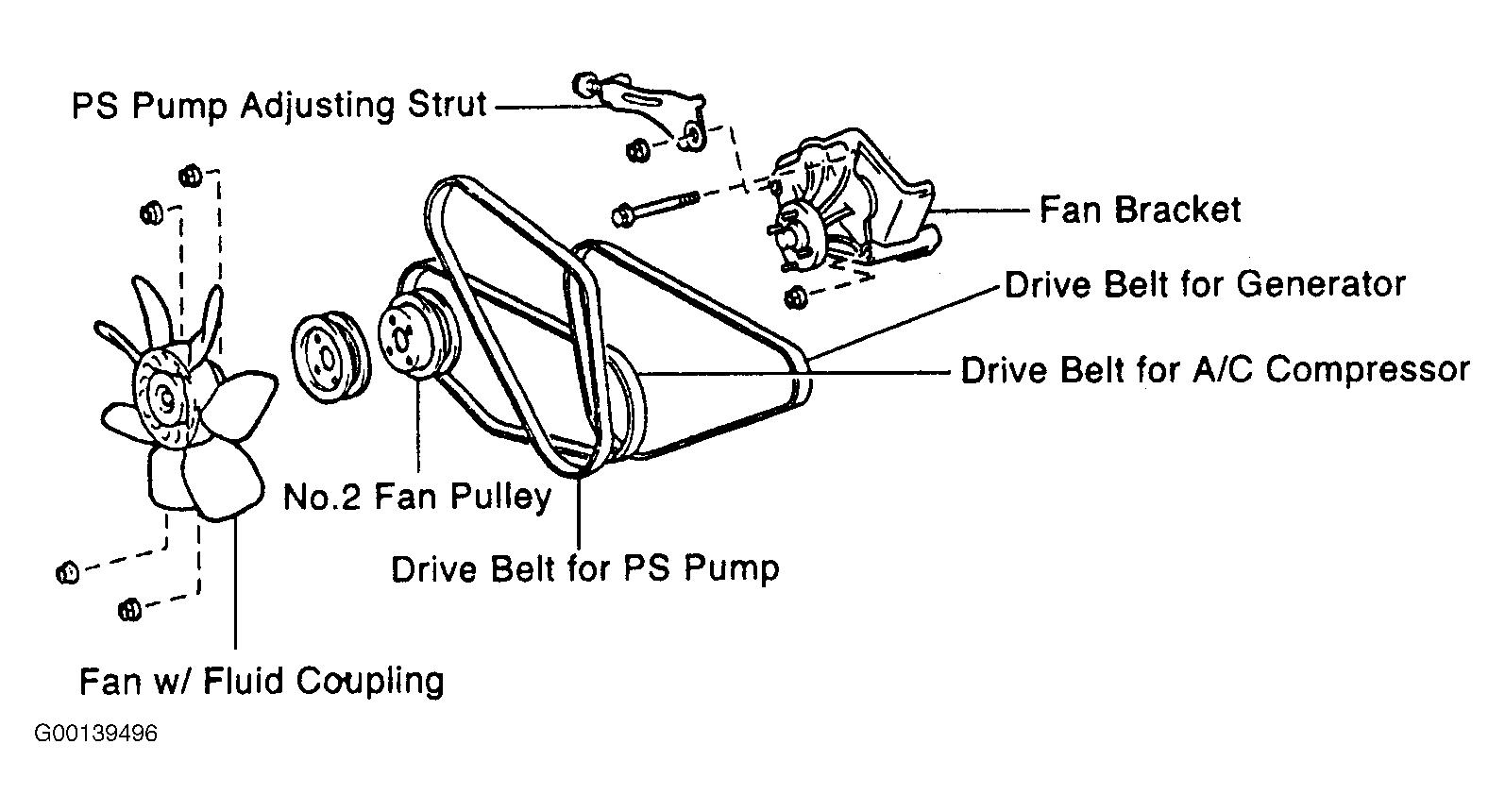

Fig 3: Identifying Tacoma, 4Runner & T100 5VZ-FE A/C, Alternator & P/S Drive Belt Routing (1995-96)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

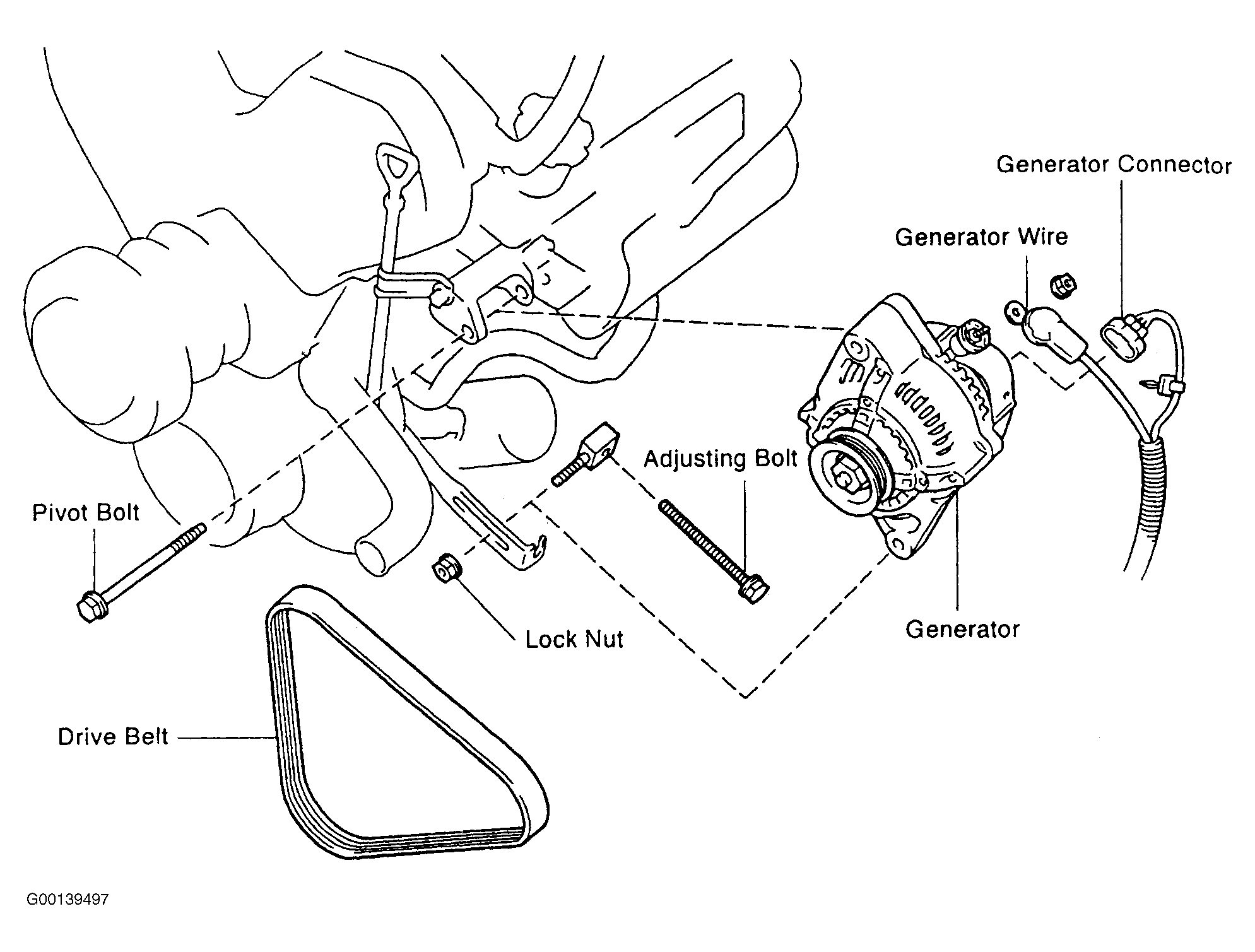

Fig 4: Identifying Tacoma, 4Runner & T100 5VZ-FE Alternator Drive Belt Routing (1995-96)

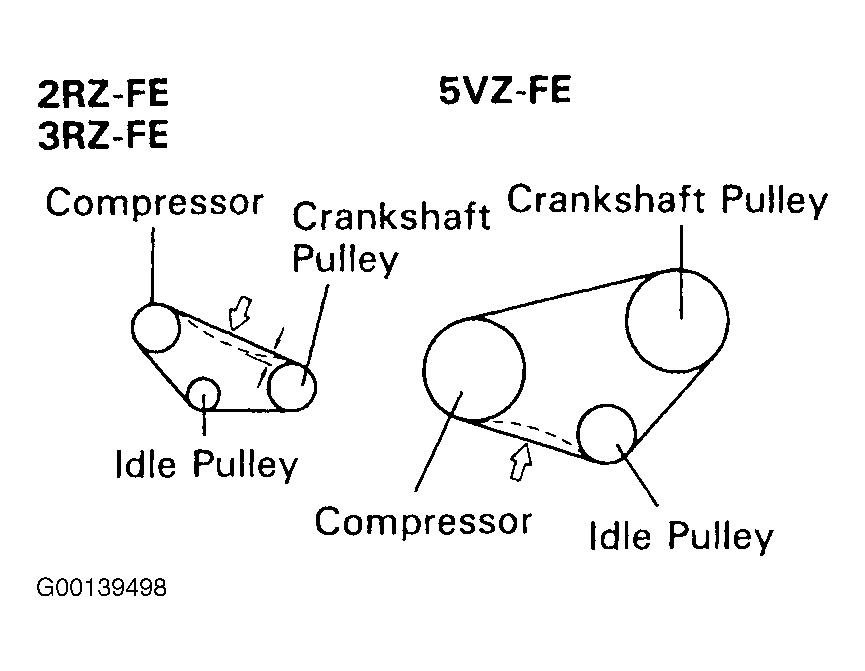

Fig 5: Identifying Tacoma, 4Runner & T100 2RZ-FE, 3RZ-FE & 5VZ-FE A/C Drive Belt Routing (1995-96)
