Drive Belt Routing (MR2 1995)

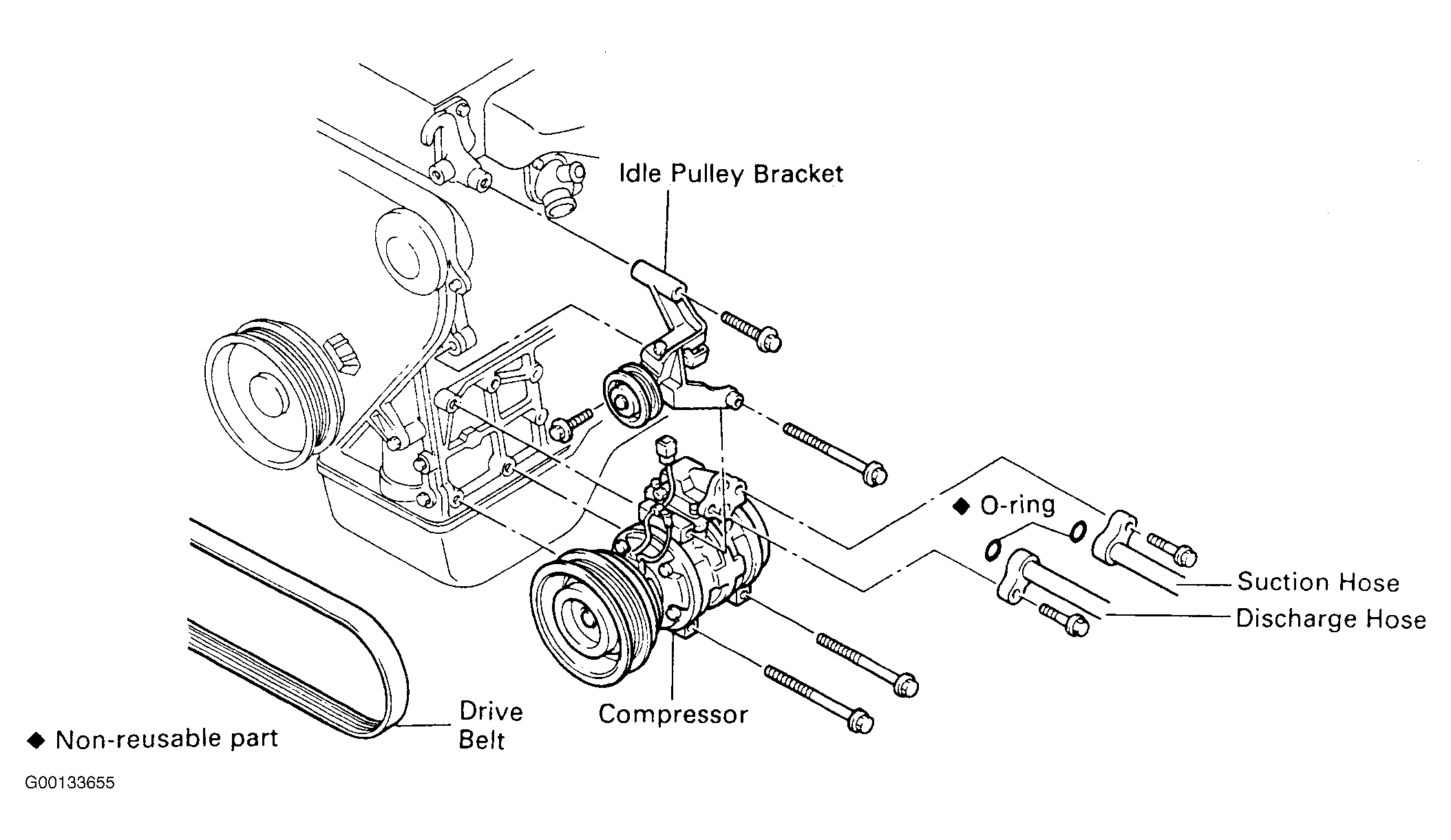

Fig 1: Identifying MR2 3S-GTE & 5S-FE A/C Drive Belt Routing (1995)
G00133655Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

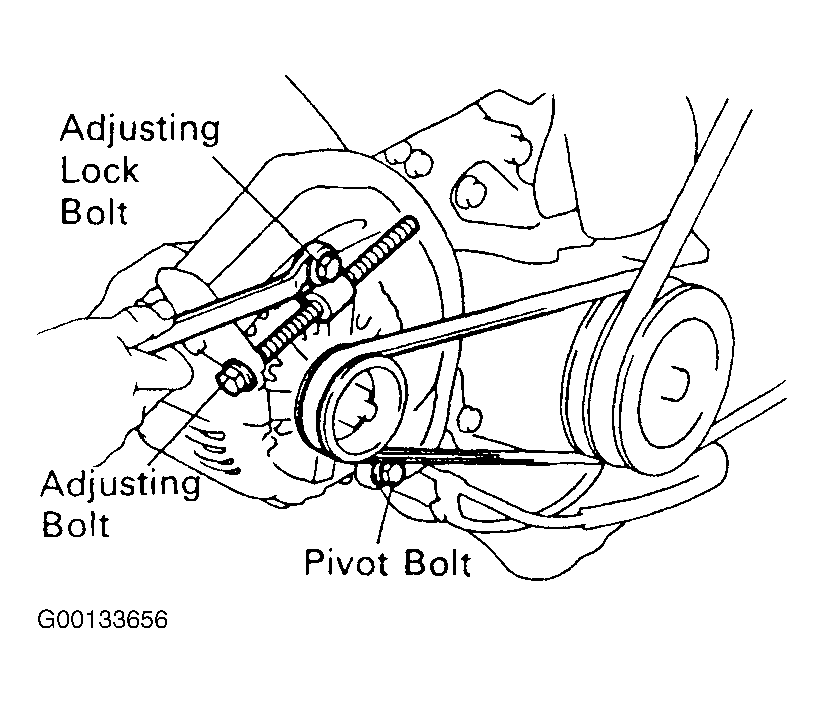

Fig 2: Identifying MR2 3S-GTE Alternator Belt Routing (1995)
G00133656Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

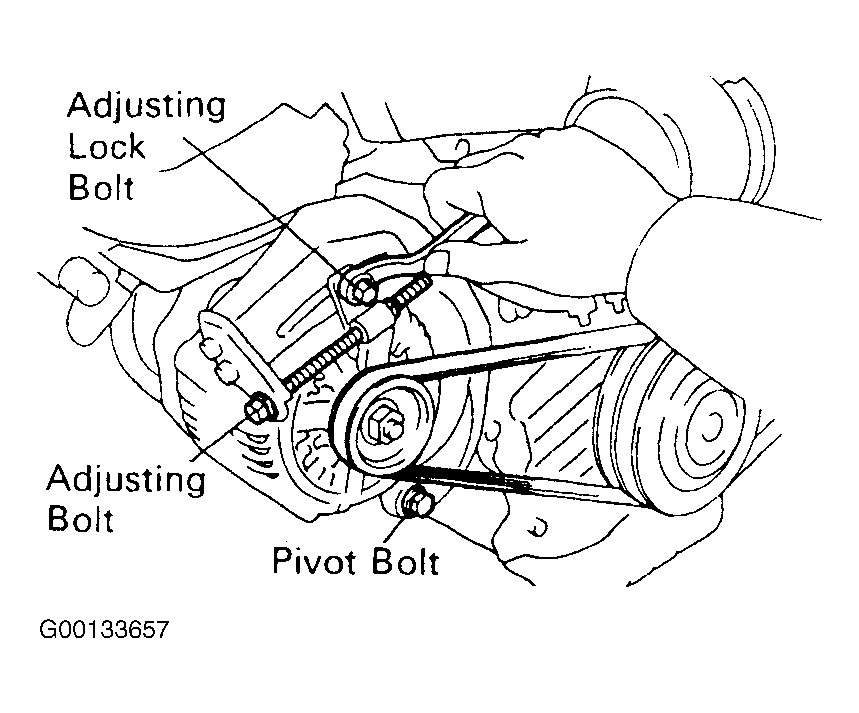

Fig 3: Identifying MR2 5S-FE Alternator Belt Routing (1995)
G00133657Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
