Drive Belt Routing (Corolla 4A-FE & 7A-FE 1995-96)

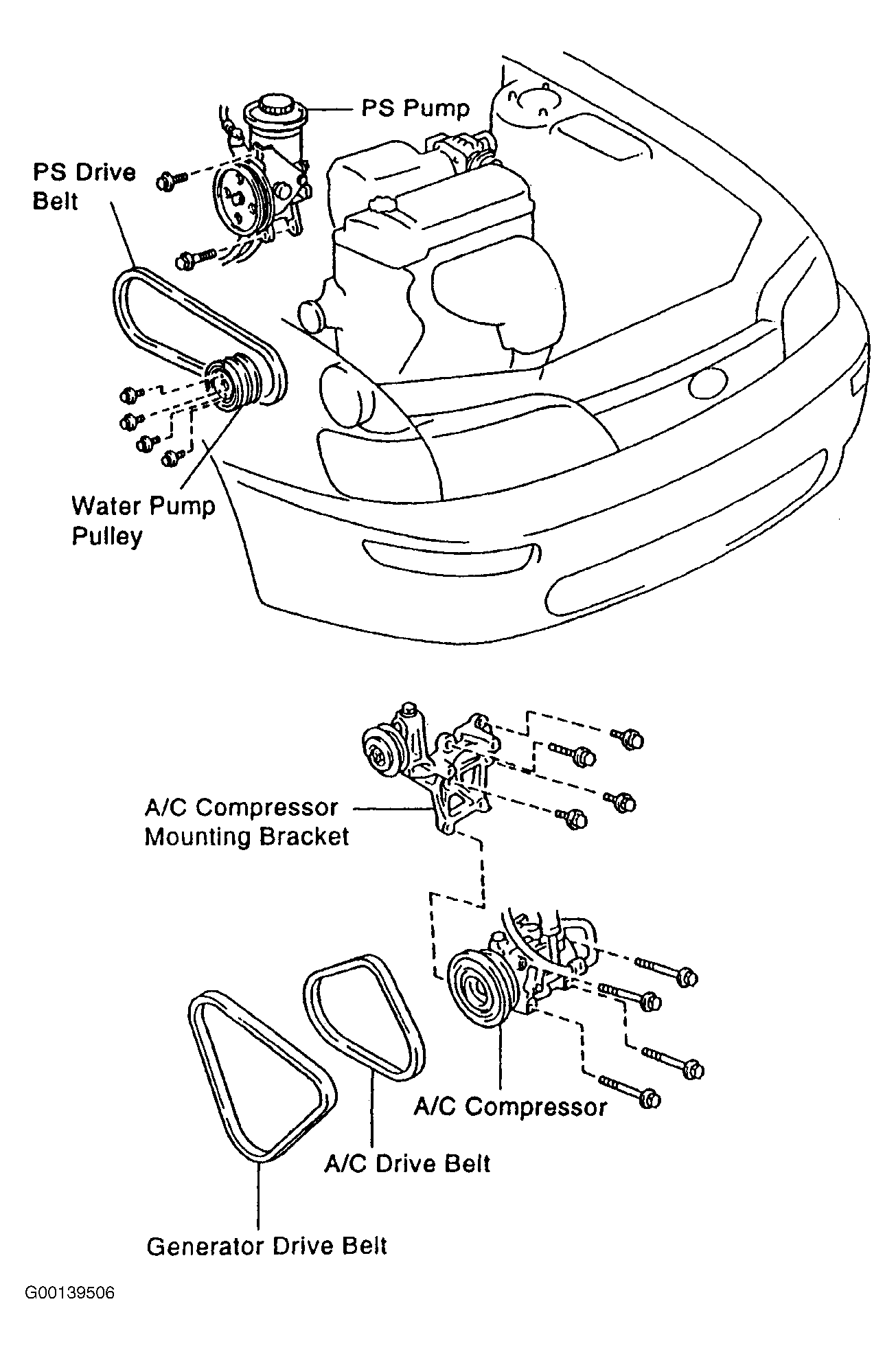

Fig 1: Identifying Corolla 4A-FE & 7A-FE A/C, Alternator, P/S & Water Pump Belt Routing (1995-96)
G00139506Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Identifying Corolla 4A-FE & 7A-FE A/C Belt Routing (1995-96)
G00139507Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
