Drive Belt Routing (Celica 7A-FE 1995-96)

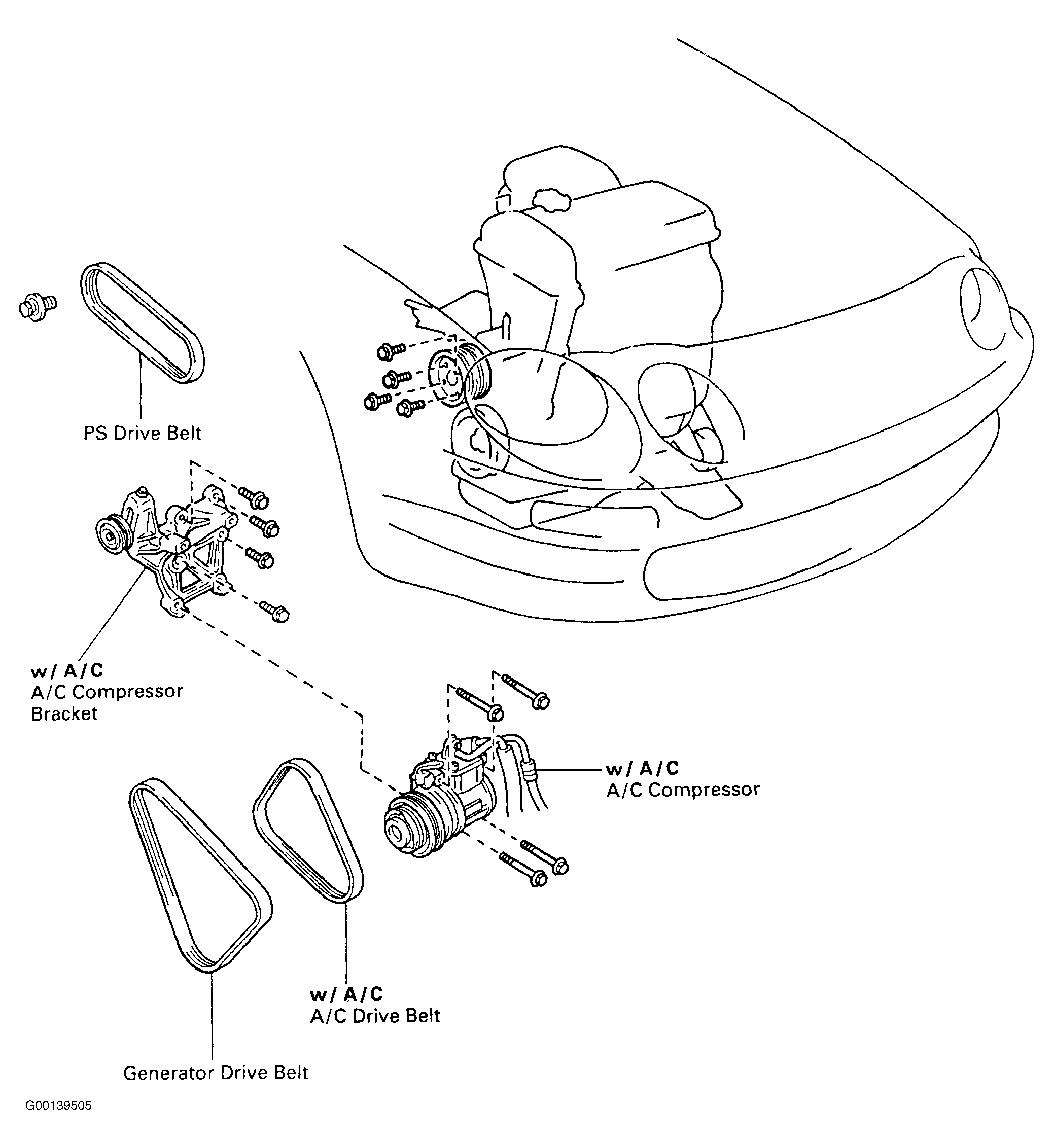

Fig 1: Identifying Celica 7A-FE Alternator, A/C & P/S Belt Routing (1995-96)

G00139505

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
