Drive Belt Routing (Camry 1995-96)

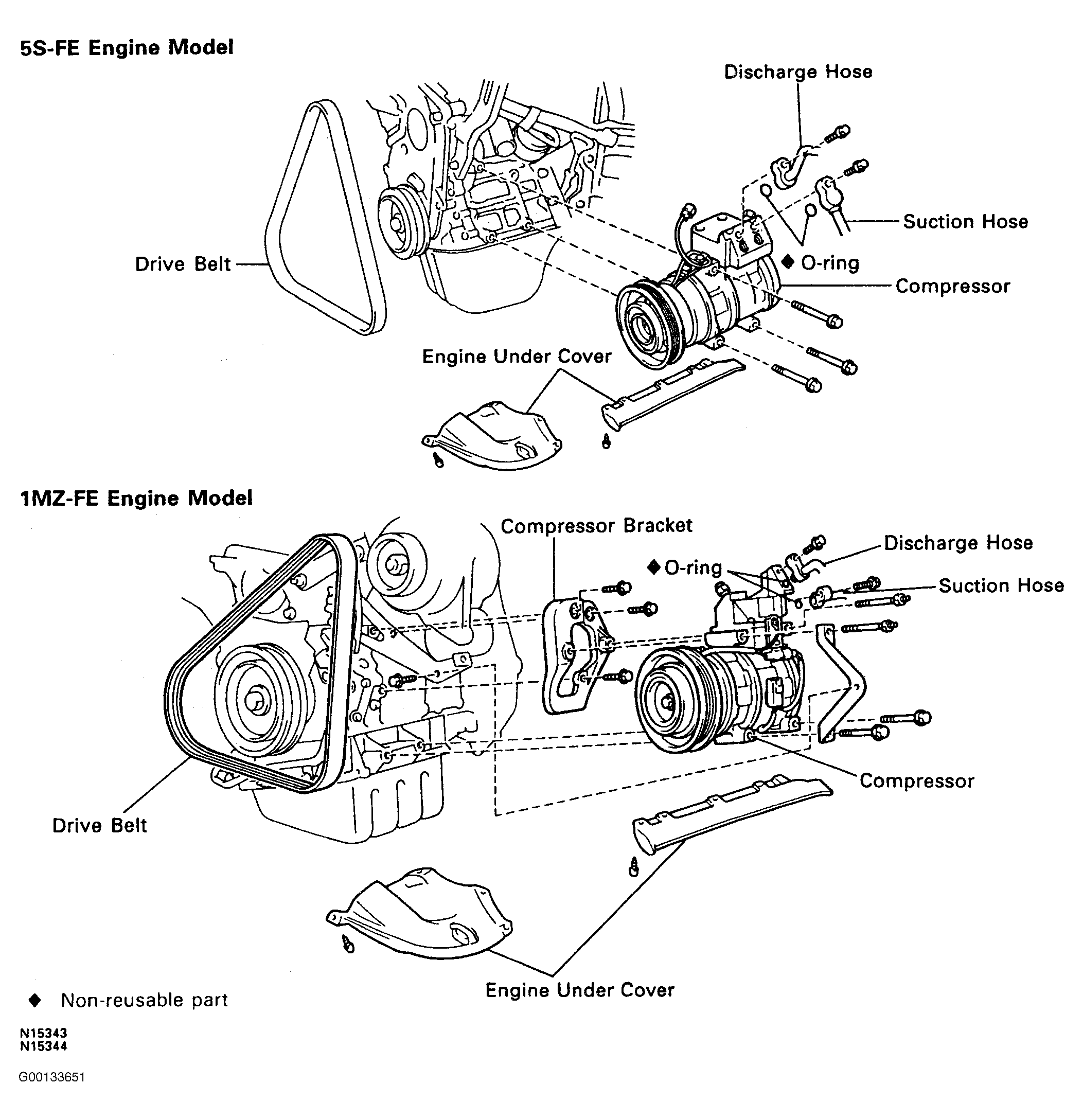

Fig 1: Identifying Camry 5S-FE & 1MZ-FE A/C & Alternator Belt Routing (1995-96 - 1 Of 2)
G00133651Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Identifying Camry 5S-FE & 1MZ-FE A/C & Alternator Belt Routing (1995-96 - 2 Of 2)
G00133652Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

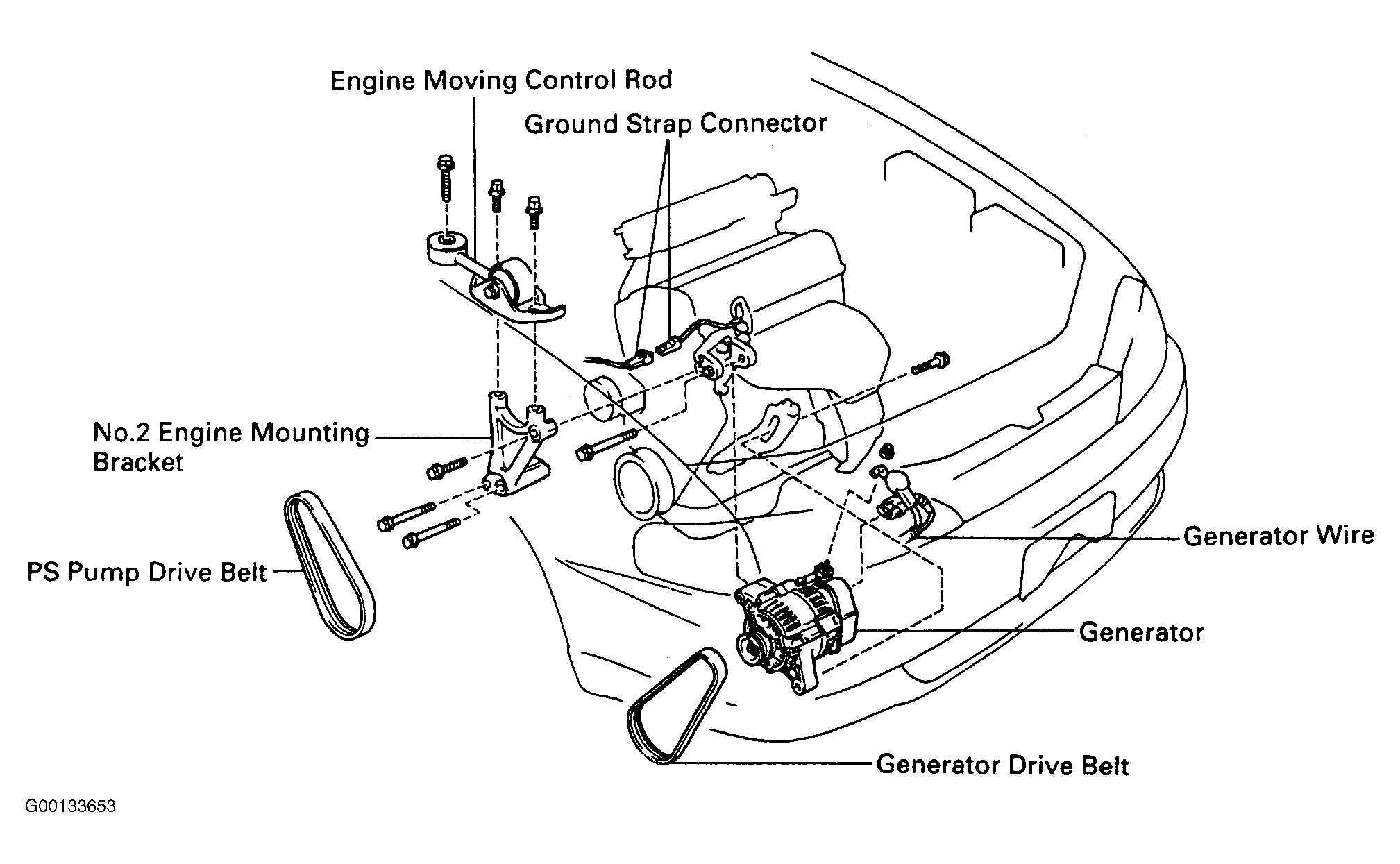

Fig 3: Identifying Camry 5S-FE P/S Pump Belt Routing (1995-96)
G00133653Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

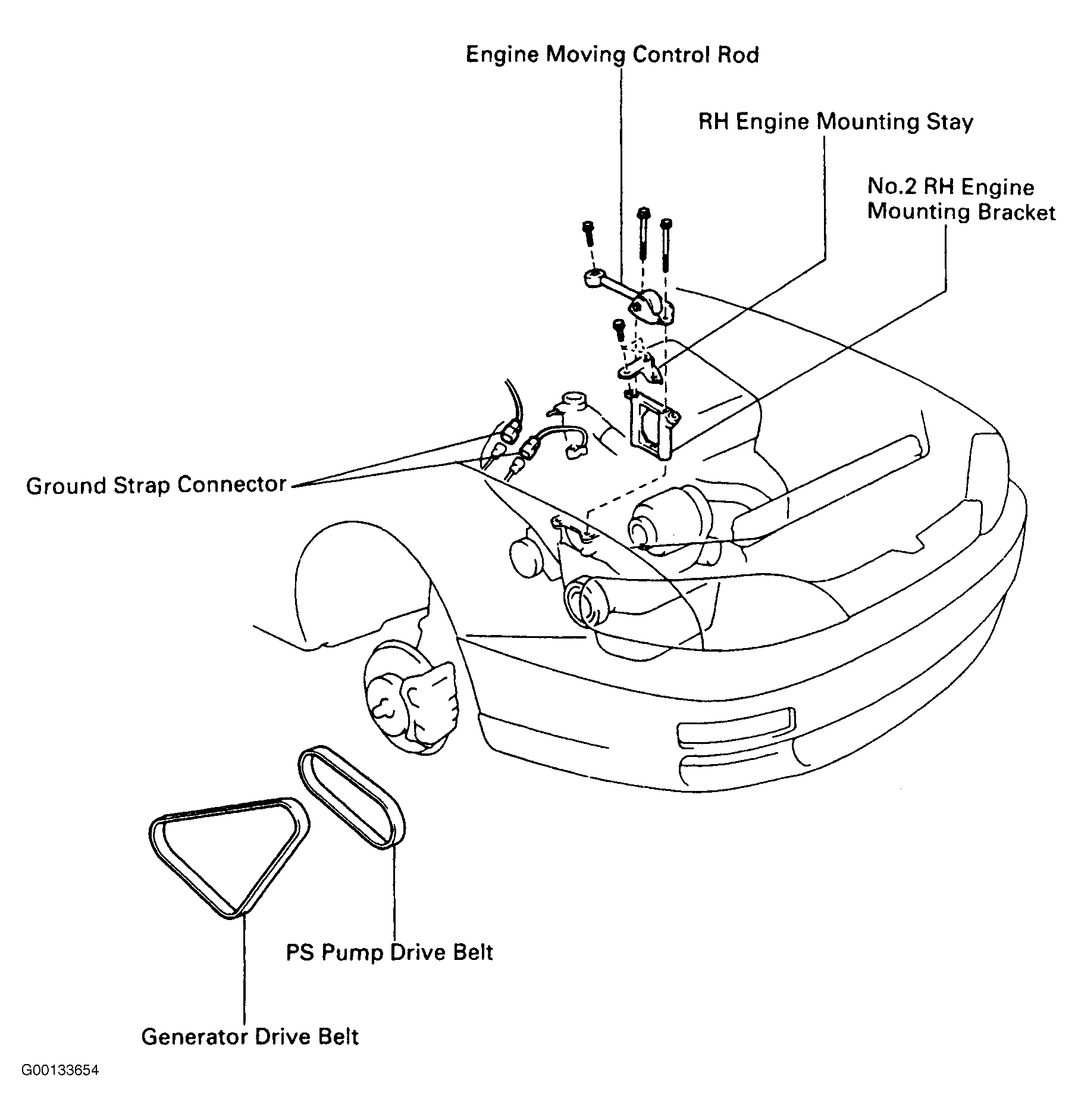

Fig 4: Identifying Camry 1MZ-FE P/S Pump Belt Routing (1995-96)
G00133654Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
