Fuel Gauge Resistance Test

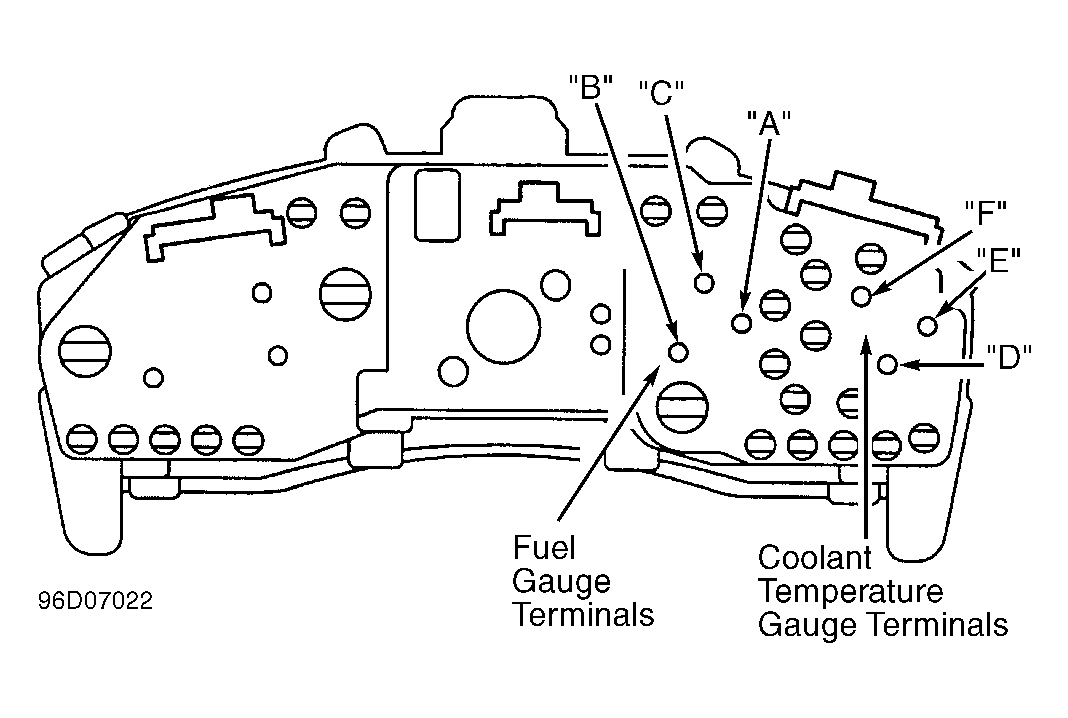

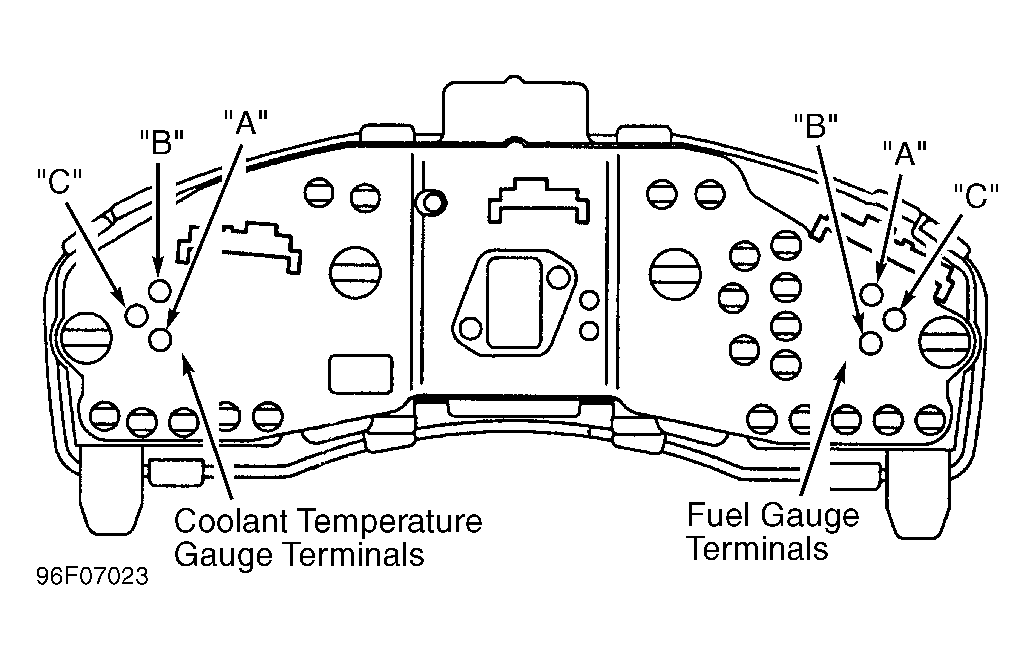

Remove instrument cluster. Unplug cluster connector(s). Using an ohmmeter, check fuel gauge resistance by measuring across appropriate terminals. See FUEL GAUGE RESISTANCE SPECIFICATIONS table. See Fig 1- Fig 2 . Replace fuel gauge if not within specifications.
FUEL GAUGE RESISTANCE SPECIFICATIONS
| Application & Terminals | Ohms | |
|---|---|---|
| With Tachometer | ||
| Terminals "A" & "B" | 116 | |
| Terminals "A" & "C" | 177 | |
| Terminals "B" & "C" | 61 | |
| Without Tachometer | ||
| Terminals "A" & "B" | 171 | |
| Terminals "A" & "C" | 273 | |
| Terminals "B" & "C" | 102 | |
