Fuel Gauge Resistance Test

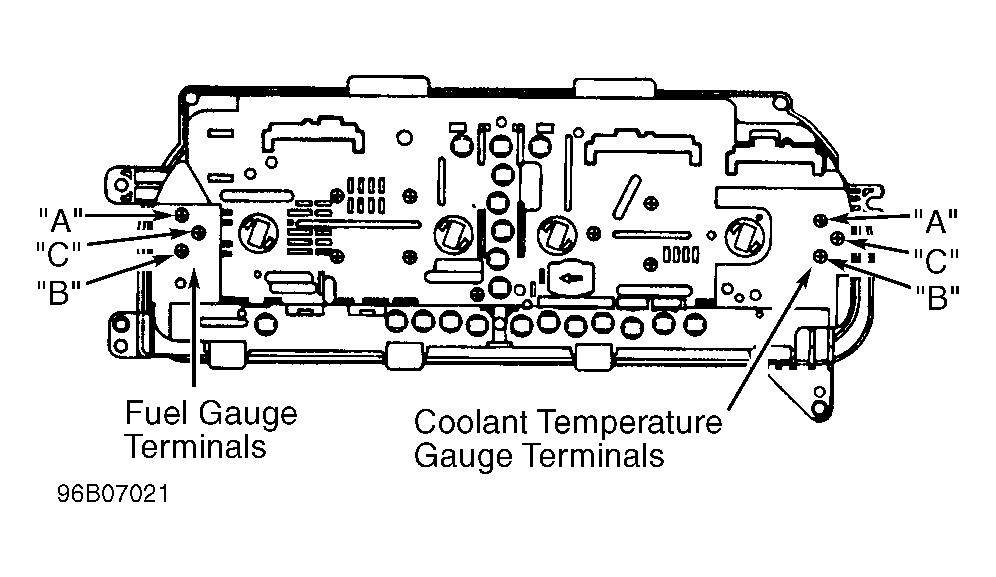

Remove instrument cluster. Unplug cluster connector(s). Using an ohmmeter, check fuel gauge resistance by measuring across appropriate terminals. See FUEL GAUGE RESISTANCE SPECIFICATIONS table. See Fig 1. Replace fuel gauge if not within specifications.
FUEL GAUGE RESISTANCE SPECIFICATIONS
| Application & Terminals | Ohms |
|---|---|
| Terminals "A" & "B" | 151 |
| Terminals "A" & "C" | 306 |
| Terminals "B" & "C" | 154 |
