No Center Differential Control
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 1994 Toyota MR2, 1993 Toyota MR2, 1993 Toyota Celica, 1992 Toyota MR2, and 1992 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.
Electronic control faulty. Valve body faulty. Transfer faulty. Hydraulic multi-plate clutch faulty.

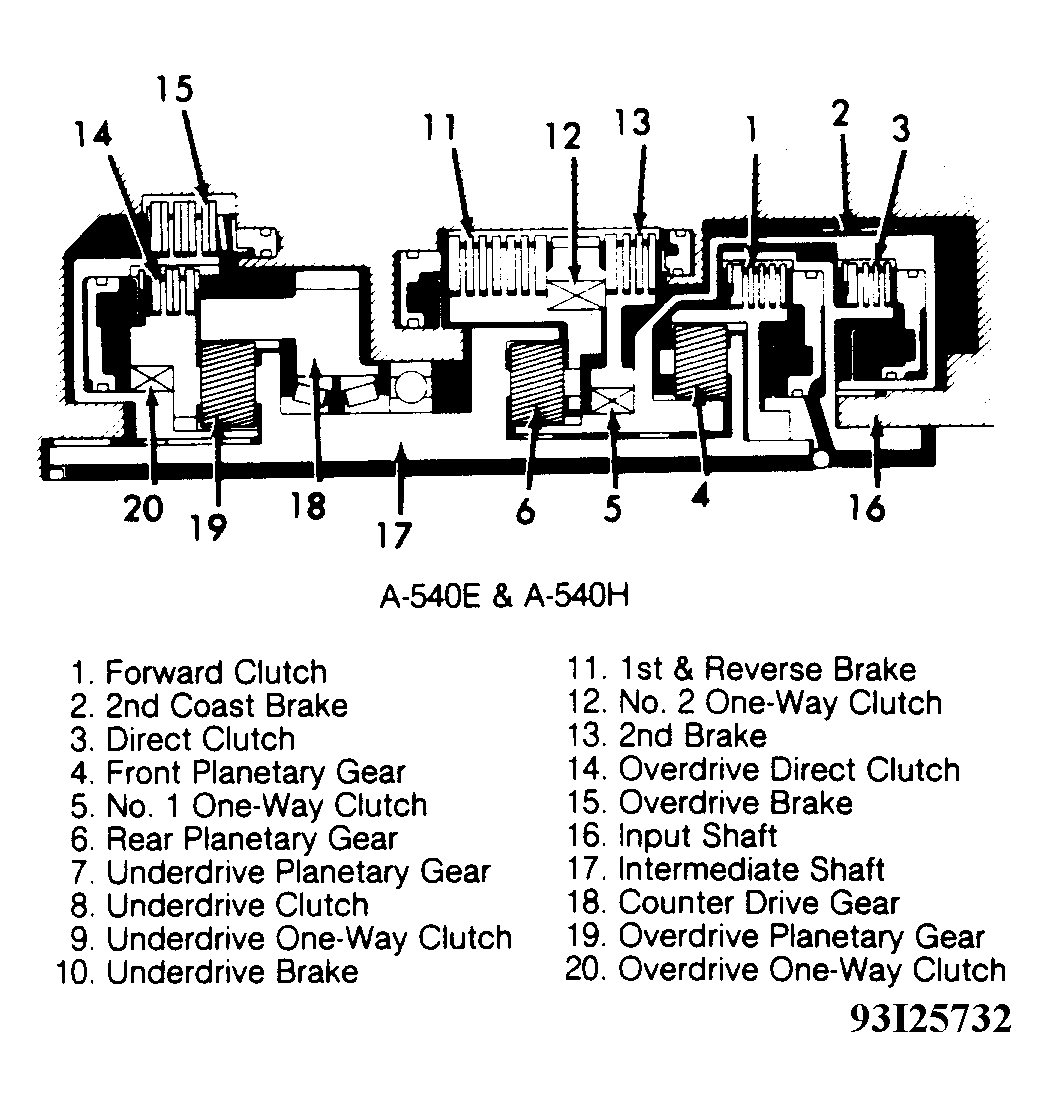

CLUTCH & BAND APPLICATION
| Selector Lever Position | Elements In Use | |||||
|---|---|---|---|---|---|---|
| "D" (Drive) | ||||||
| First Gear | Forward Clutch, No. 2 One-Way Clutch, Under-Drive Brake & Under-Drive One-Way Clutch | |||||
| Second Gear | Forward Clutch, No. 1 One-Way Clutch No. 2 One-Way Clutch, No. 2 Brake, Under-Drive Brake & Under-Drive One-Way Clutch | |||||
| Third Gear | Direct Clutch, Forward Clutch, No. 2 Brake, Under-Drive Brake & Under-Drive One-Way Clutch | |||||
| OD (Fourth Gear) | Direct Clutch, Forward Clutch, No. 2 Brake & Under-Drive Clutch | |||||
| "2" (Intermediate) | ||||||
| First Gear | Forward Clutch, No. 2 One-Way Clutch Under-Drive Brake & Under-Drive One-Way Clutch | |||||
| Second Gear | Forward Clutch, No. 2 Brake, No. 1 One-Way Clutch, Under-Drive Brake Under-Drive One-Way Clutch & 2nd Coast Brake | |||||
| Third Gear (1) | Direct Clutch, Forward Clutch No. 2 Brake, Under-Drive Brake & Under-Drive One-Way Clutch | |||||
| "L" (Low) | ||||||
| First Gear | Forward Clutch, No. 3 Brake, No. 2 One-Way Clutch, Under-Drive One-Way Clutch & 1st & Reverse Brake | |||||
| Second Gear (2) | Forward Clutch, 2nd Coast Brake No. 2 Brake, No. 1 One-Way Clutch, Under-Drive Brake & Under-Drive One-Way Clutch | |||||
| "R" (Reverse) | Direct Clutch, Under-Drive Brake & 1st & Reverse Brake | |||||
| "N" (Neutral) | Under-Drive Brake | |||||
| "P" (Park) | Under-Drive Brake | |||||
|
||||||
