Disassembly (Transfer Right Case)

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 1994 Toyota MR2, 1993 Toyota MR2, 1993 Toyota Celica, 1992 Toyota MR2, and 1992 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.
  1. Check oil pump operation. Oil pump should turn smoothly with oil pump driven gear.
  2. Remove oil pump driven gear stopper. Remove oil pump cover, drive rotor and driven rotor. Remove relief valve and spring. On A-241H, remove level gauge guide plate. See Fig 1.

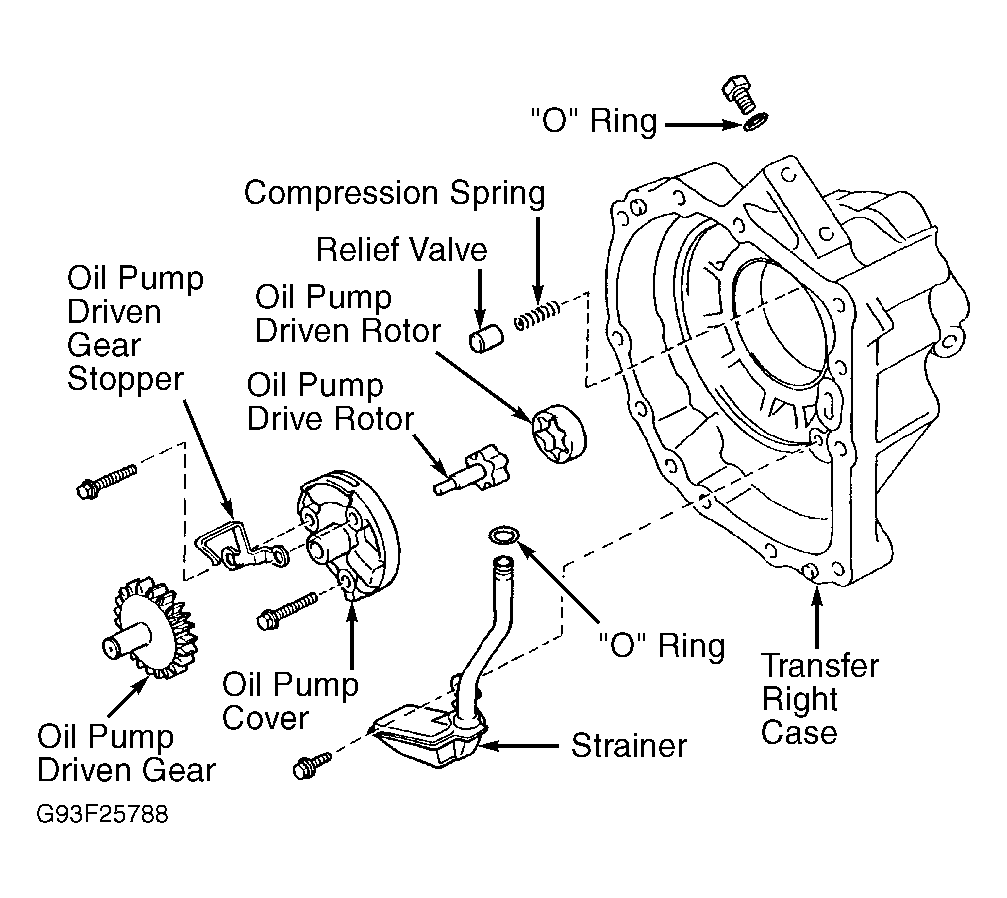

Fig 1: Exploded View Of Transfer Right Case
G93F25788Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
