Disassembly (Transfer Right Case Retainer)
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 1994 Toyota MR2, 1993 Toyota MR2, 1993 Toyota Celica, 1992 Toyota MR2, and 1992 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.
- Using a screwdriver, remove oil seal. Remove snap ring. Remove side gear shaft holder with a plastic hammer.

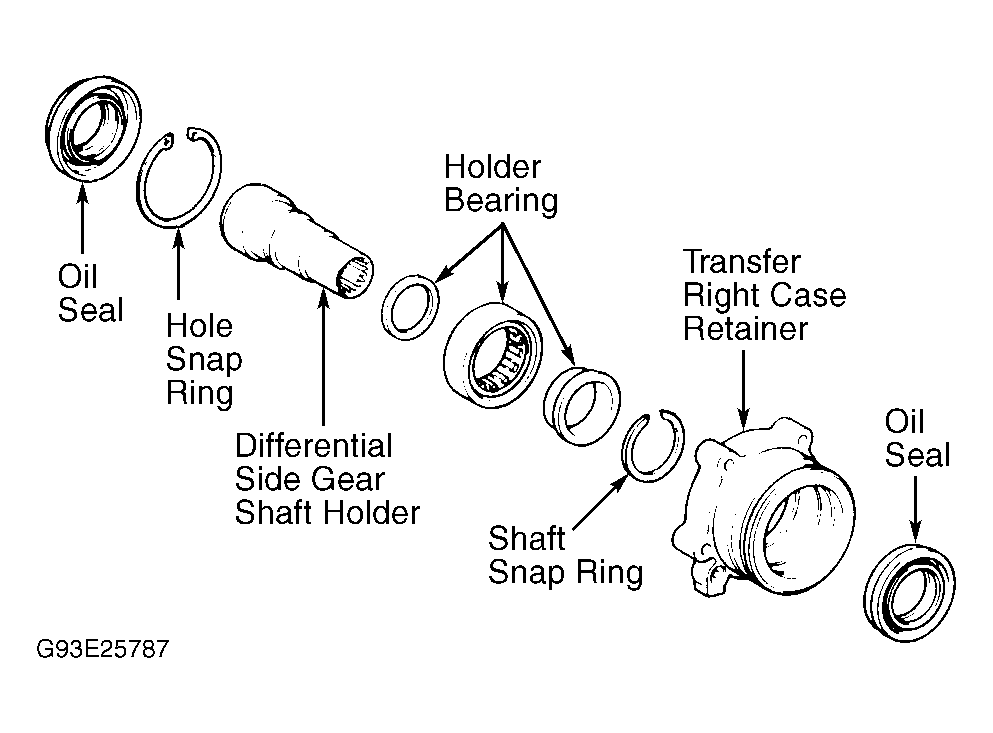

- Remove snap ring. Using an arbor press, remove holder bearing. Remove oil seal. See Fig 1.
