Disassembly (Transfer Left Case)

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 1994 Toyota MR2, 1993 Toyota MR2, 1993 Toyota Celica, 1992 Toyota MR2, and 1992 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.
  1. On A-241H, remove differential control clutch pressure apply tube. On both models, remove center differential control solenoid(s). Remove "O" rings from solenoid(s). See Fig 1.

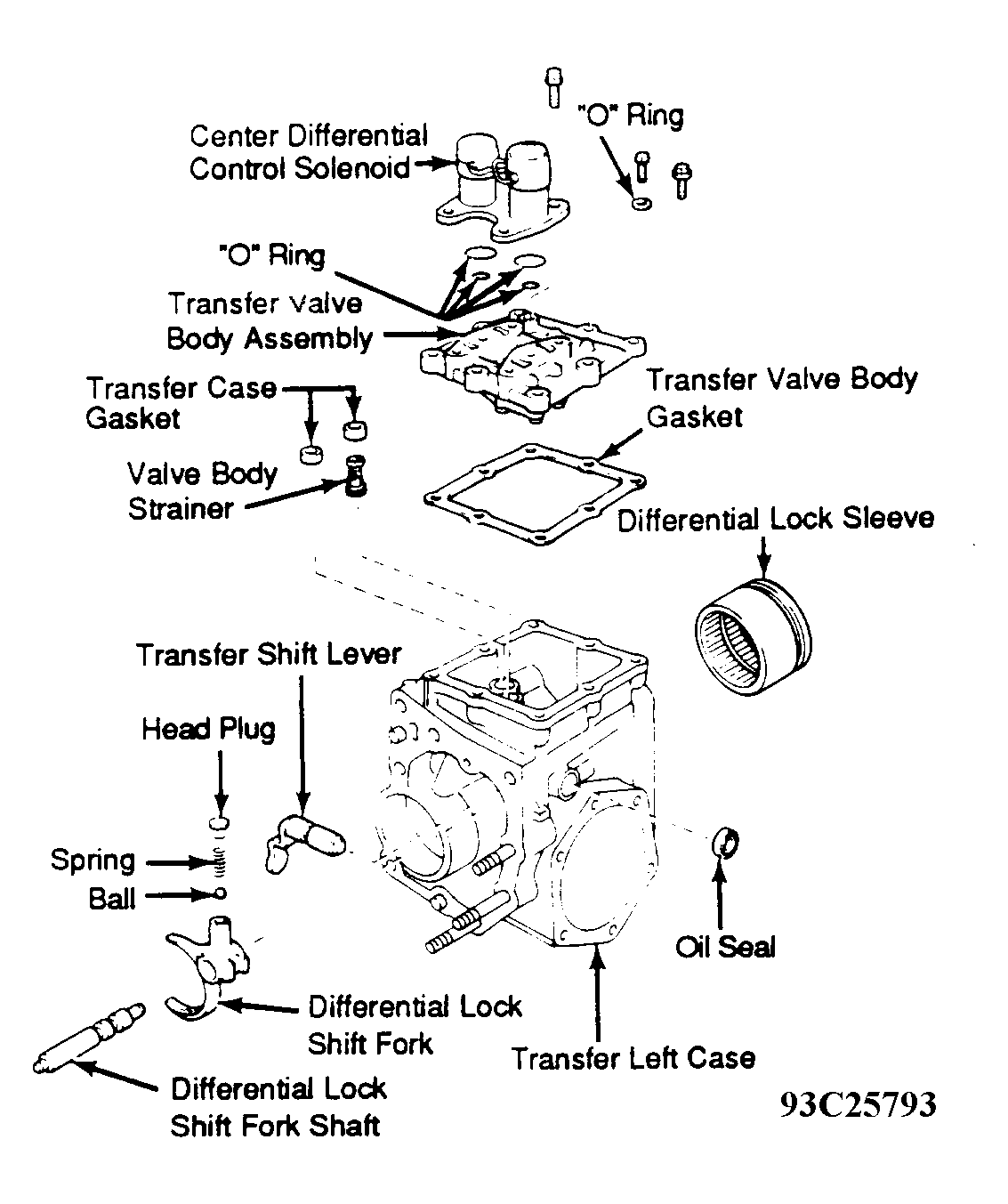

    Fig 1: Exploded View Of Transfer Left Case
    G93C25793Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

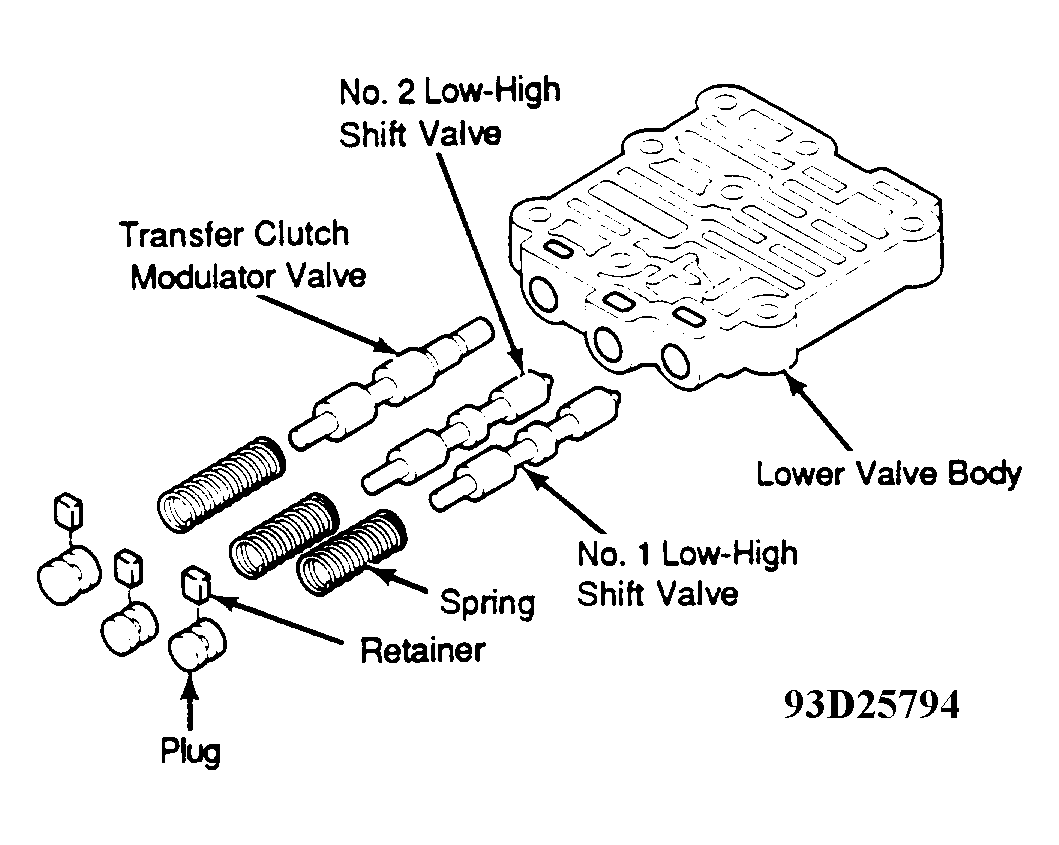

    Fig 2: Exploded View Of Transfer Lower Valve Body
    G93D25794Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. Remove lock bolt and transfer shift lever. Remove oil seal. Remove shift fork shaft, shift fork and sleeve. Remove head plug, spring and ball. Remove shift fork shaft from shift fork.
  3. Remove clutch control valve sleeve cover. Remove clutch control valve and sleeve. Remove oil strainer from sleeve.
