Disassembly (Transfer Case Driven Pinion Bearing Cage)

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 1994 Toyota MR2, 1993 Toyota MR2, 1993 Toyota Celica, 1992 Toyota MR2, and 1992 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.

Using chisel and hammer, unstake lock nut. Using Lock Nut Wrench (09326-20011), remove lock nut. Use soft jaws for holding driven pinion in vise.
Remove driven pinion, rear side bearing and spacer with arbor press. Using Bearing Remover (09950-00020), remove front side housing. Using brass bar and hammer, remove bearing outer races. See Fig 1.
On A-241H, use low air pressure to remove oil plug and oil strainer. Remove "O" ring from oil plug.

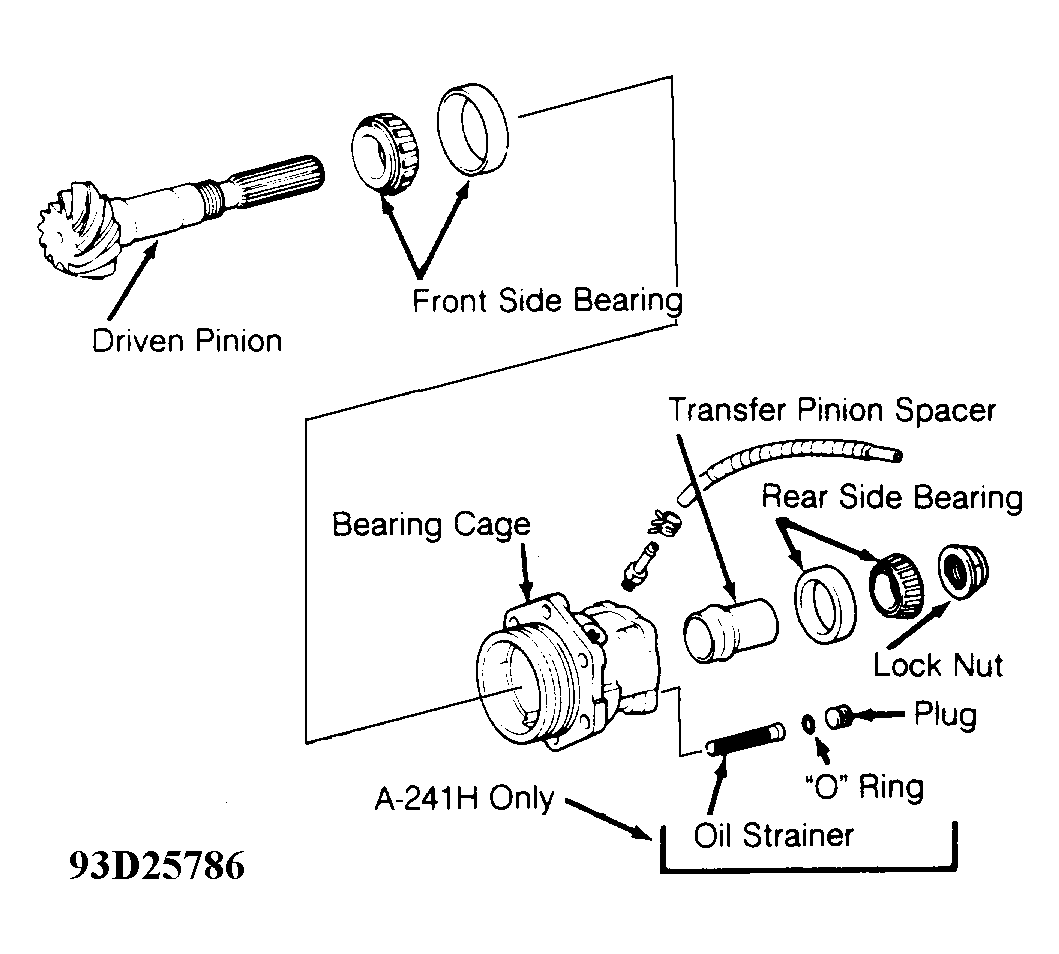

Fig 1: Exploded View Of Transfer Driven Pinion Bearing Cage (A-241H Shown; A-540H Is Similar)
