Rear Planetary Gear: Disassembly

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 1994 Toyota MR2, 1993 Toyota MR2, 1993 Toyota Celica, 1992 Toyota MR2, and 1992 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.

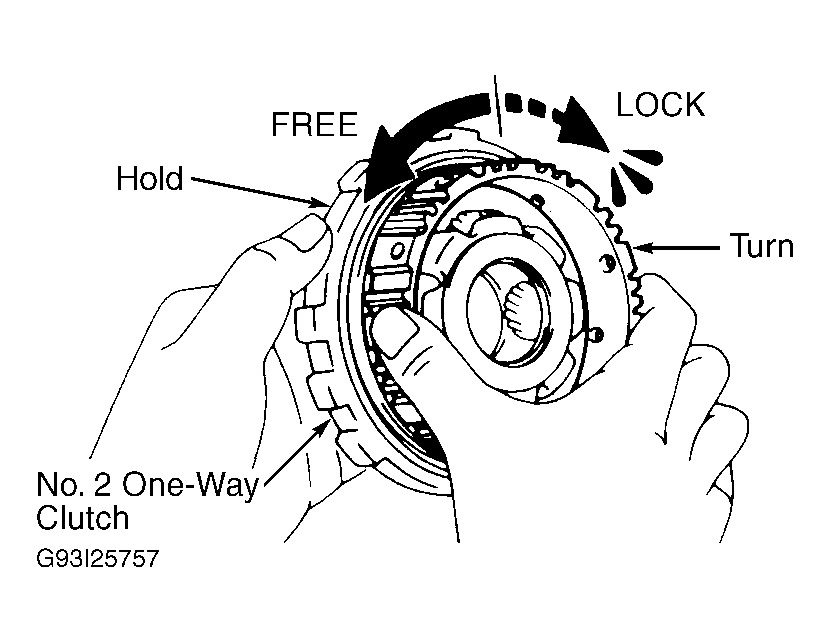

  1. Check operation of No. 2 one-way clutch. Hold outer race and turn hub. Hub should turn freely counterclockwise and should lock when turned clockwise. See Figure. Separate No. 2 one-way clutch and rear planetary gear.
  2. Remove thrust washers from both sides of planetary gear. Remove snap rings and retainers from both sides. Remove No. 2 one-way clutch from outer race. See Figure.
