Front Planetary Gear: Reassembly

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 1994 Toyota MR2, 1993 Toyota MR2, 1993 Toyota Celica, 1992 Toyota MR2, and 1992 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.

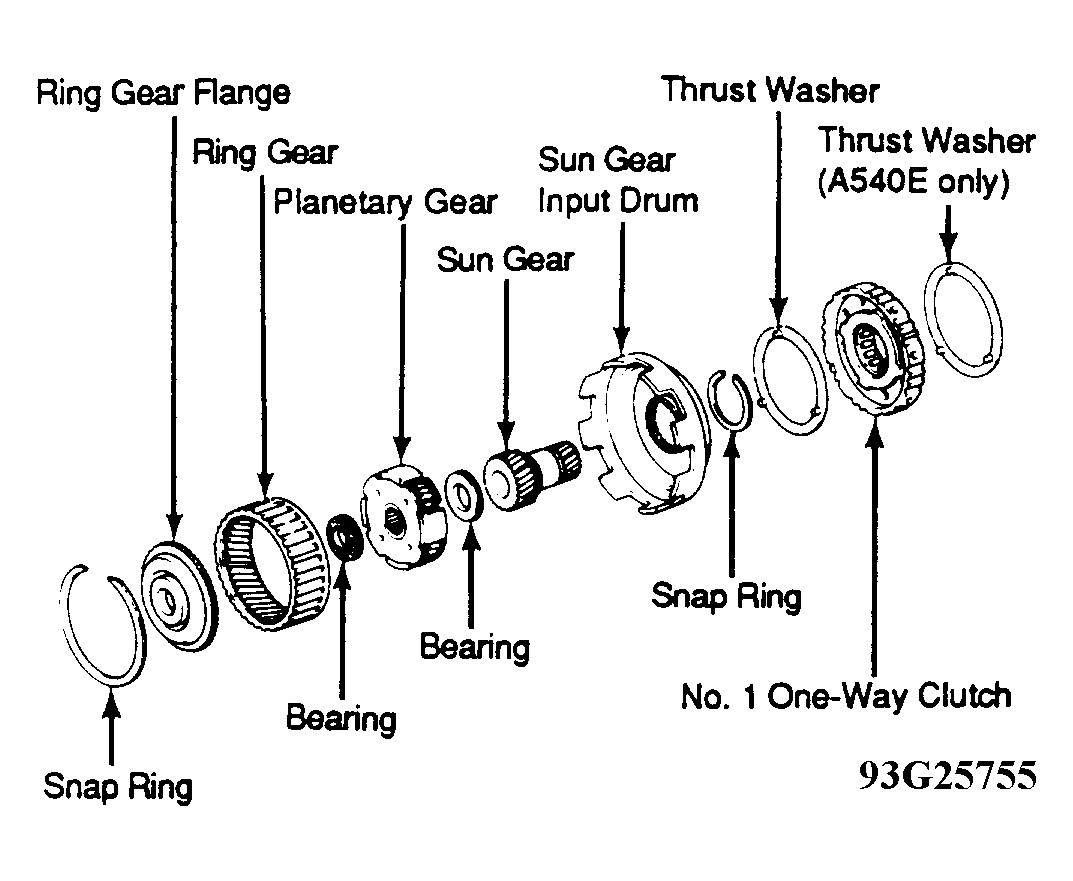

  1. Position flange into ring gear. Using a screwdriver, install snap ring. See Figure.
  2. Install shaft snap ring on sun gear. Install sun gear input drum on sun gear. Install shaft snap ring. Install thrust washer on sun gear input drum.
  3. While turning hub clockwise, slide one-way clutch on sun gear. Recheck operation of one-way clutch.
