Reassembly (Control Valve Assembly A-241 Series)

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 1994 Toyota MR2, 1993 Toyota MR2, 1993 Toyota Celica, 1992 Toyota MR2, and 1992 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.

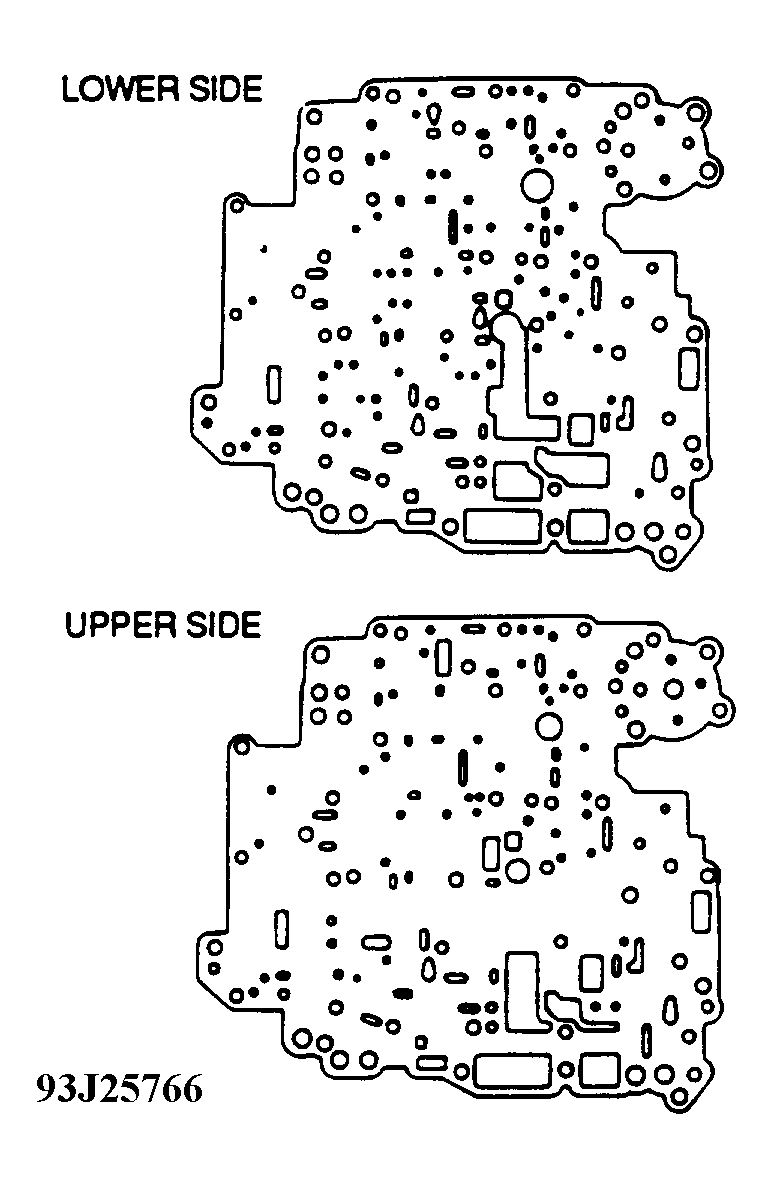

  1. Position proper gasket and plate on lower valve body. See Figure.
  2. Place lower valve body with plate and gaskets on upper valve body. Hold lower valve body, gaskets and plate securely to prevent plate from separating during installation. Align valve body bolt holes with gaskets and plate.
  3. Install and finger tighten bolts in lower valve body to secure upper valve body. Ensure correct length bolts are installed in original positions. See Fig 1.
  4. Install and finger tighten bolts in upper valve body. Ensure correct length bolts are installed in original positions. See Fig 2. Install strainer, new gaskets and plate.
  5. Install lower valve body cover bolts. See Fig 3. Tighten upper and lower valve body bolts to 56 INCH lbs. (6.4 N.m).

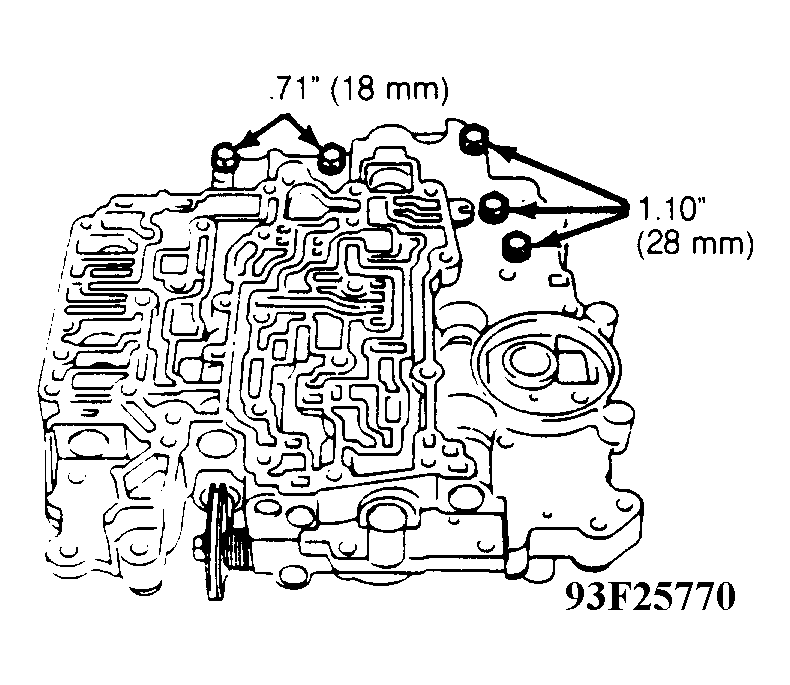

Fig 1: Installing Lower Valve Body Bolts
G93F25770Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

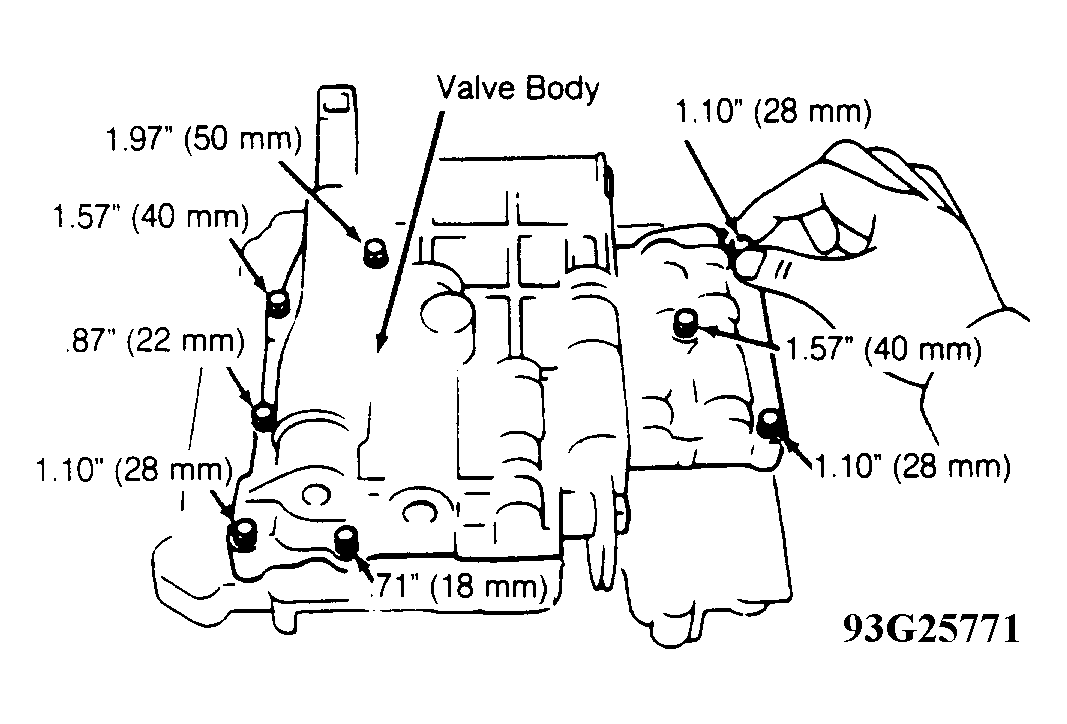

Fig 2: Installing Upper Valve Body & Cover Bolts
G93G25771Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

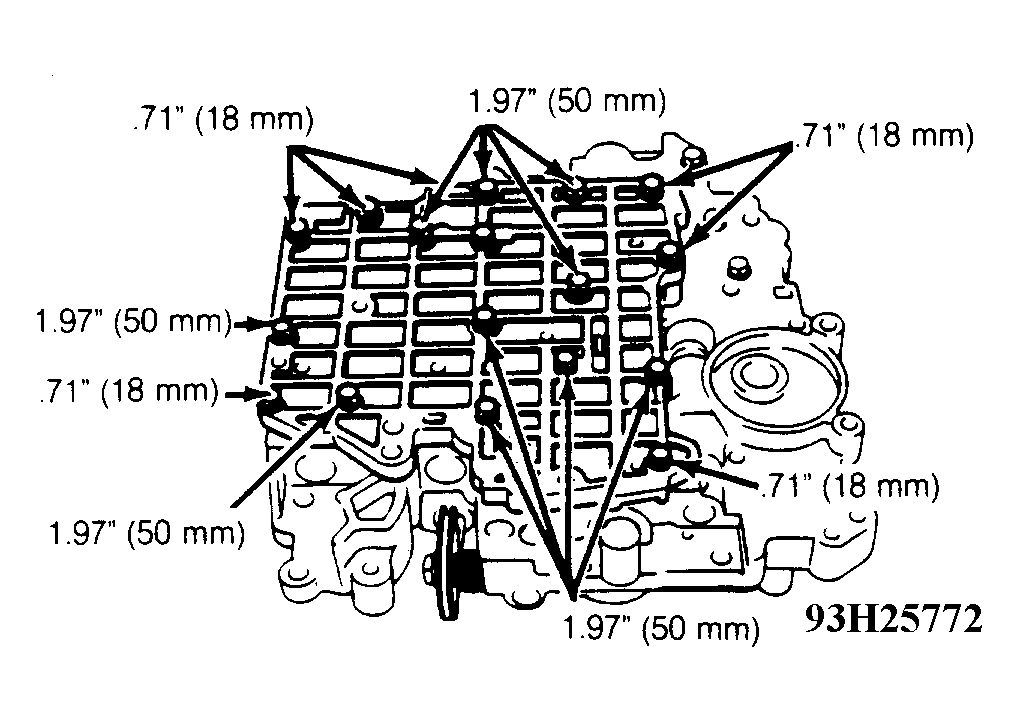

Fig 3: Installing Lower Valve Body Cover Bolts
G93H25772Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
