Disassembly (Upper Valve Body A-241H)
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 1994 Toyota MR2, 1993 Toyota MR2, 1993 Toyota Celica, 1992 Toyota MR2, and 1992 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.
- Remove throttle valve retainer and check balls. Note which step from end of primary regulator valve sleeve contacts valve body.

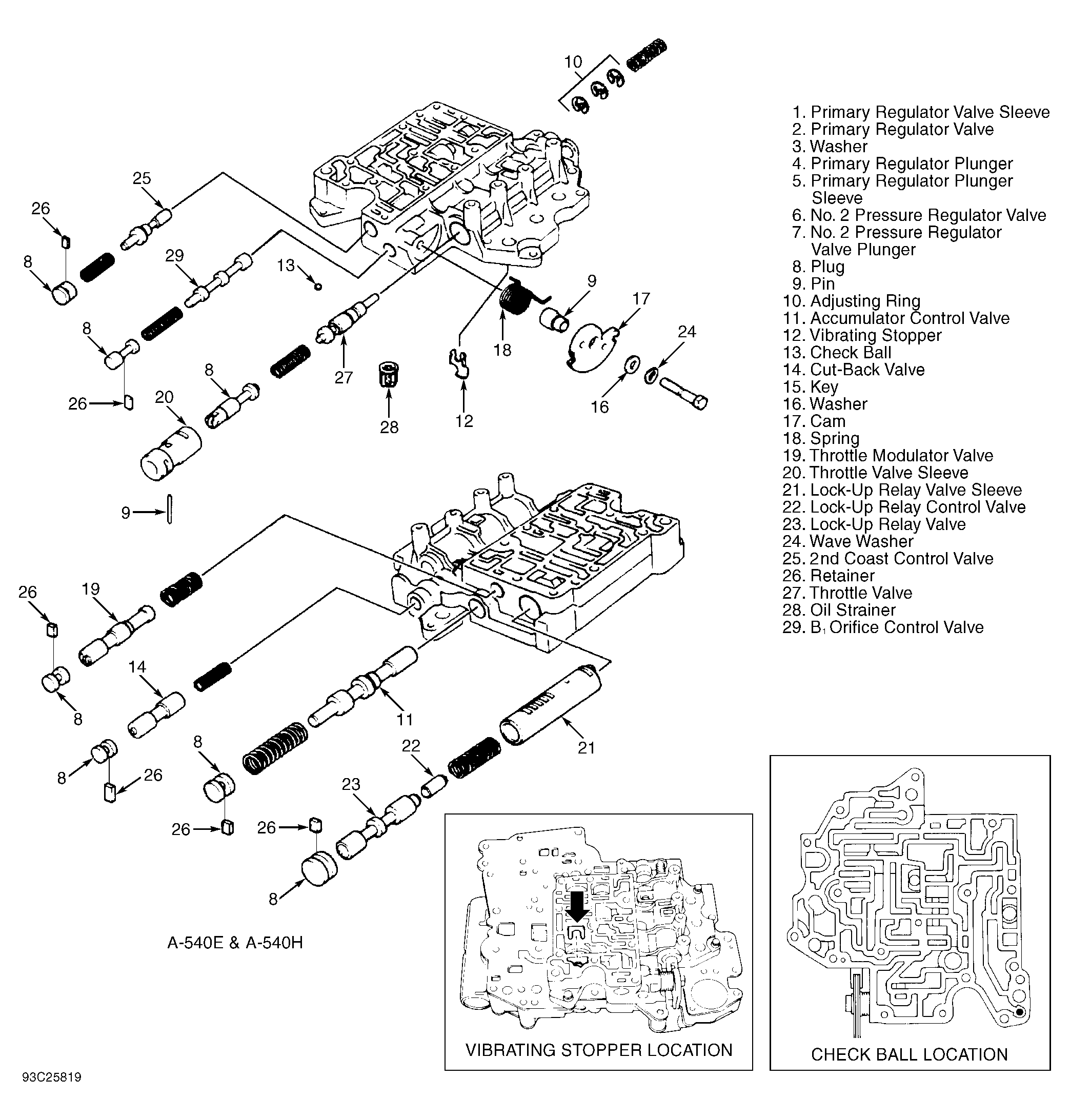

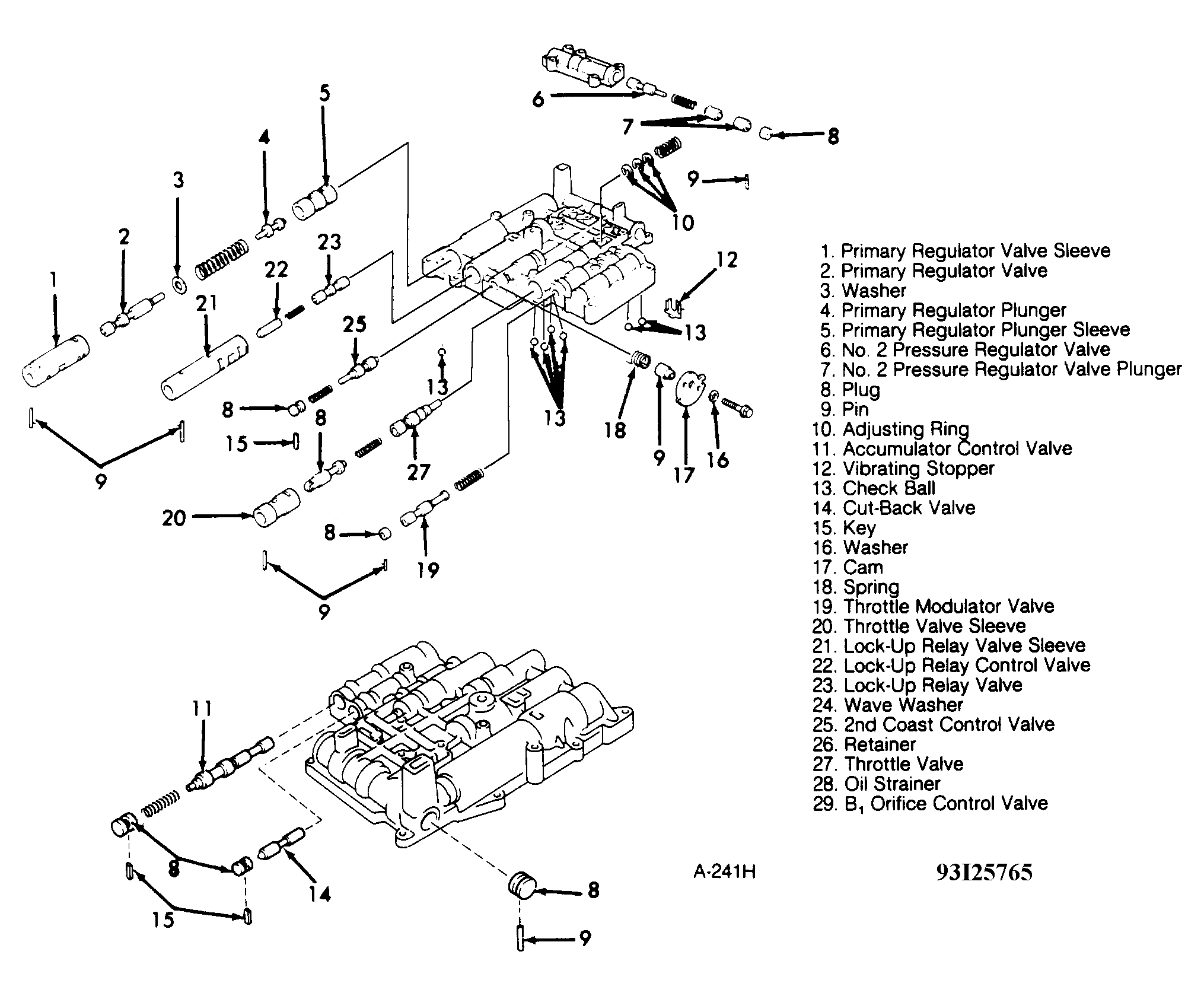

- Push primary regulator valve sleeve inward and remove pin. Remove valve sleeve, primary regulator valve, valve plunger, plunger sleeve, shim and spring. See Fig 1.
- Remove lock-up relay valve. Remove control sleeve lock-up relay valve, spring and release valve. Remove 2nd coast or low coast valve and spring. Remove throttle cam, collar and spring.
- Remove throttle valve sleeve, kickdown valve or downshift plug, throttle valve and spring. Remove spring and adjusting shims. Note number of shims for reassembly reference. Remove throttle modulator valve.
- Remove accumulator control valve. Remove cut-back valve. Remove manual valve pin and plug.
- Remove No. 2 pressure regulator valve. Remove plug, plungers, valve and spring.
