Disassembly (Control Valve Assembly)
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 1994 Toyota MR2, 1993 Toyota MR2, 1993 Toyota Celica, 1992 Toyota MR2, and 1992 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.

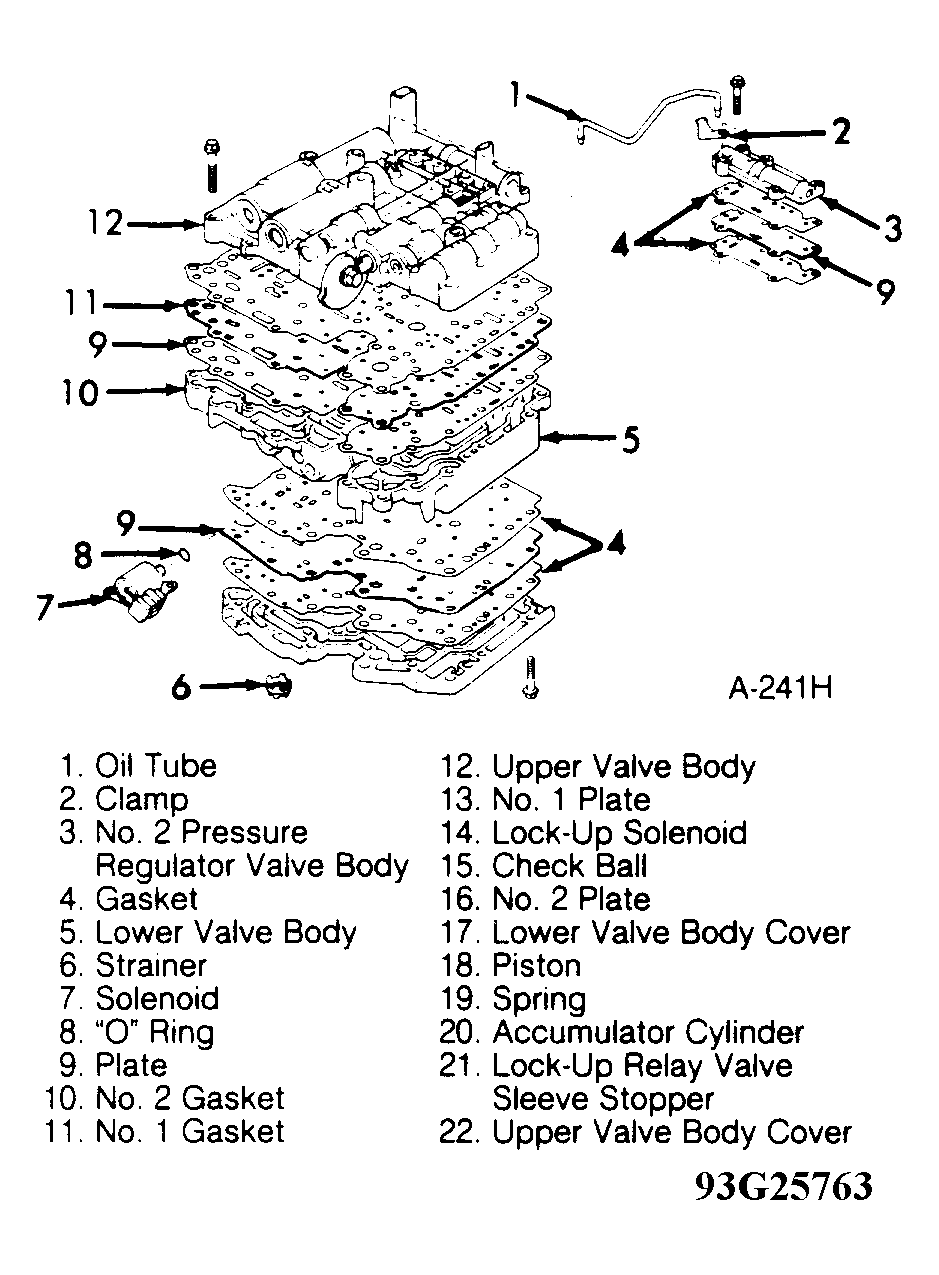

- On A-241H models, remove tube clamp and oil tube, No. 2 pressure regulator valve body, gasket and plate from upper valve body. See Fig 1. On all models, remove solenoid(s). See Fig 1. DO NOT use a screwdriver to pry up solenoid(s). Remove "O" ring(s) from solenoid(s).
- On A-241H, remove lower valve body cover, gasket and plate. Remove oil strainer (if installed).

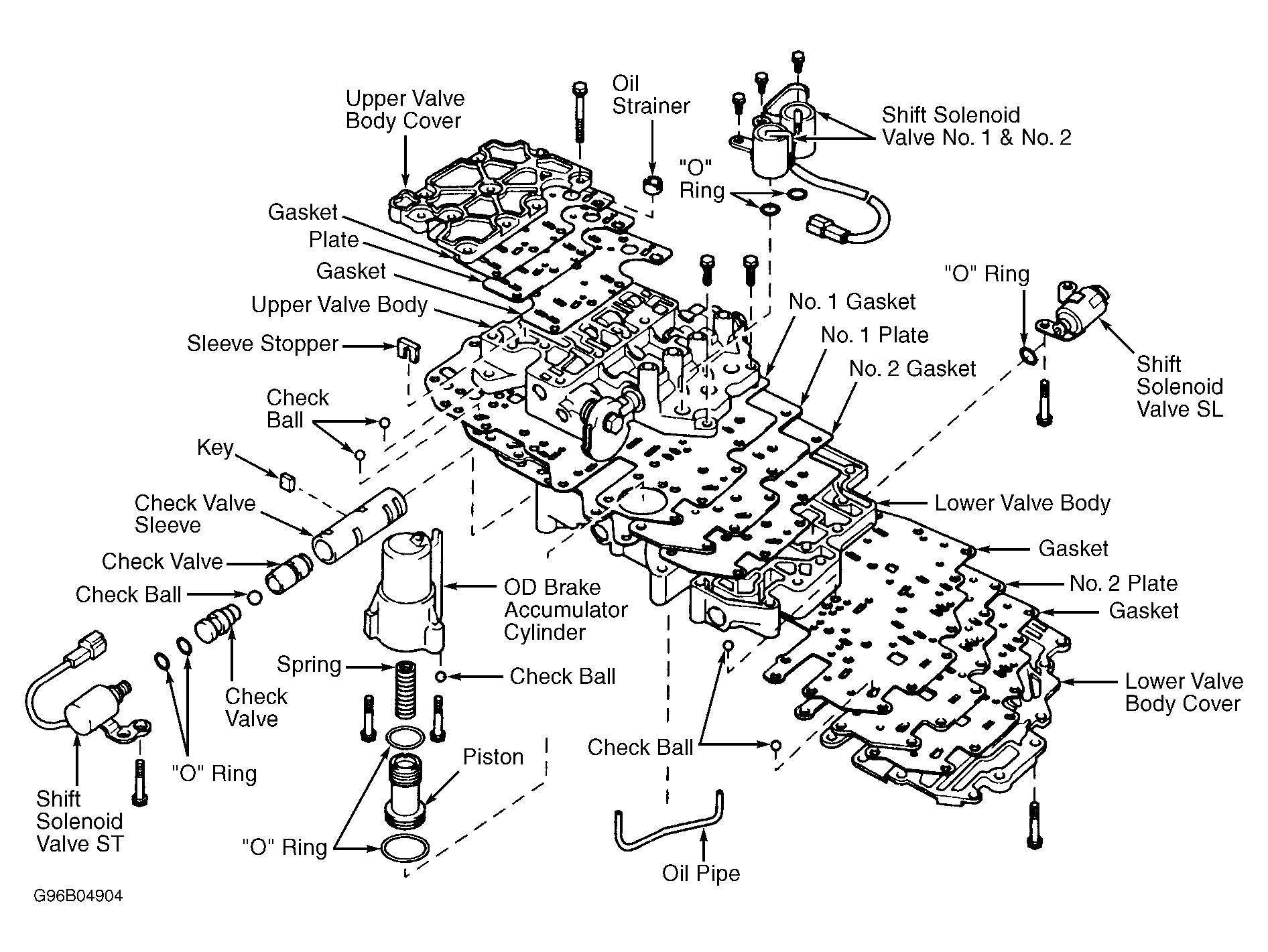

- Remove bolts from upper valve body and cover. Note bolt length and location for reassembly reference. Remove upper valve body cover, oil strainer, gaskets and plate. On A-241H, remove lock-up relay valve pin.
- Remove bolts from lower valve body and cover. Carefully remove lower valve body cover gaskets and plate. Note location of check balls, retainers, keys and pins in valve body.
