2ND Brake: Reassembly

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 1994 Toyota MR2, 1993 Toyota MR2, 1993 Toyota Celica, 1992 Toyota MR2, and 1992 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.

Coat NEW "O" rings with ATF. Install 2 "O" rings on piston. Press piston into drum, being careful not to damage "O" rings. Install discs, plates and flange.

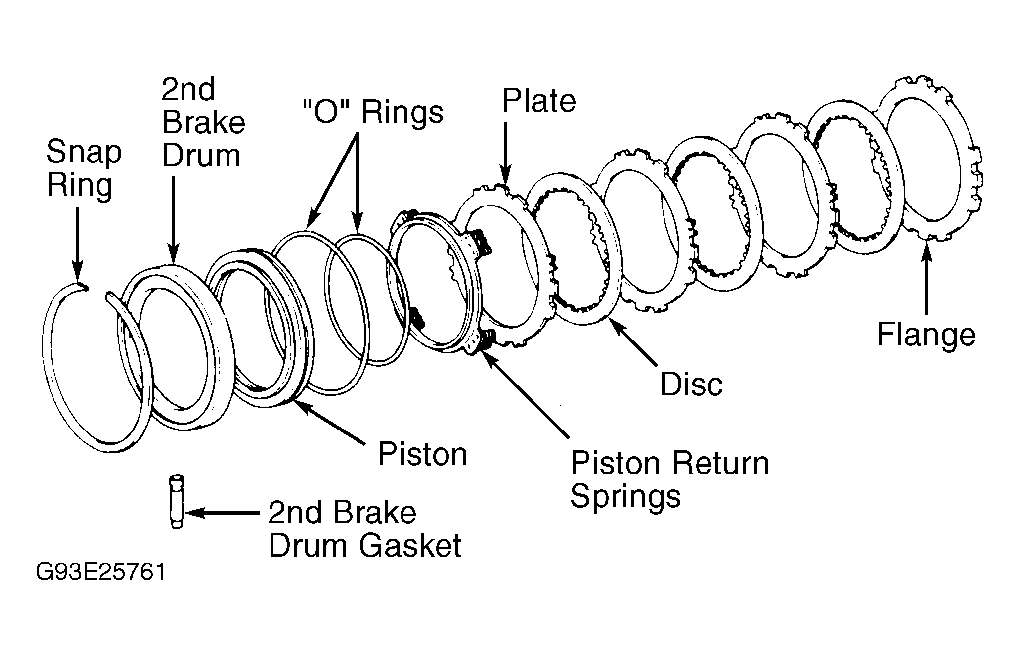

Fig 1: Exploded View Of 2nd Brake (A-540H Shown; A-241H Similar)
G93E25761Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
