1ST & Reverse Brake: Reassembly

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 1994 Toyota MR2, 1993 Toyota MR2, 1993 Toyota Celica, 1992 Toyota MR2, and 1992 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install NEW "O" rings on piston. Coat rings with ATF. Install piston in bore of case, facing spring seats upward. Place base of spring compressor under case. Install piston return springs and retainer. Set snap ring in place.
  2. Compress piston return springs slowly and evenly to allow installation of snap ring. DO NOT  overtighten bolt, as it will cause spring retainer to bend.

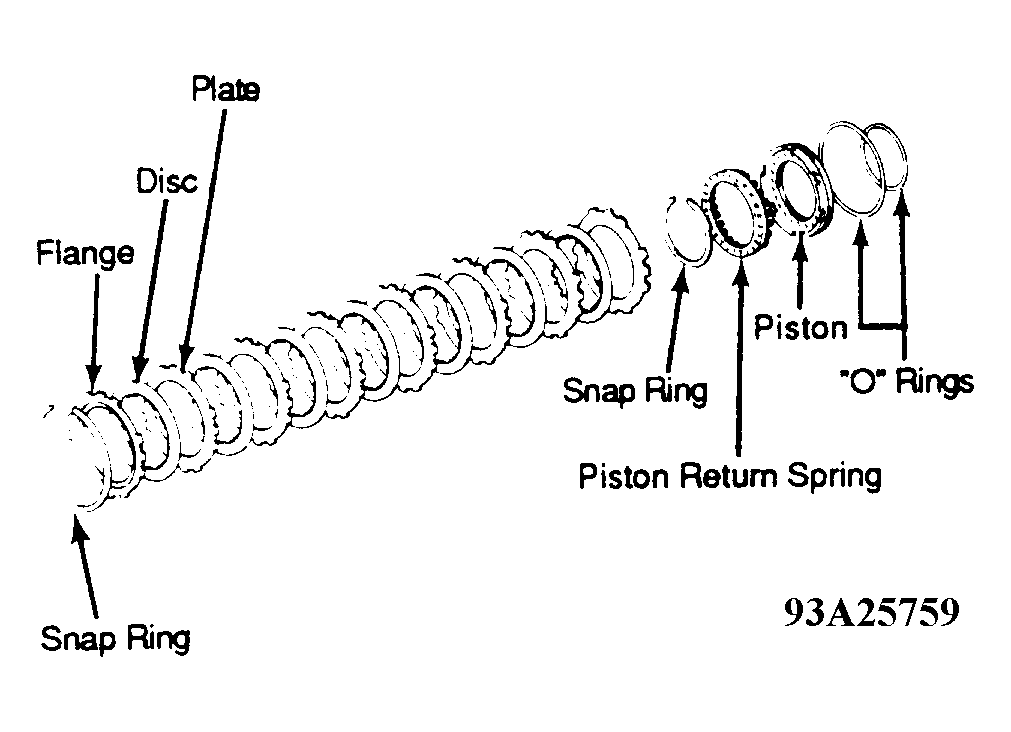

  3. Push snap ring in place with fingers. Ensure snap ring is fully seated and centered on 3 lugs of spring retainer. Ensure end gap of ring is not aligned with spring retainer claw. Remove compressor tool. Install discs, plates and flange. See Figure.
