Land Cruiser

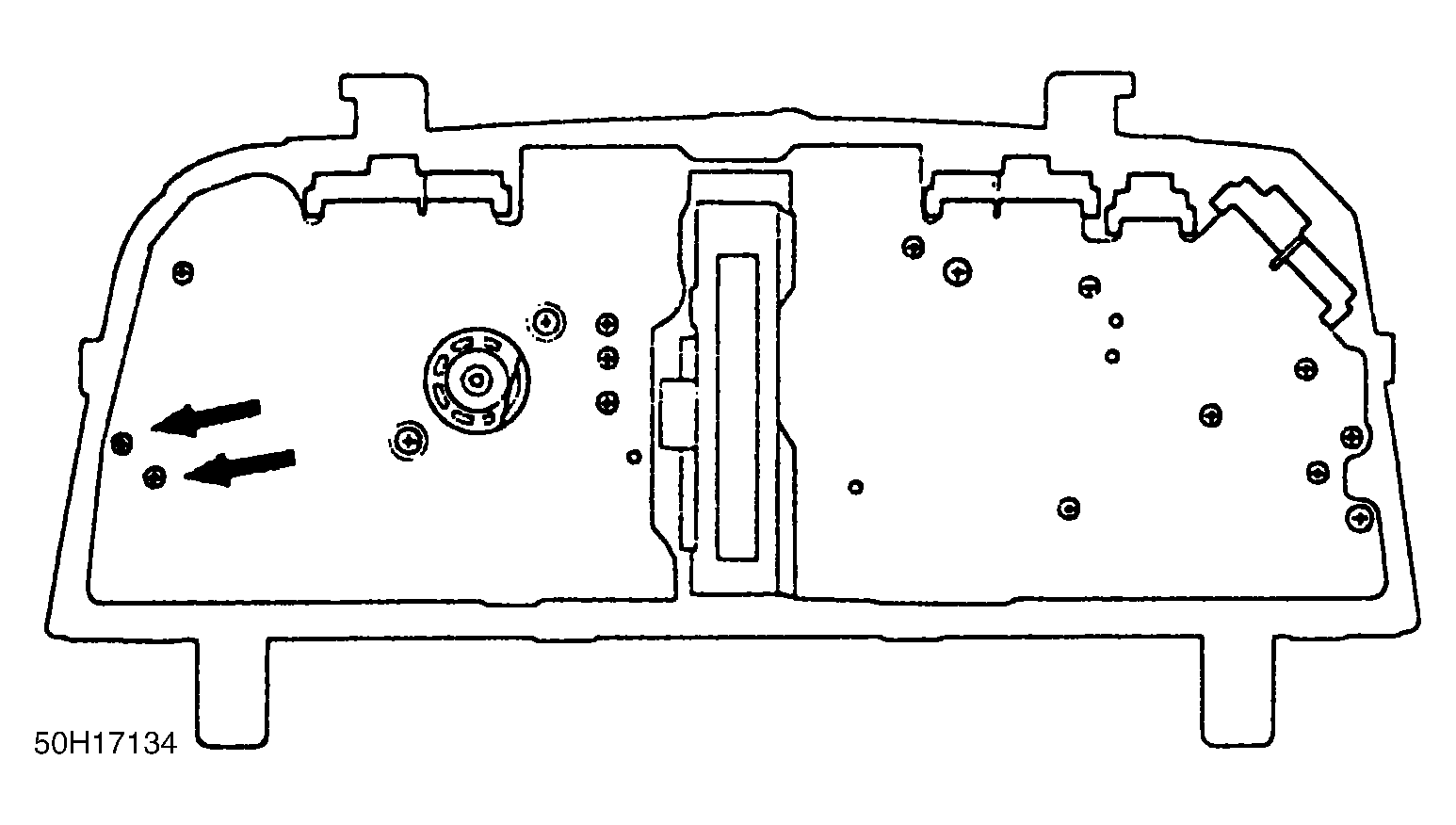

Remove instrument cluster and disconnect harness connector. Measure resistance across voltmeter test screws. See Fig 1. Resistance should be approximately 90-110 Ohms. If resistance is not as specified, replace voltmeter.
Remove instrument cluster and disconnect harness connector. Measure resistance across voltmeter test screws. See Fig 1. Resistance should be approximately 90-110 Ohms. If resistance is not as specified, replace voltmeter.
