All Other Models

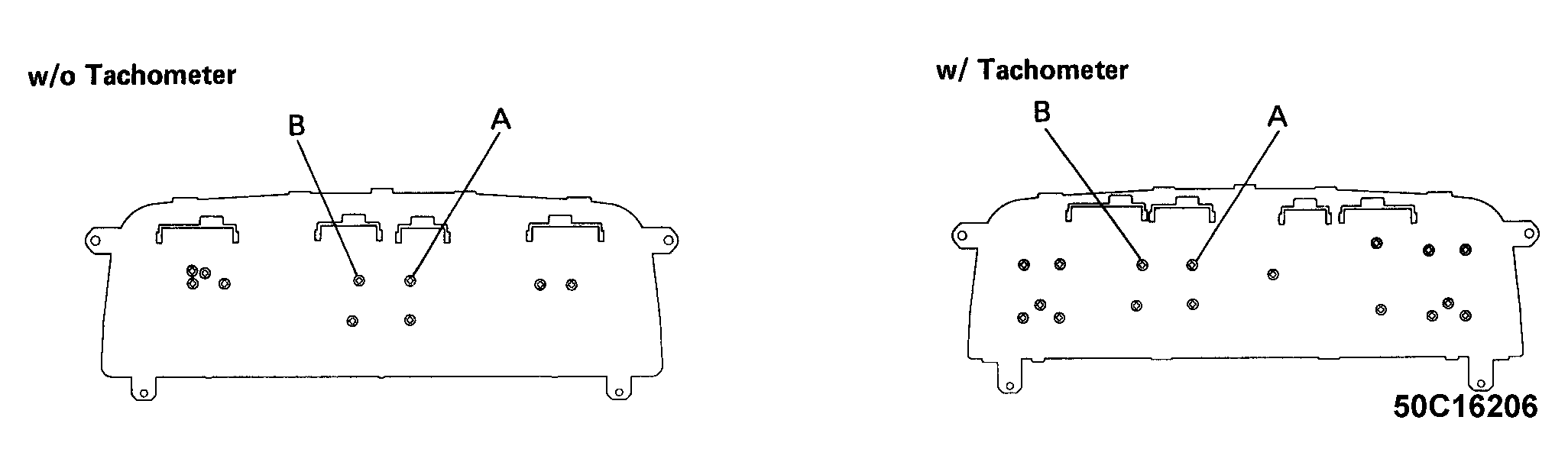

Inspect speed sensor for continuity between terminals A and B four times per revolution of speedometer shaft. See Fig 3 through Fig 5 . If continuity is not present, replace speedometer.

Fig 1: Speed Sensor Testing - Previa

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Speed Sensor Testing - Camry

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Speed Sensor Testing - Land Cruiser

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Speed Sensor Testing - Pickup & 4Runner

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 5: Speed Sensor Testing - Celica, Corolla, Cressida, MR2 & Paseo

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
