Instrument Cluster: Installation

To install, reverse removal procedure. Before installing steering wheel, center spiral cable.

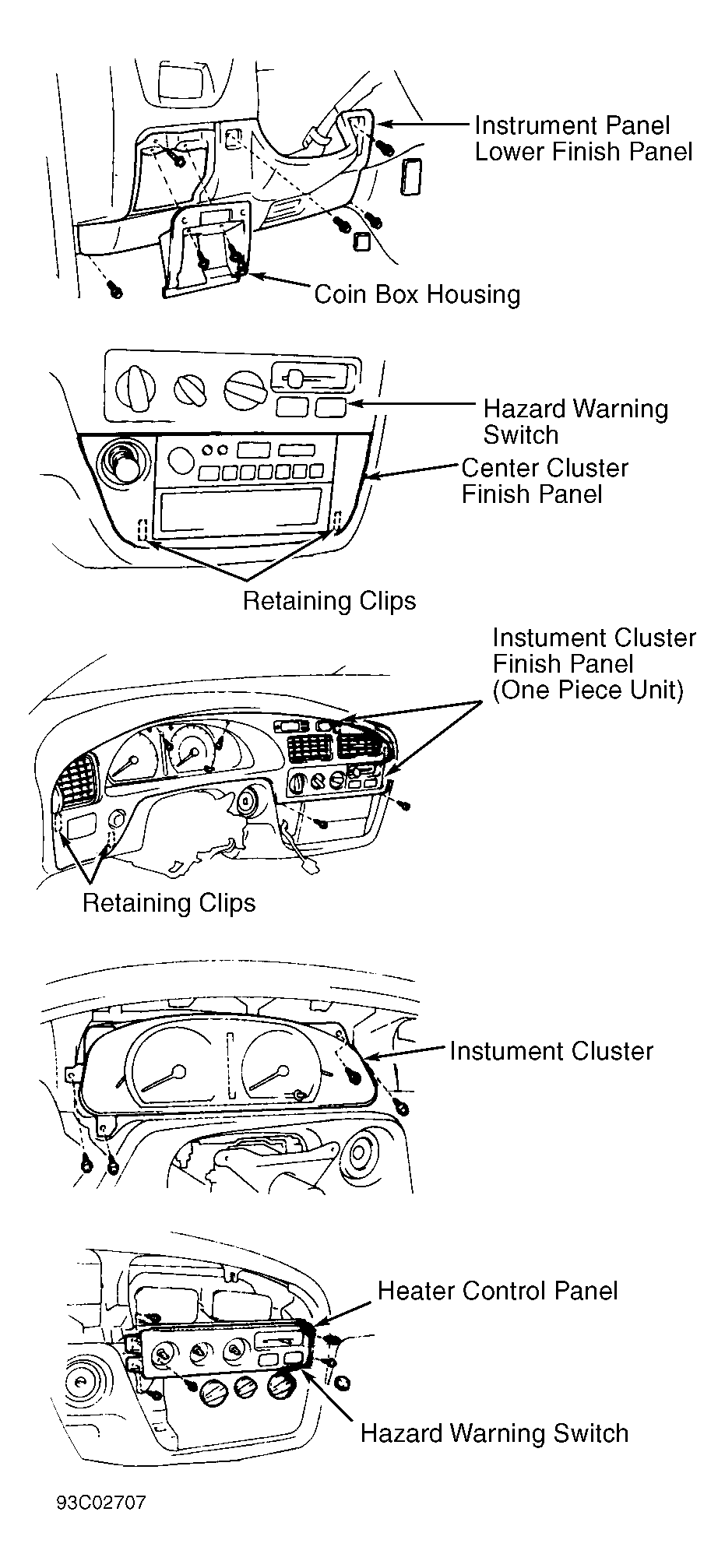

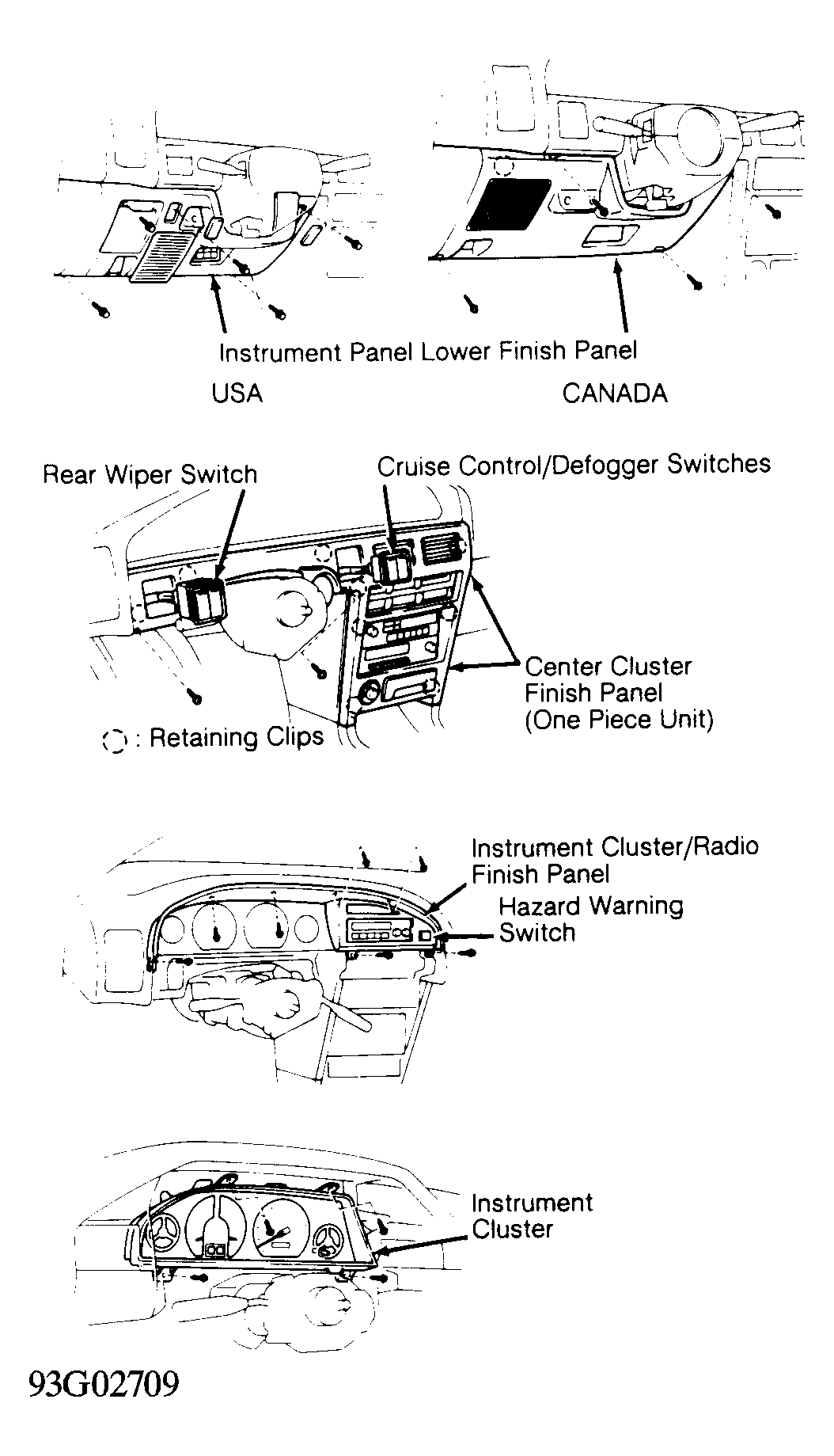

Fig 1: Removing Instrument Cluster (Camry)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

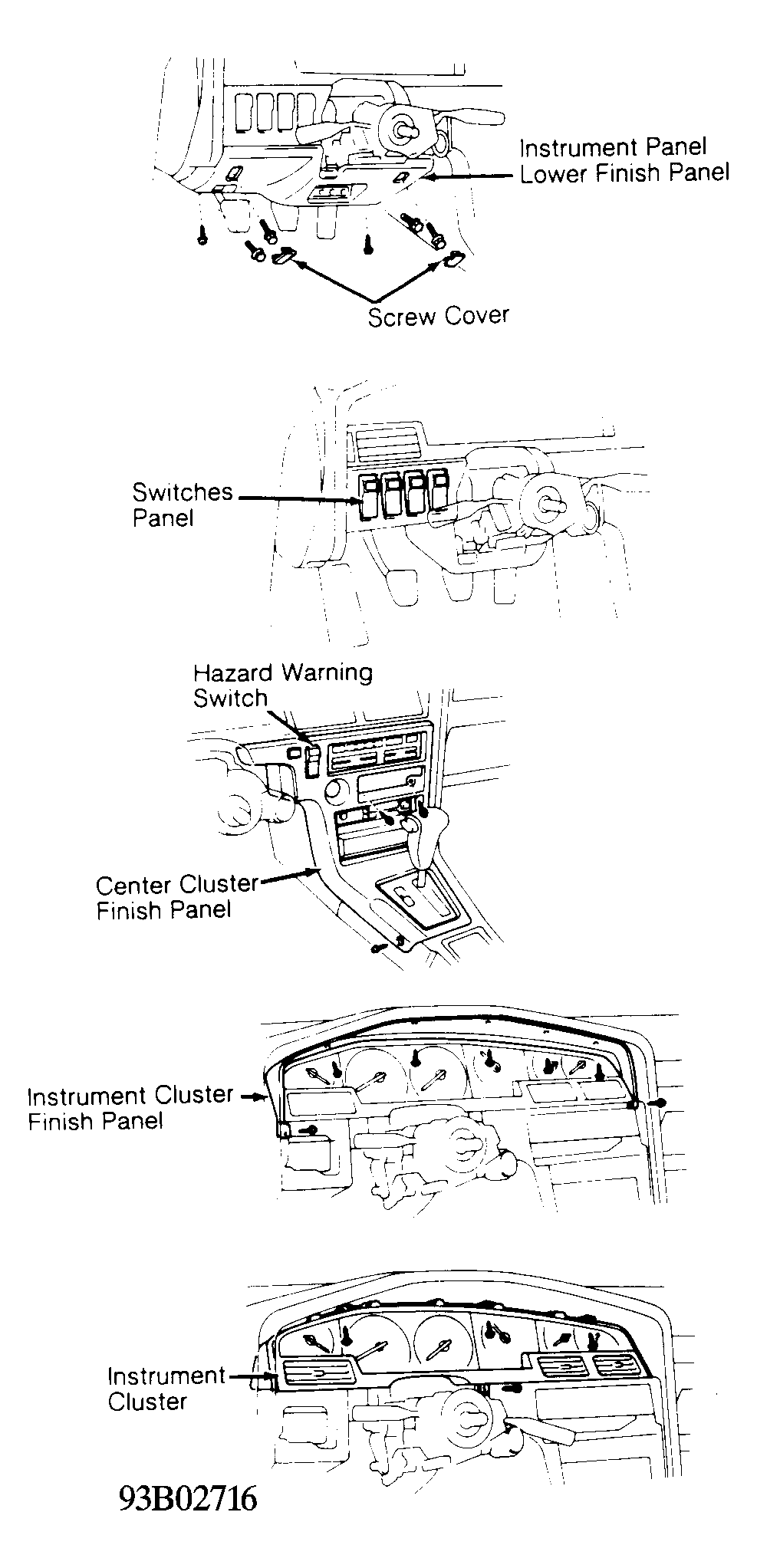

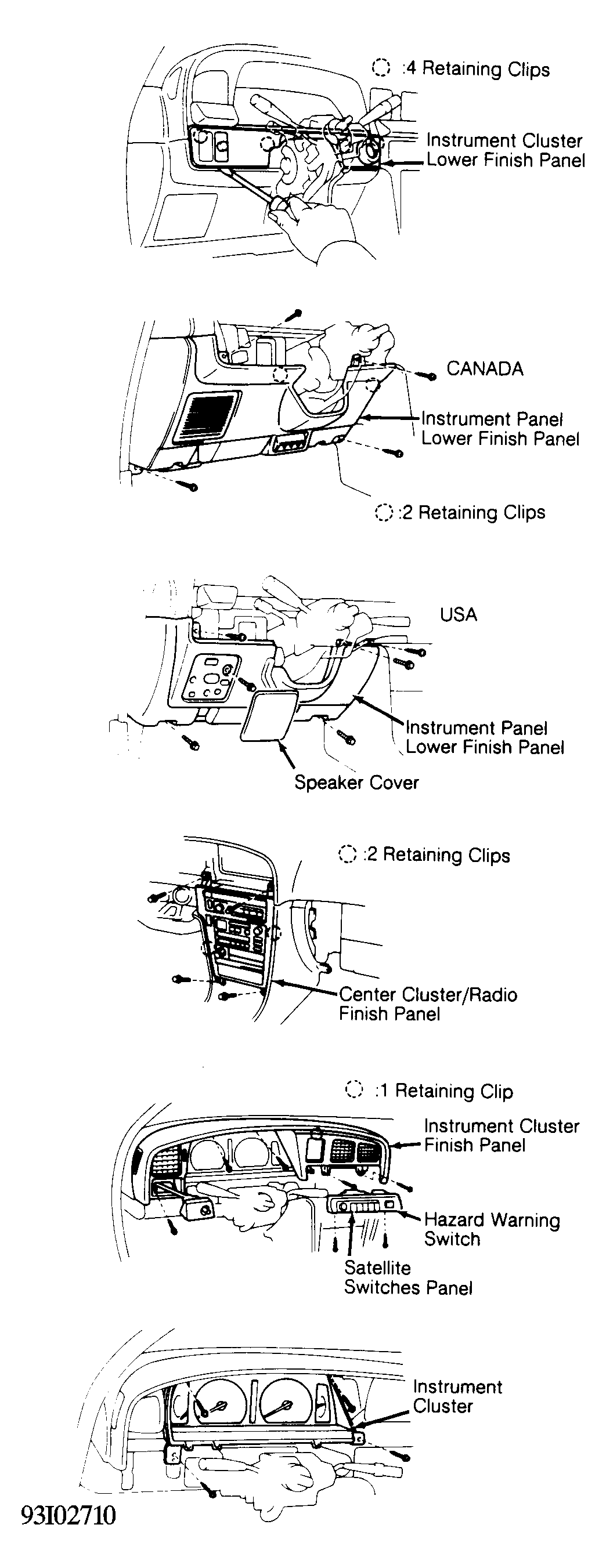

Fig 2: Removing Instrument Cluster & Hazard Warning Switch (Celica)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

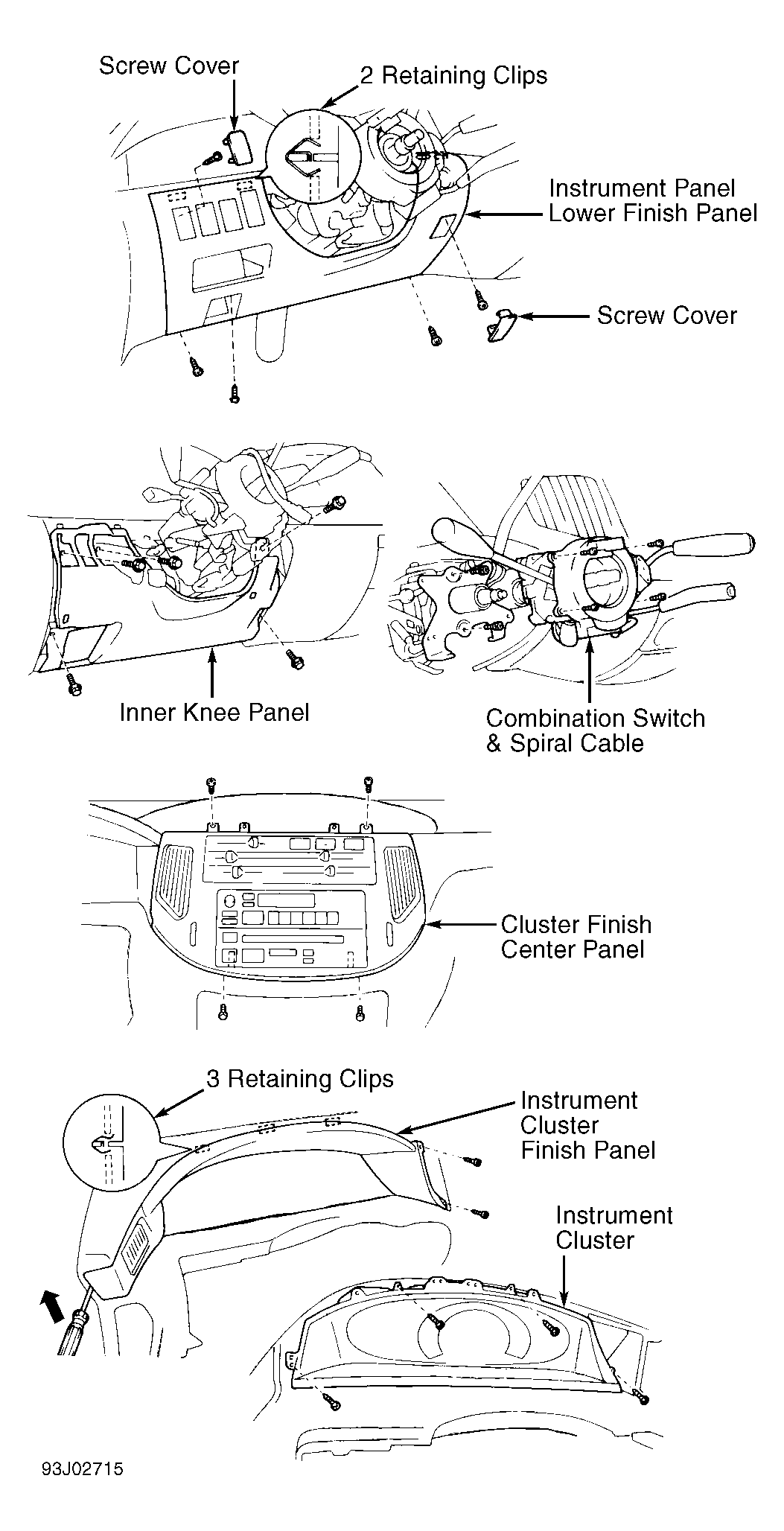

Fig 3: Removing Instrument Cluster (Corolla)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

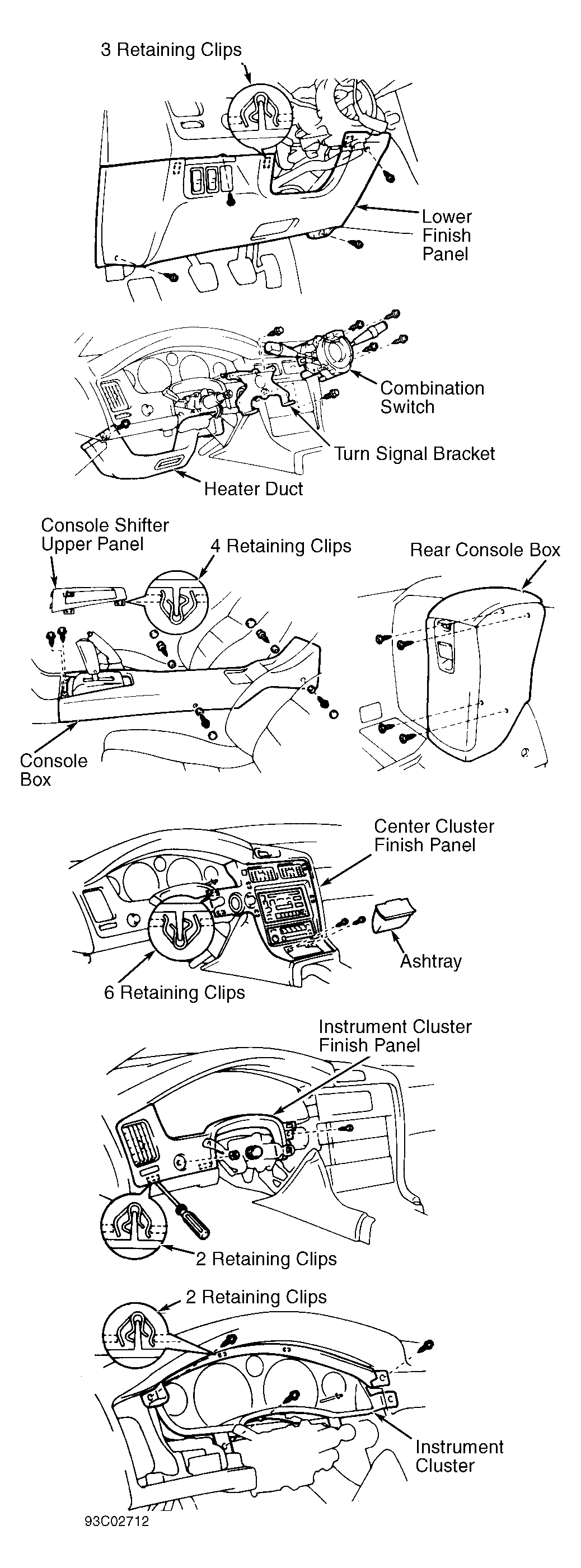

Fig 4: Removing Instrument Cluster (Cressida)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

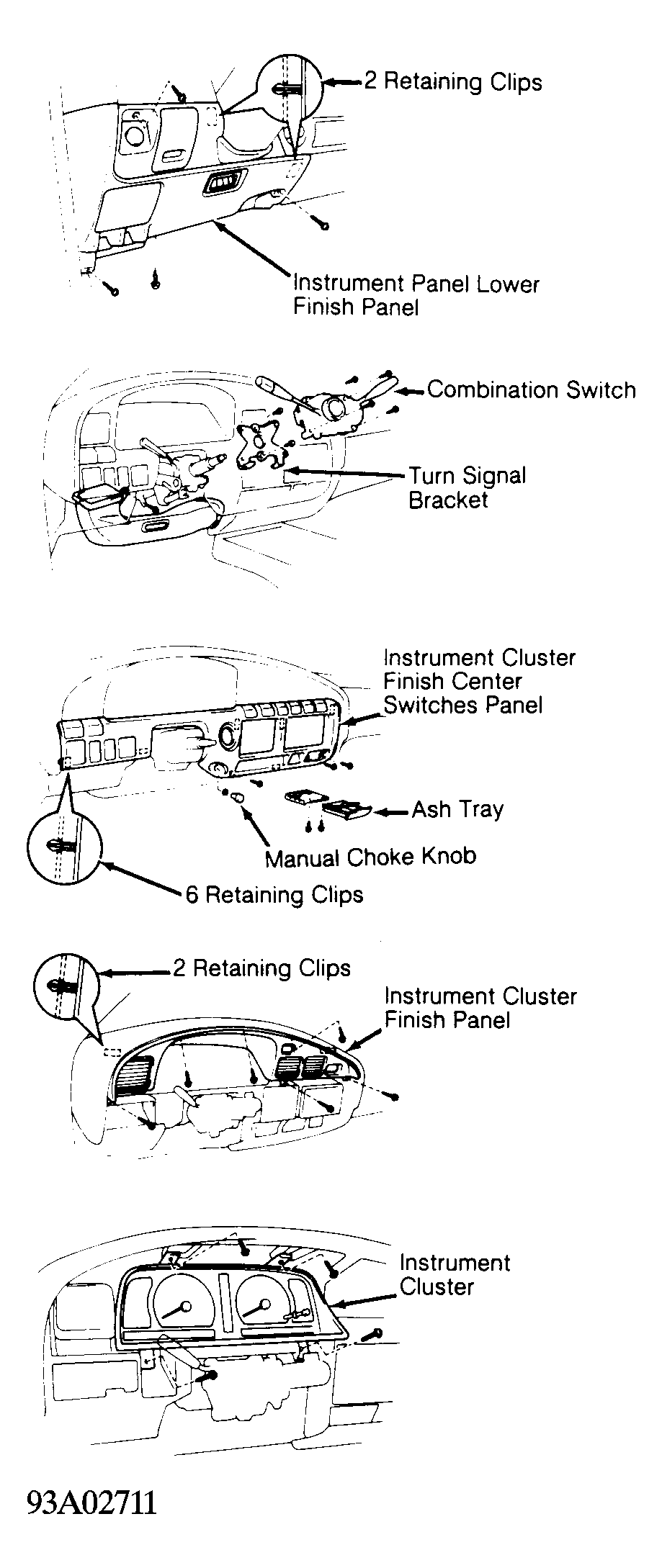

Fig 5: Removing Instrument Cluster (Land Cruiser)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

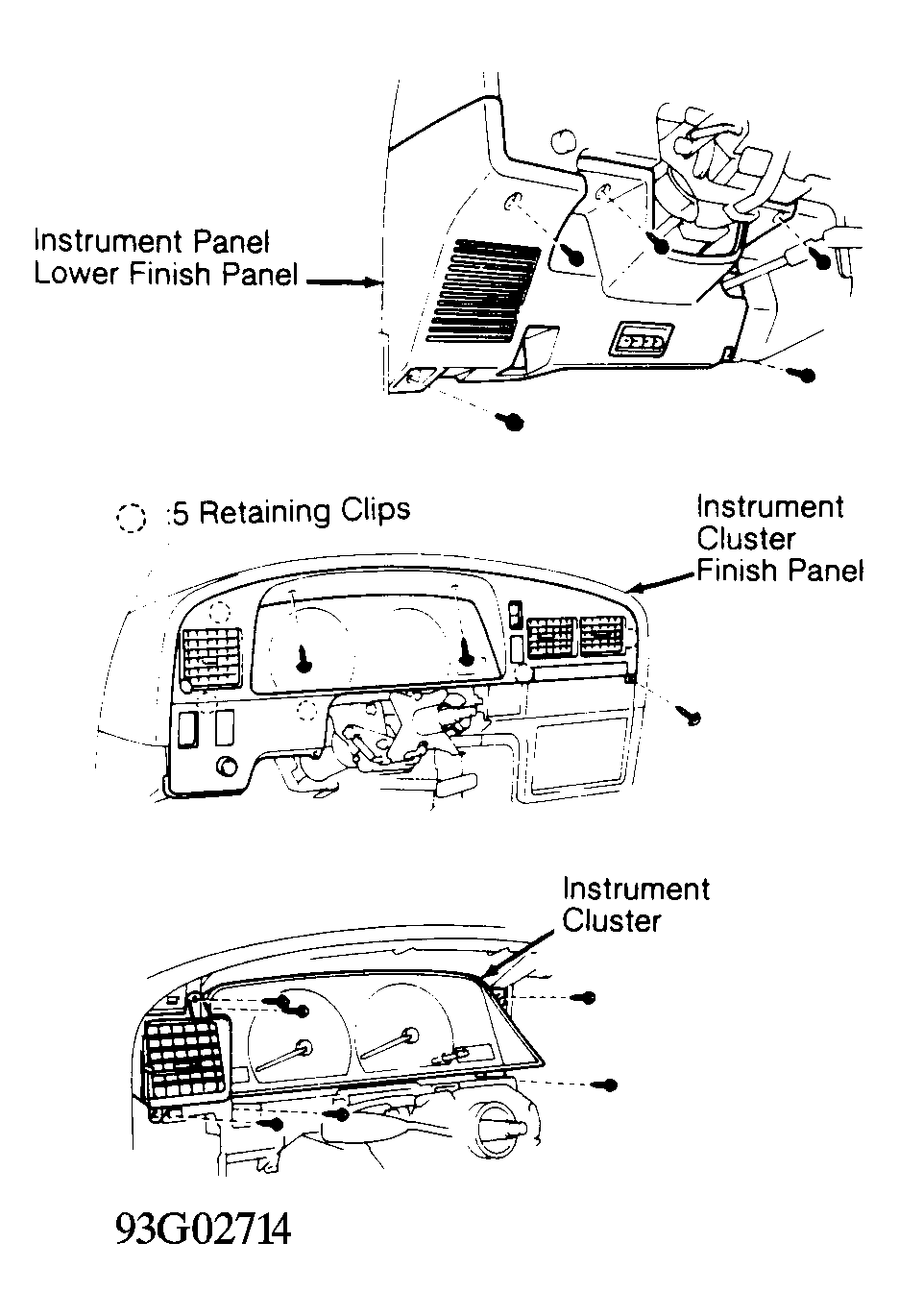

Fig 6: Removing Instrument Cluster (MR2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

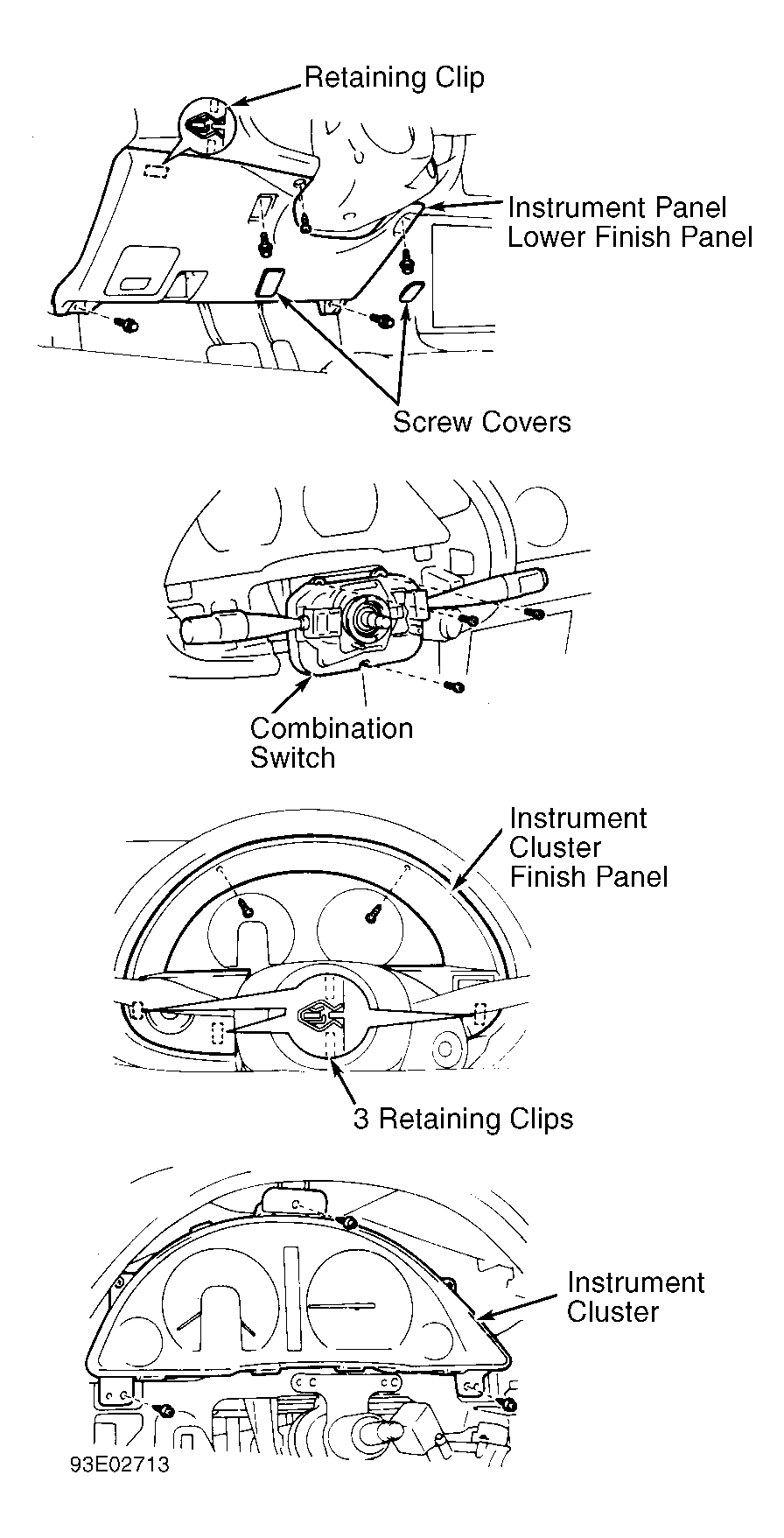

Fig 7: Removing Instrument Cluster (Paseo & Tercel)

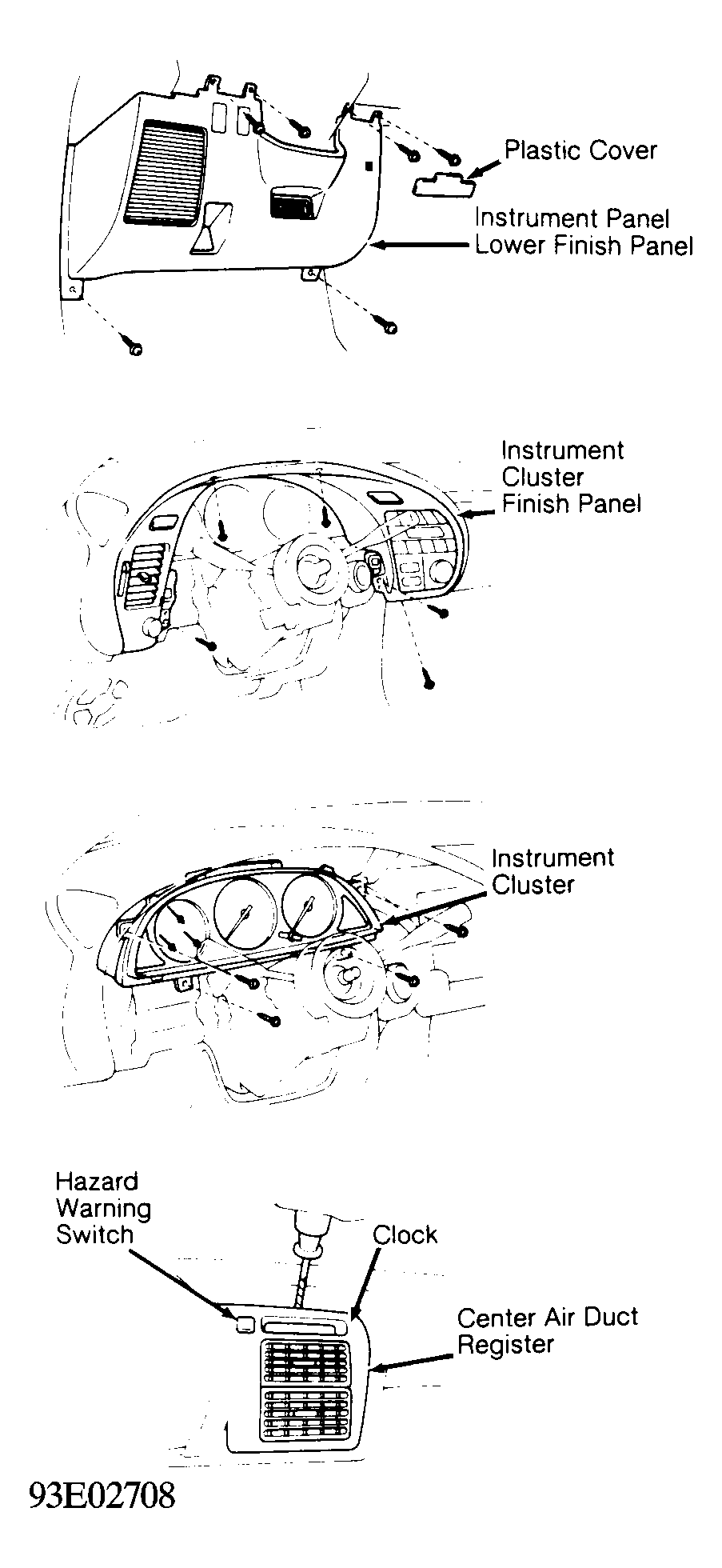

Fig 8: Removing Instrument Cluster (Pickup & 4Runnner)

Fig 9: Removing Instrument Cluster (Previa)

Fig 10: Removing Instrument Cluster (Supra)
