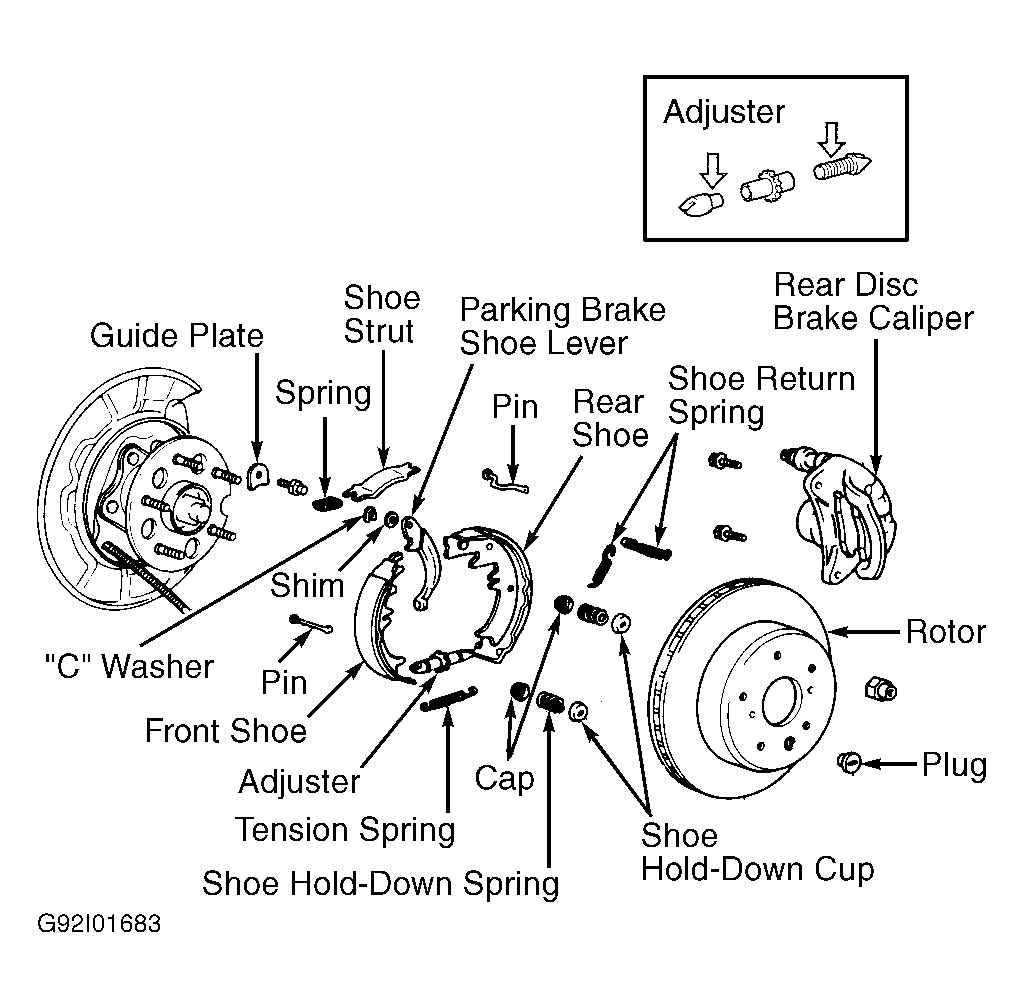

Installation (Camry & Celica With Rear Disc Brake)
To install, reverse removal procedure. Apply non-melting grease to sliding surfaces of shoes and adjuster threads. Align rotor to hub marks made during rear brake rotor removal procedure. Adjust parking brake shoe clearance. See REAR BRAKE SHOES . To complete installation, reverse removal procedure.
